90 22 02 SB
KNIPEX TwistCut®
• For the reliable and fast cutting of many plastic corrugated pipes with the universal capacity range from Ø 13 to 32 mm
• For corrugated plastic pipes with ridge widths of up to 2.7 mm
• No damage to the internal cables or pipes
• Separate even softer, flexible plastic corrugated pipes: Apply little pressure on the TwistCut® when cutting to avoid the corrugated pipe to be deformed
• Simple insertion, reliable and easy cutting without waste
• Precise cut without damage thanks to unique arrangement of the cutters with side guide
• Good accessibility thanks to slim design

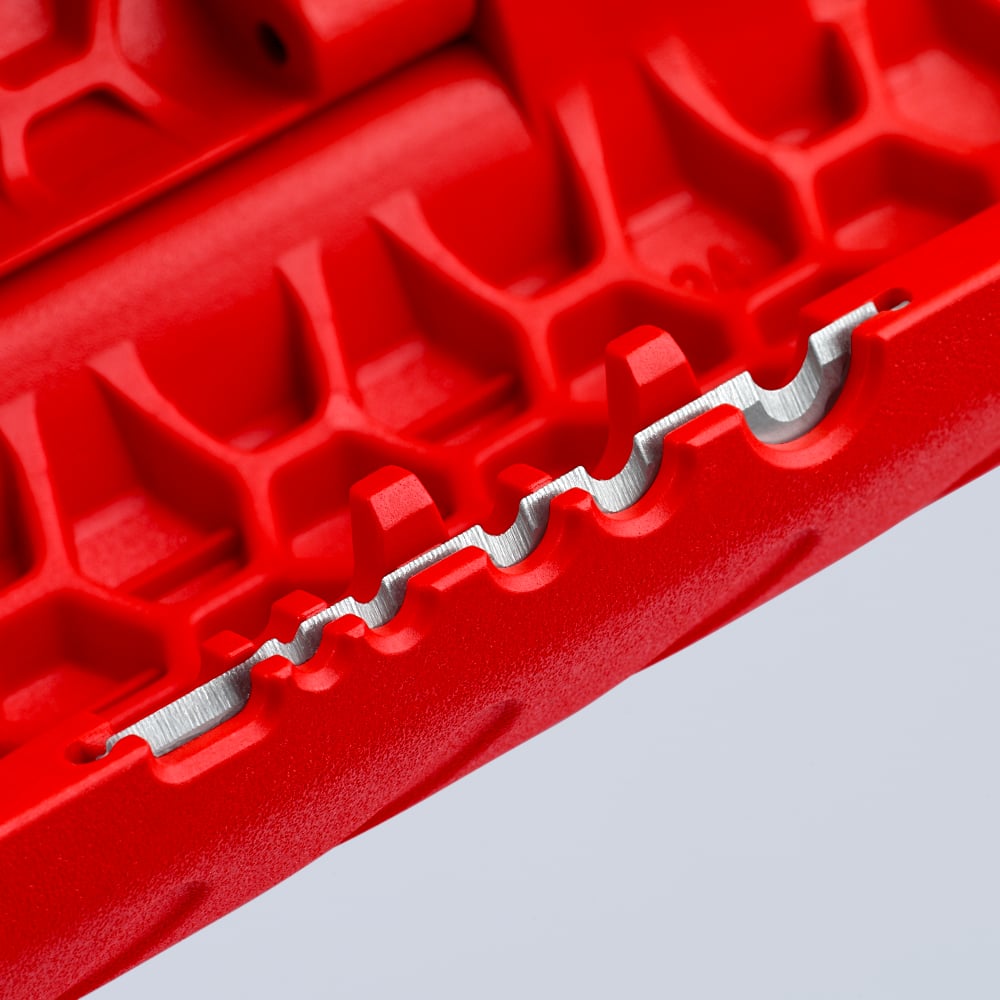

• With stripping blades for cross-sections 0.2 / 0.3 / 0.8 / 1.5 / 2.5 / 4.0 mm²
• Location ridges (patent pending) on the 1.5 and 2.5 mm² wire stripping blades for the fast insertion of cable
• Internal length scale for consistent stripping of cable, legible for both right and left handed users
Technical attributes
| Part No. | 90 22 02 SB |
|---|---|
| EAN | 4003773082293 |
| Weight | 47 g |
| Dimensions | 100 x 86 x 38 mm |
| REACH compliant | contains SVHC |
| RoHS compliant | not applicable |
| Cutting capacities (diameter) | Ø 13 – 32 mm |
| Stripping capacity conductors and strands | 04 mm² |
