90 23 02 BK
KNIPEX DPT50

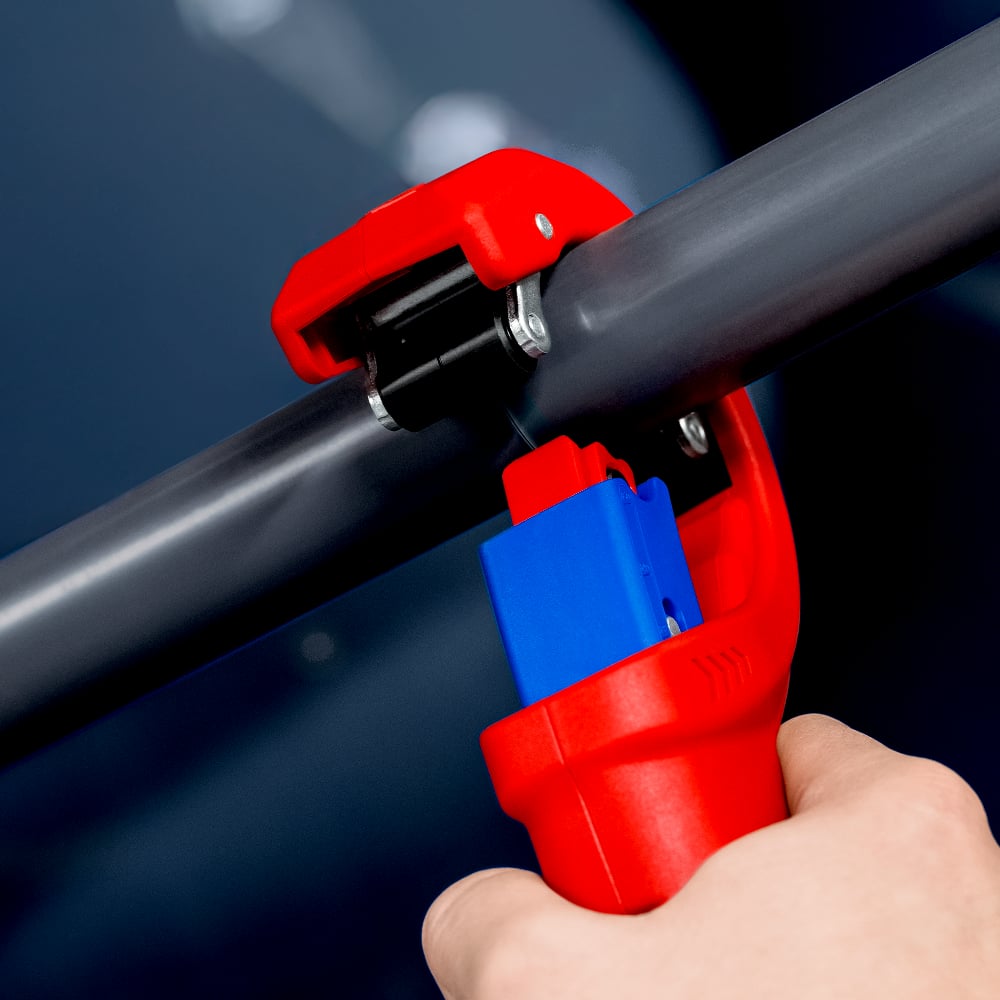

• Perfect helper for plumbing and industrial: conveniently cut and directly chamfer plastic pipes of 32 / 40 / 50 mm in a single step
• Smooth cutting: no readjustment, no deburring, no breaking of brittle pipes, reduced risk of leaky joints
• Optimum pipe guidance and easy cutting due to self-adjusting rollers with plain bearings
• Cuts PP, PVC and many other plastic pipes with diameters of 32, 40 and 50 mm
• Cuts PVC and PP pipes with wall thicknesses of 2.5 – 3.5 mm

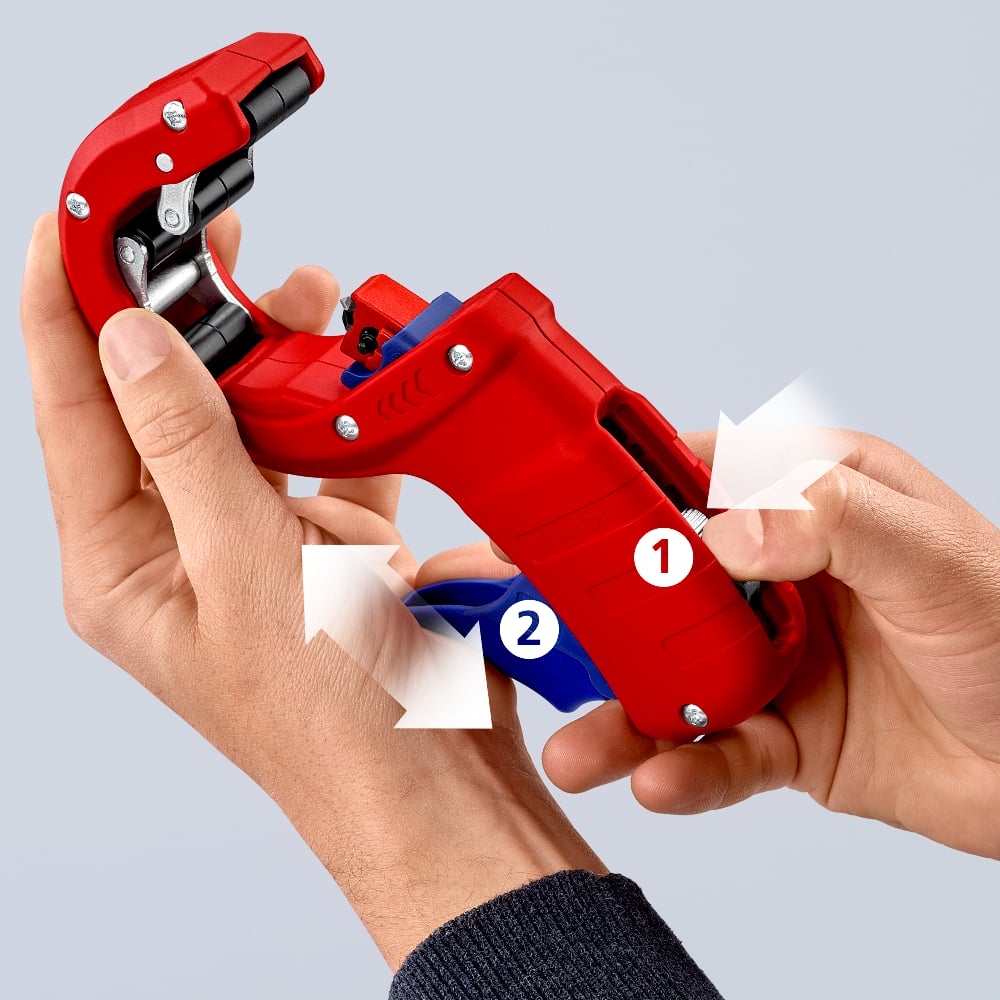

• Tool-free reversible blade body made from high-quality ball-bearing steel

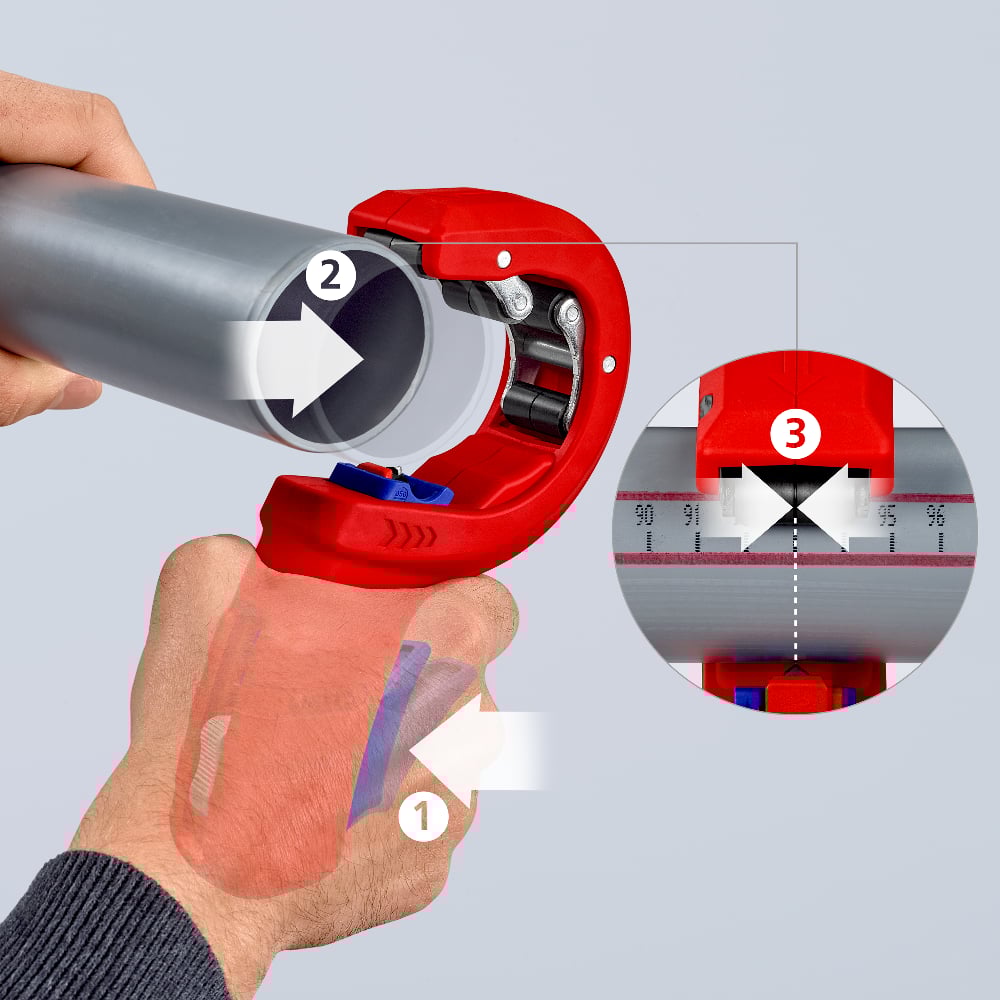

• Precise positioning thanks to a clear view of the cutting point
• Spring-loaded cutting blade: no unnecessary adjustment needed during cutting
• Spare blade in the tool: reversible blade with twin cutting edge for reversing when worn
• Trimming or fine cutting is possible from a section length of around 10 mm
• Durable and robust – tool body made of glass-fibre reinforced plastic
• The automatically applied chamfer ensures even distribution of the adhesive
• For waste water pipes in accordance with DIN 1453-1, 1329-1, 1519-1

Technical attributes

Part No. 90 23 02 BK
EAN 4003773092186
Weight 294 g
Dimensions 202 x 91 x 40 mm
REACH compliant does not contain SVHC
RoHS compliant not applicable
