78 03 140
Electronic Super Knips® XL
• Additional 15 mm longer version: greater stability, greater cutting performance
• For ultra fine cutting work, e.g. in electronics and fine mechanics

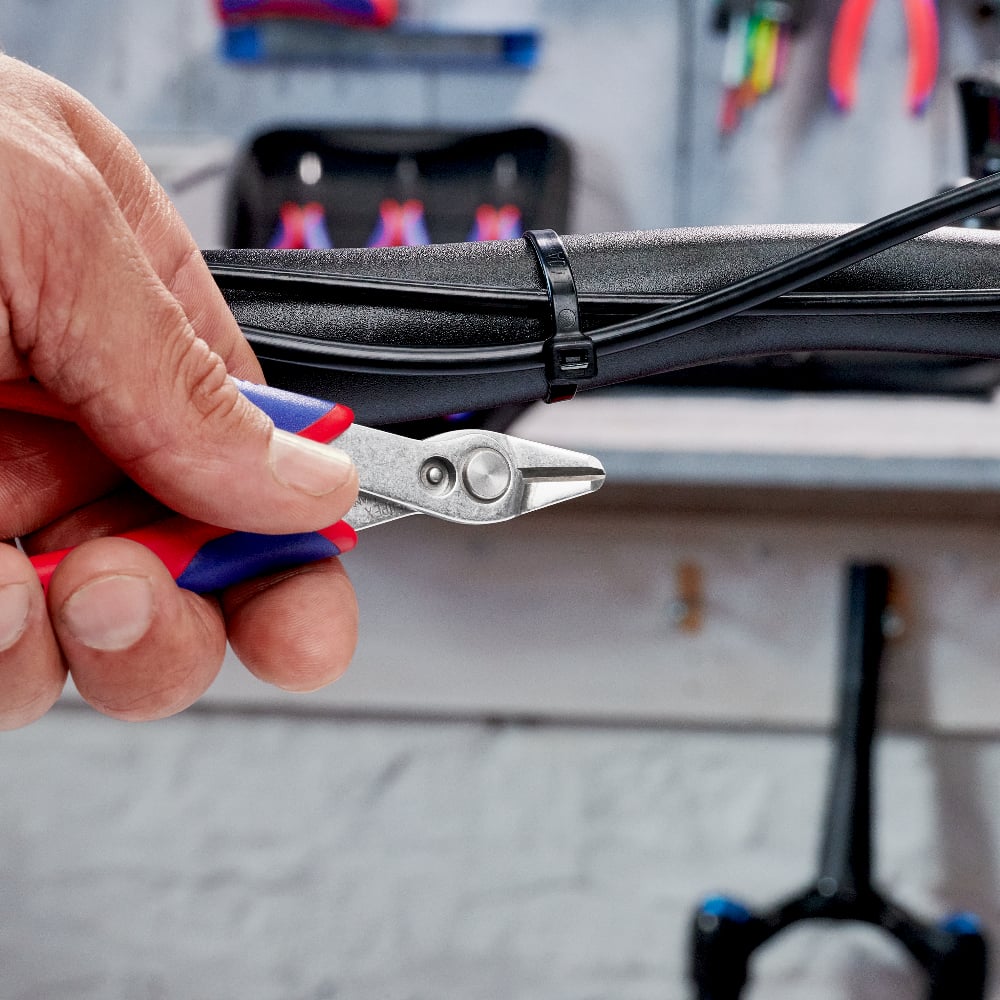

• In particular for cutting cable ties to length
• Ground, very sharp cutting edges without bevel
• Shear cut with controlled micro cutting edge offset for the most precise cutting of even the thinnest of wires and for a long service life
• Precisely shaped tips cut wires close to a surface from Ø 0.2 mm
• Joint with stainless steel rivet
• Extremely smooth movement for minimum operator fatigue
• With opening spring and opening limiter
• Durable and stainless, made of INOX surgical steel
• Cutting edge hardness approx. 54 HRC
Technical attributes
| Part No. | 78 03 140 |
|---|---|
| EAN | 4003773081647 |
| Head | polished |
| Handles | with multi-component handles |
| Weight | 85 g |
| Dimensions | 140 x 50 x 15 mm |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities medium hard wire (diameter) | Ø 1.2 mm |
| Cutting capacities soft wire (diameter) | Ø 02 mm |
| Jaw length (B) | 12.3 mm |
| Jaw thickness (joint) (D) | 9.2 mm |
| Head width (A) | 15.7 mm |
