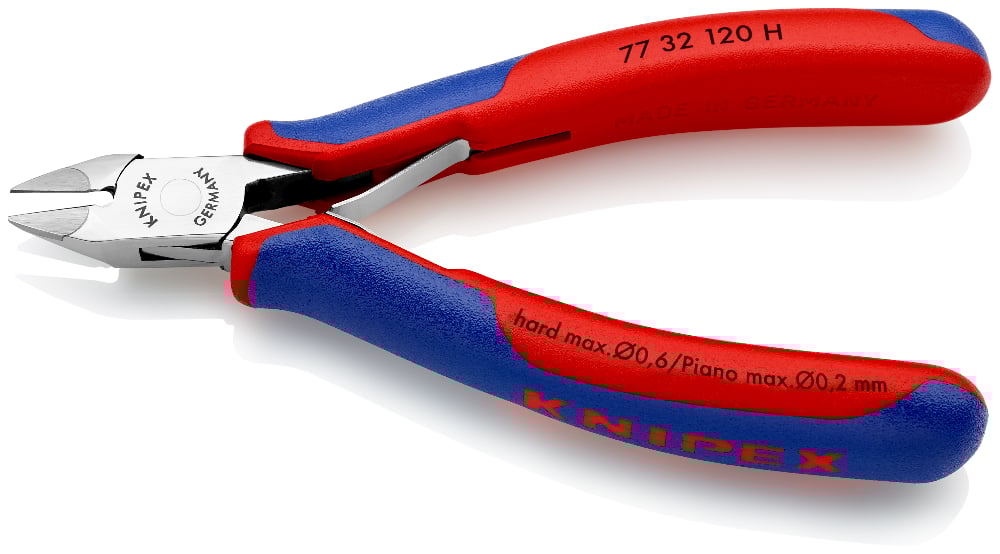

77 32 120 H
Electronics Diagonal Cutter with carbide cutting edges

• For extreme demands on cutting pliers caused by hard or tough materials, e.g. piano, nickel, tungsten and diode wire, such as those used more frequently in the electronics and aerospace industries
• Always the right cutting tool, even with the hardest material
• Precision carbide metal cutting edges soldered into forged blanks
• Sturdy, zero-backlash box joint
• Hardness of the carbide cutting edges 80 – 83 HRC
• Pliers with carbide metal cutting edges have a substantially longer service life than such with conventional cutting edges
• Constantly reliable cutting results due to the avoidance of cutter deformations caused by overloading
• High cost saving due to longer service life of the pliers
• Pointed head with chamfer
• With small bevel

Technical attributes

Part No. 77 32 120 H
EAN 4003773075790
Head mirror polished
Handles with multi-component handles
Weight 80 g
Dimensions 120 x 50 x 19 mm
Standard DIN ISO 9654
REACH compliant does not contain SVHC
RoHS compliant not applicable
Cutting capacities medium hard wire (diameter) Ø 1.0 mm
Cutting capacities hard wire (diameter) Ø 0.6 mm
Cutting capacities piano wire (diameter) Ø 0.2 mm
Cutting capacities soft wire (diameter) Ø 1 mm
Jaw length (B) 14 mm
Jaw thickness (joint) (D) 7.5 mm
Head width (A) 11 mm
