77 01 115

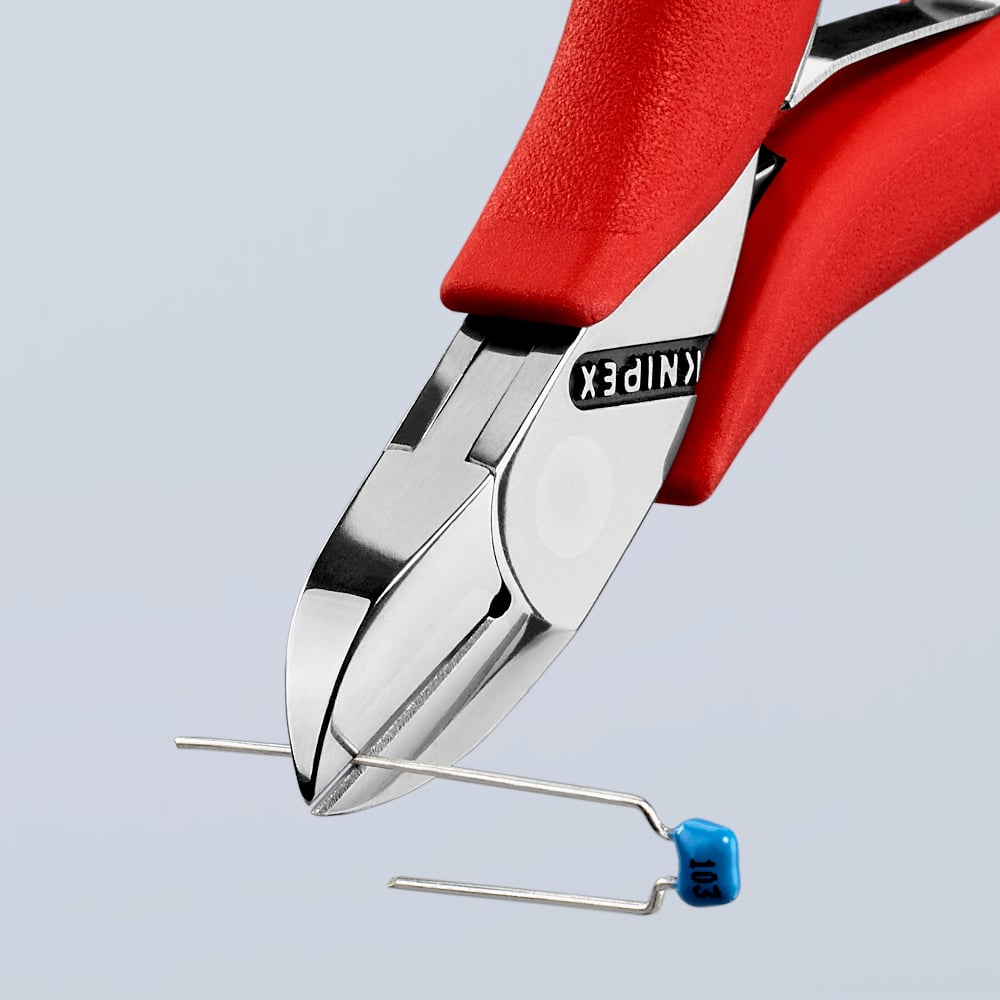

Electronics Diagonal Cutter

• Durable, load-optimised design with backlash-free box joint
• High, slim sleeves for fine and comfortable gripping between thumb and index finger
• Less physical effort due to very high transmission ratio
• Load-optimised for a more direct feel when working
• Low-friction double spring for smooth and even opening
• The mirror polish in combination with a fine oil film provides rust protection – no circuit faults caused by peeling chrome from plated tools
• Cutters additionally laser hardened, cutter hardness at least 62 HRC
• Round head, with small bevel

Technical attributes

Part No. 77 01 115
EAN 4003773018568
Head mirror polished
Handles with non-slip plastic grips
Weight 50 g
Dimensions 115 x 64 x 11 mm
Standard DIN ISO 9654
REACH compliant does not contain SVHC
RoHS compliant not applicable
Cutting capacities medium hard wire (diameter) Ø 1.2 mm
Cutting capacities hard wire (diameter) Ø 0.6 mm
Cutting capacities soft wire (diameter) Ø 01 mm
Jaw length (B) 14 mm
Jaw thickness (joint) (D) 7.5 mm
Head width (A) 11 mm
