64 01 115

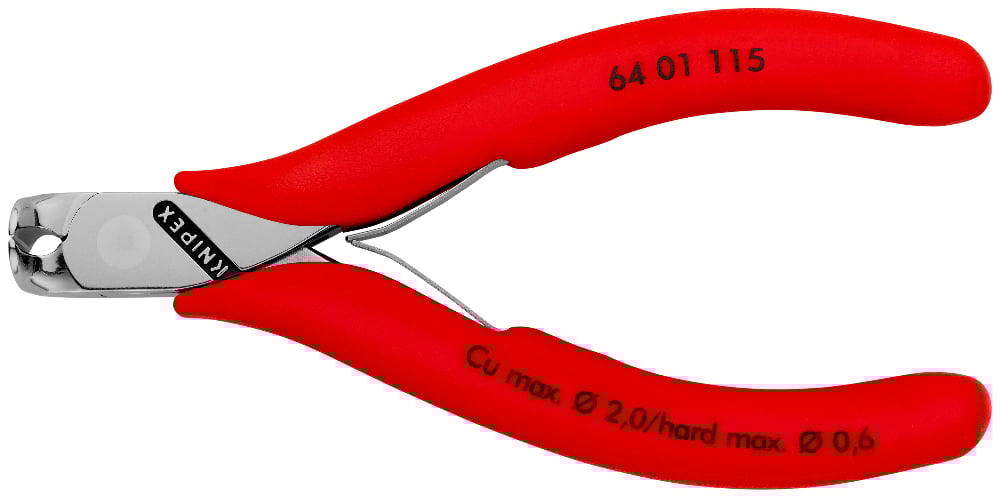

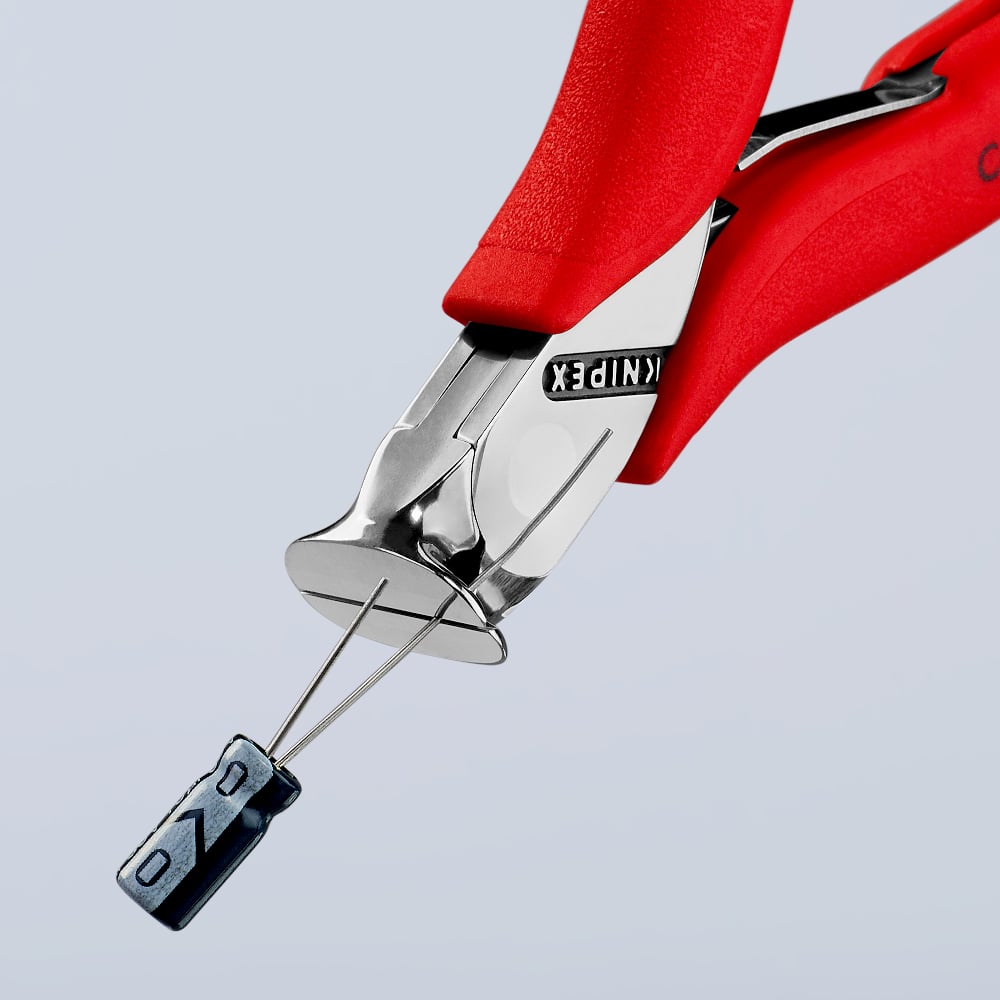

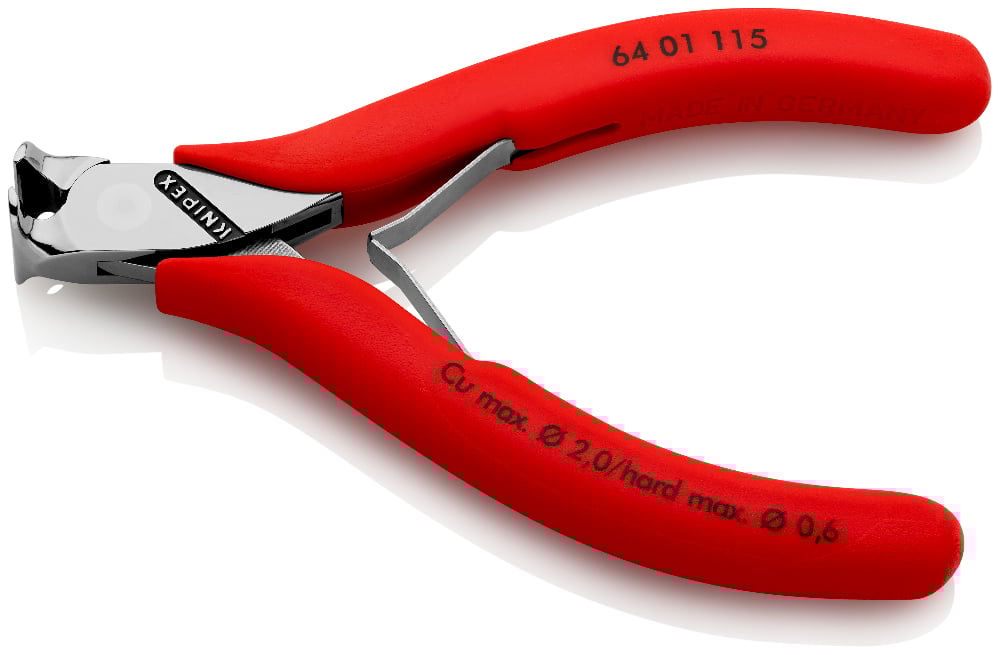

Electronics End Cutting Nipper
• Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
• Sturdy, zero backlash box joint
• Low-friction double spring for smooth and even opening
• The polish or mirror polish together with a fine film of oil offer effective rust protection – no circuit faults caused by peeling chrome from plated tools
• Cutting edges additionally laser-hardened, cutting edge hardness approx. 56 HRC
Technical attributes
| Part No. | 64 01 115 |
|---|---|
| EAN | 4003773017745 |
| Head | mirror polished |
| Handles | with non-slip plastic grips |
| Weight | 55 g |
| Dimensions | 115 x 63 x 13 mm |
| Standard | DIN ISO 9654 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities medium hard wire (diameter) | Ø 1.0 mm |
| Cutting capacities hard wire (diameter) | Ø 0.6 mm |
| Head width (A) | 11 mm |
| Jaw length (B) | 6 mm |
| Jaw thickness (joint) (D) | 7.5 mm |
| Cutting edge length mm (C) | 16 mm |
