12 42 195

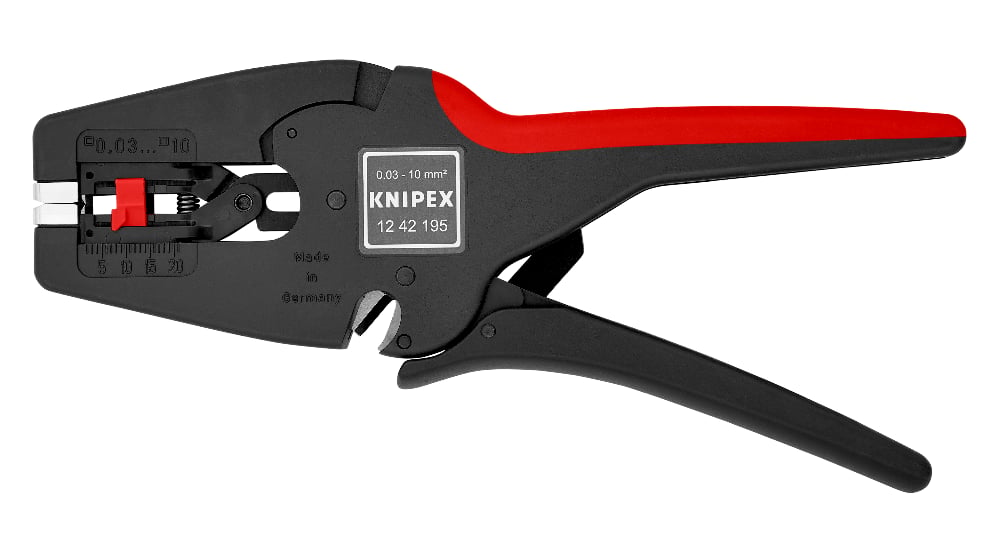

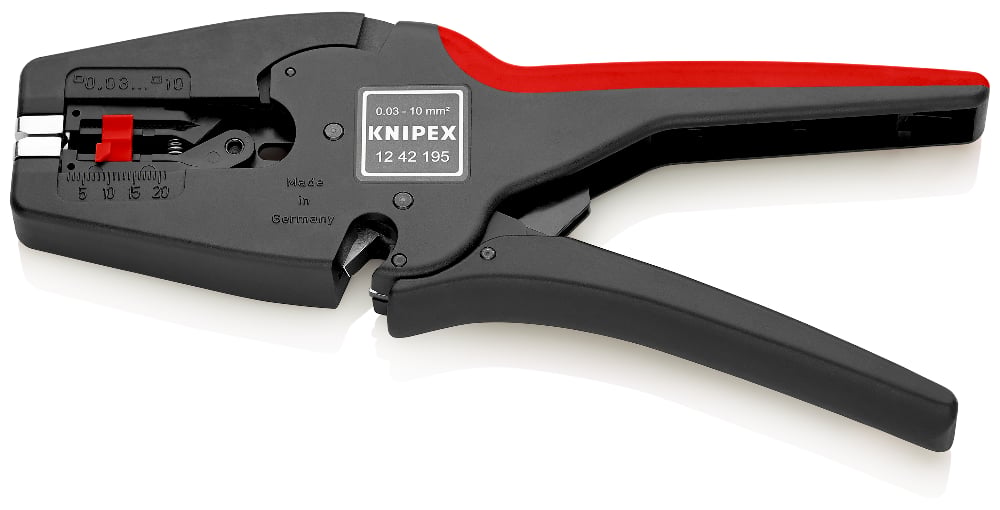

KNIPEX MultiStrip 10
• Stripping without re-adjustment from 0.03 to 10 mm² (only at constant temperatures)

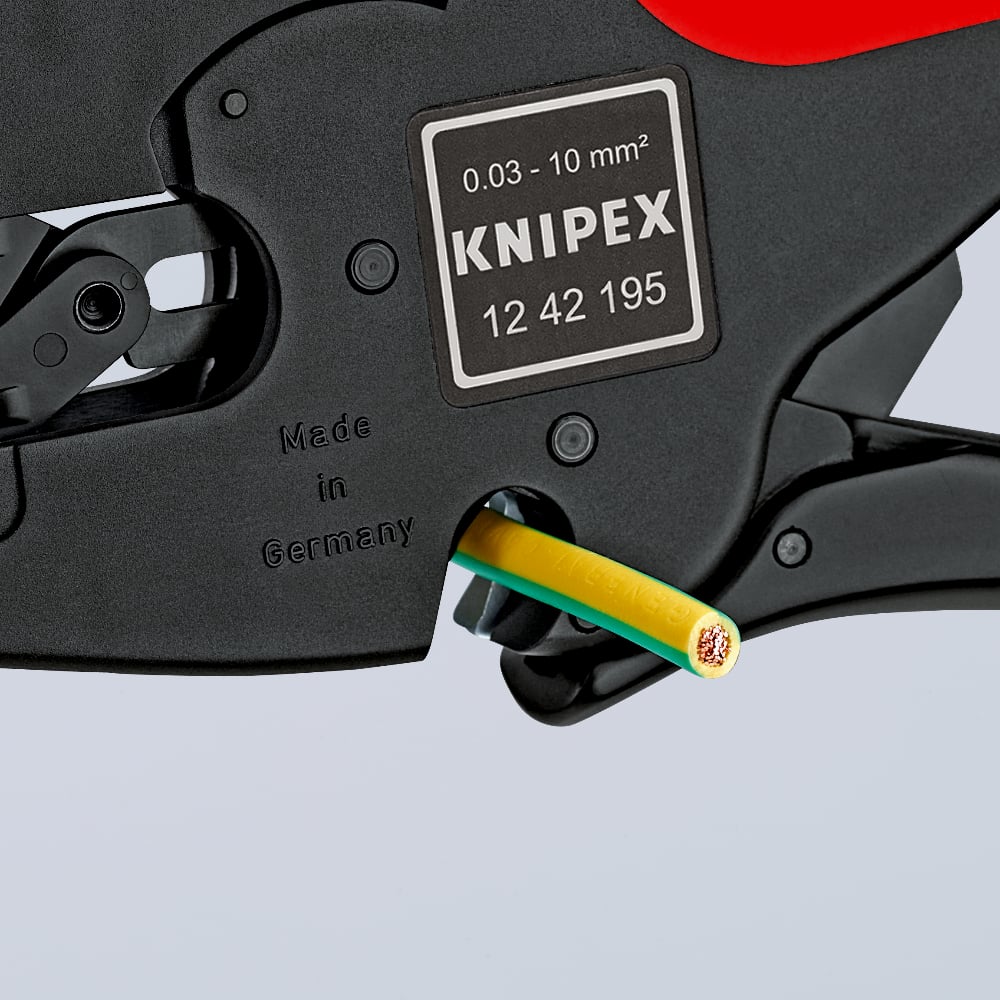

• Recessed wire cutter
• Recommended for industrial use due to long-term process reliability

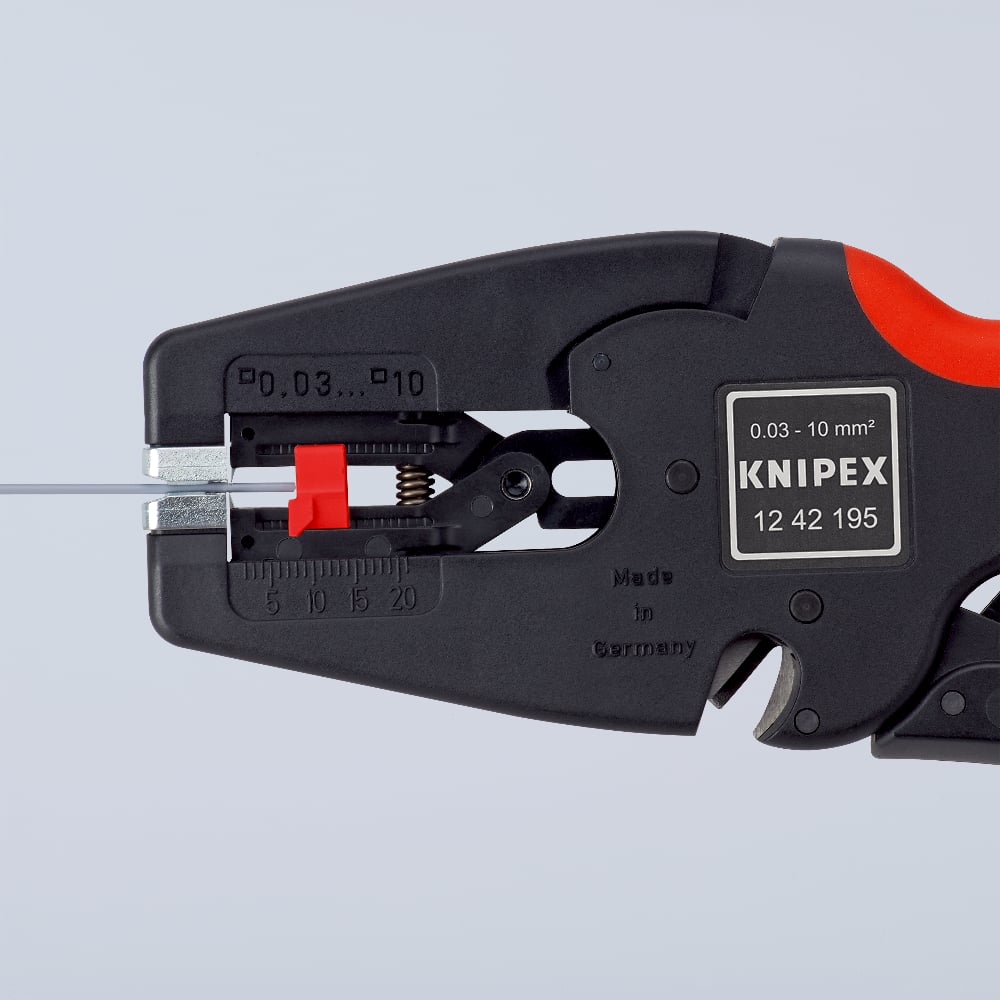

• Fully automatic adjustment to fine-stranded conductors with standard insulation throughout the entire capacity range from 0.03 to 10.0 mm²
• Universal blade geometry – robust and more durable
• Clean cut of copper and aluminum conductors fine-stranded up to 10 mm² (AWG 8), solid up to 6 mm² (AWG 10)
• No damage to the conductors

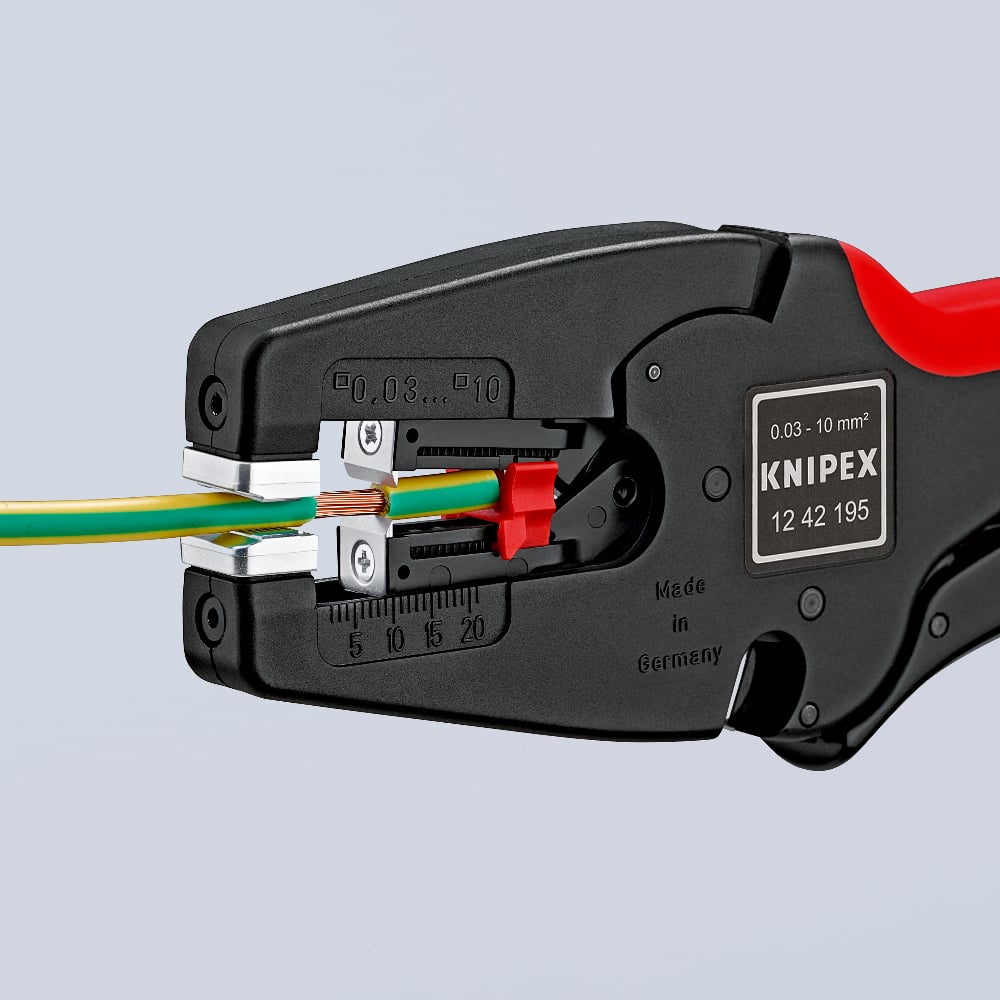

• The clamping jaws made of steel hold the cable in a way that prevents slipping without damaging the remaining insulation
• Particularly smooth-running mechanics and very low weight

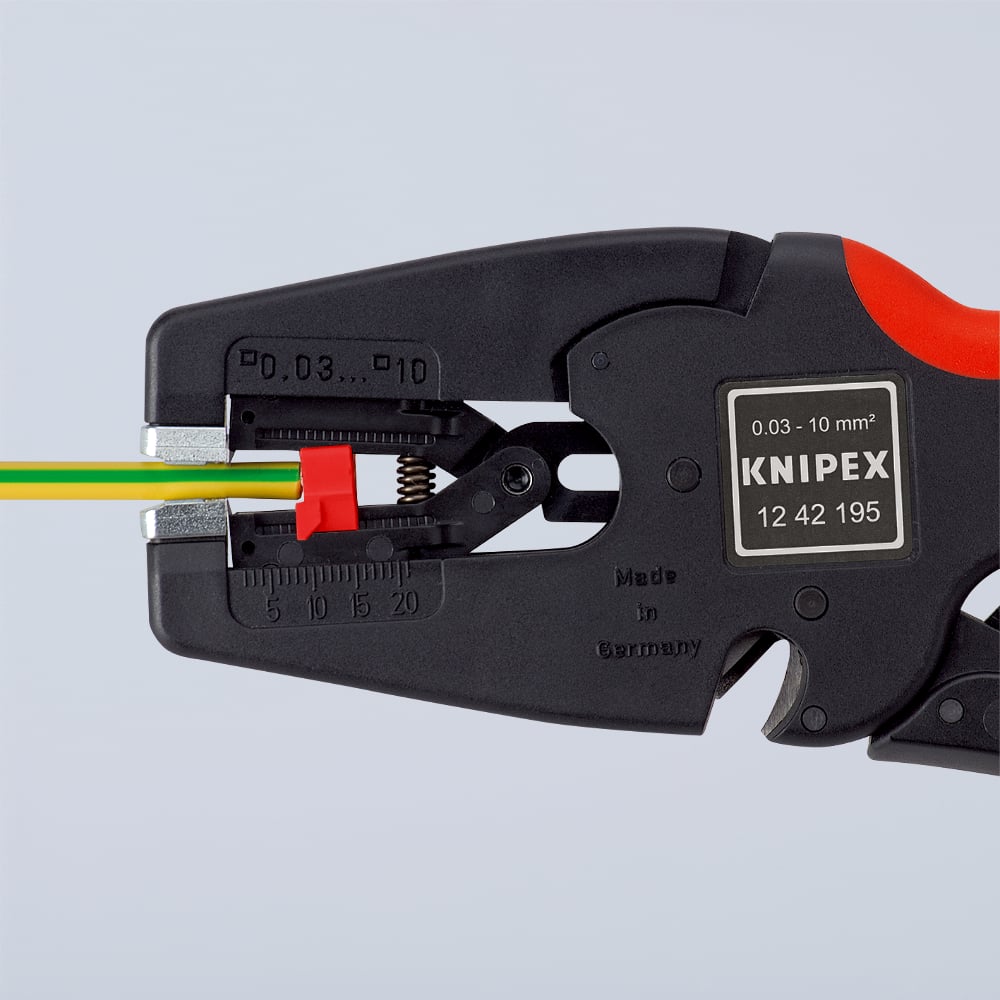

• Replaceable blades block and length stop
• Handle with soft-plastic zone for a steady grip
Technical attributes
| Part No. | 12 42 195 |
|---|---|
| EAN | 4003773054580 |
| Weight | 136 g |
| Dimensions | 195 x 112 x 18 mm |
| REACH compliant | contains SVHC |
| RoHS compliant | not applicable |
| Stripping capacities in square millimetres | 0.03 — 10.0 mm² |
| AWG | 32 — 8 |
