11 01 160

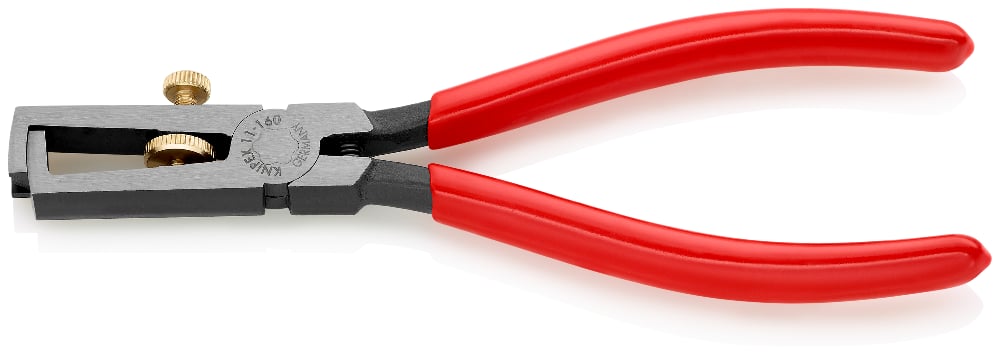

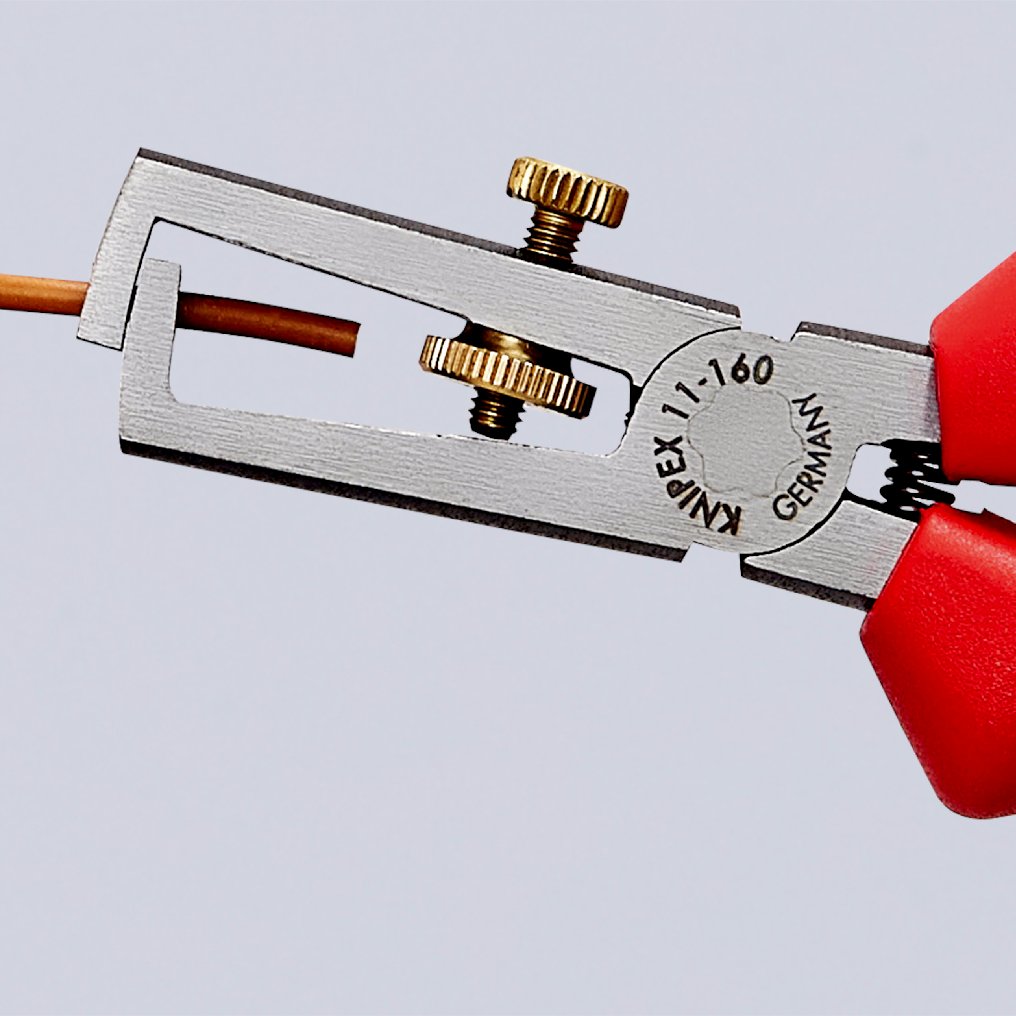

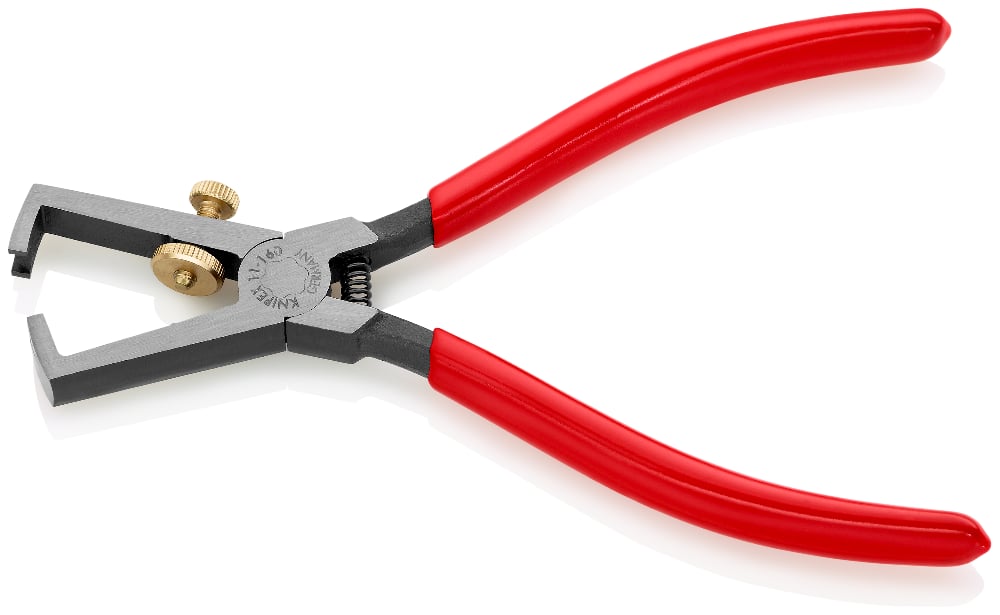

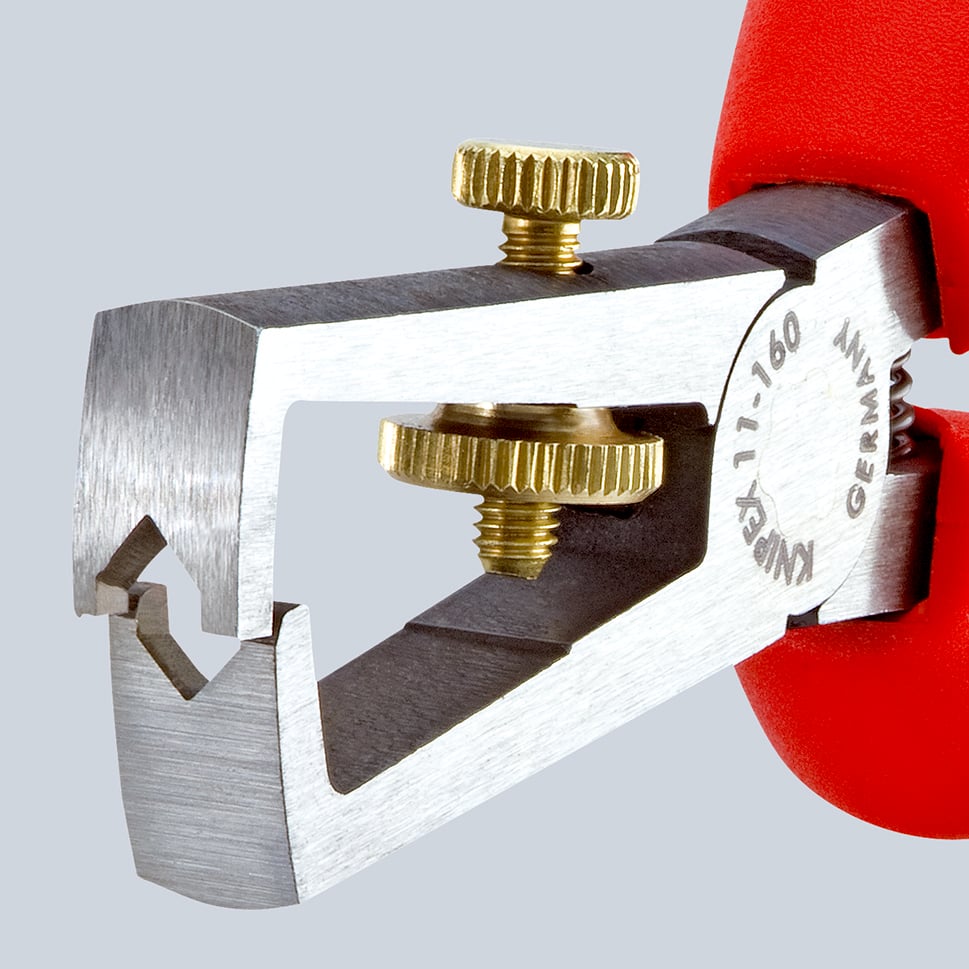

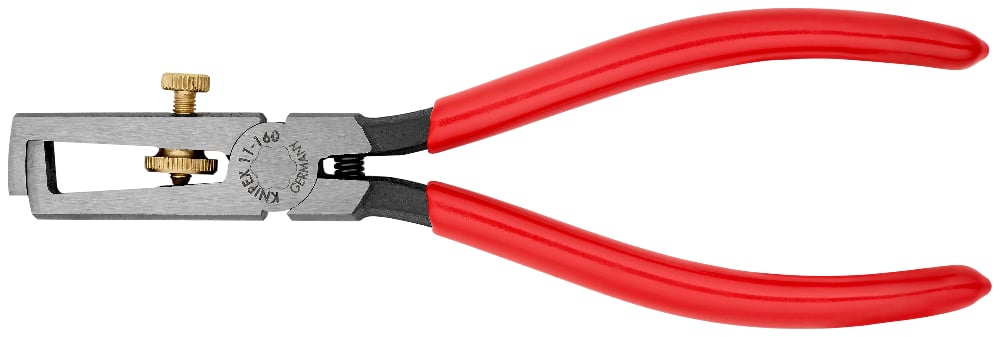

Insulation Stripper
• For single, multiple and fine stranded conductors with plastic or rubber insulation up to Ø 5 mm or 10 mm²
• Easy adjustment to the required diameter of solid or stranded wire with knurled screw and lock nut
Technical attributes
| Part No. | 11 01 160 |
|---|---|
| EAN | 4003773033868 |
| Pliers | black atramentized |
| Head | polished |
| Handles | with plastic coating |
| Weight | 131 g |
| Dimensions | 160 x 74 x 12 mm |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Stripping capacities in square millimetres | 010 mm² |
| Stripping capacities (diametre) | Ø 5.0 mm |
| AWG | 8 |
