97 91 04 V01

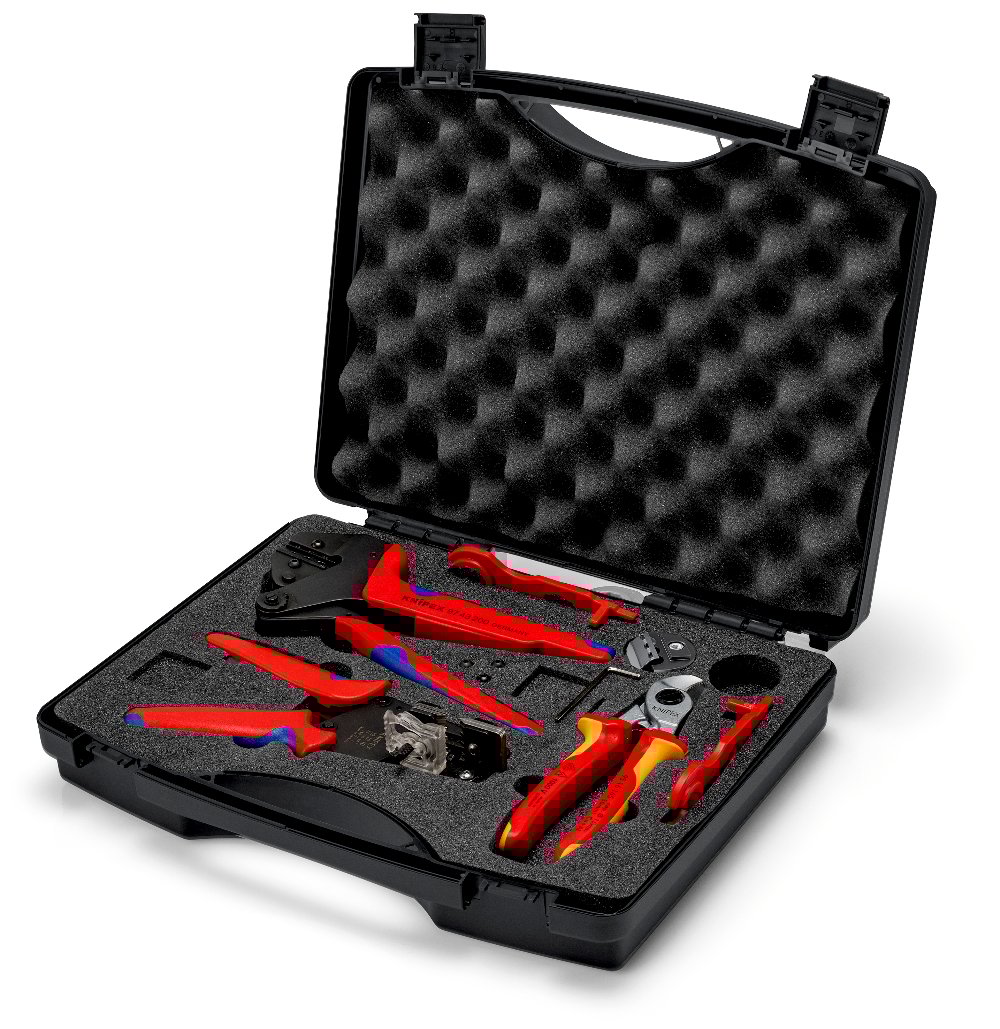

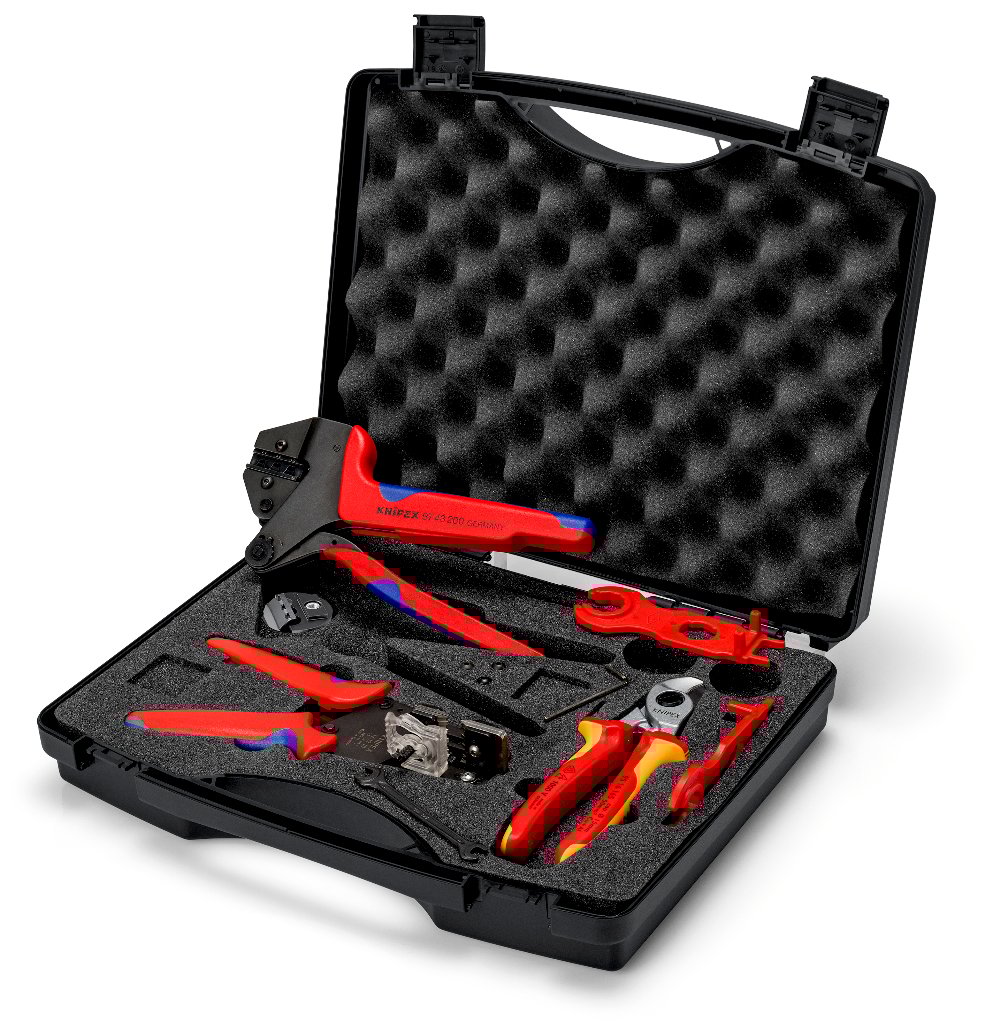

Tool set for photovoltaics

• Equipped with tools for photovoltaics
• With Crimp System Pliers 97 43 200 A for interchangeable crimping dies, crimping pressure is precisely set at the factory (calibrated)
• Cable shears 95 16 165 for copper cables up to Ø 15 mm
• Assembly tool (Allen key) for changing the crimping dies
• With set of mounting tools 97 49 66 2 to tighten cable glands of MC4® solar plugs and to open the locking of MC4® housing
• Foam insert with recesses for tools, 2 crimping dies and 2 locators
• Impact-resistant plastic case
• External dimensions: 345 x 80 x 280 mm (W x H x D)
• Crimping die 97 49 66 (2.5 / 4.0 /6.0 mm²) for solar connector MC4®, locator 97 49 66 1 and assembly tool set 97 49 66 2
• Precision stripping pliers 12 12 11 (1.5 / 2.5 / 4.0 / 6.0 mm²) with adapted blades for smaller stripping capacities
