97 78 180 T

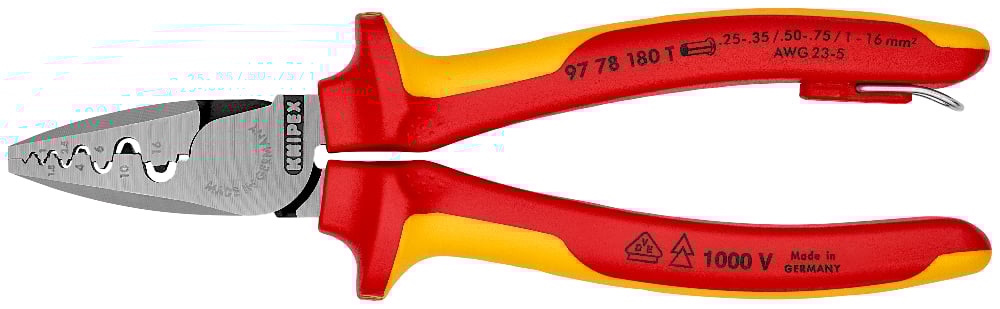

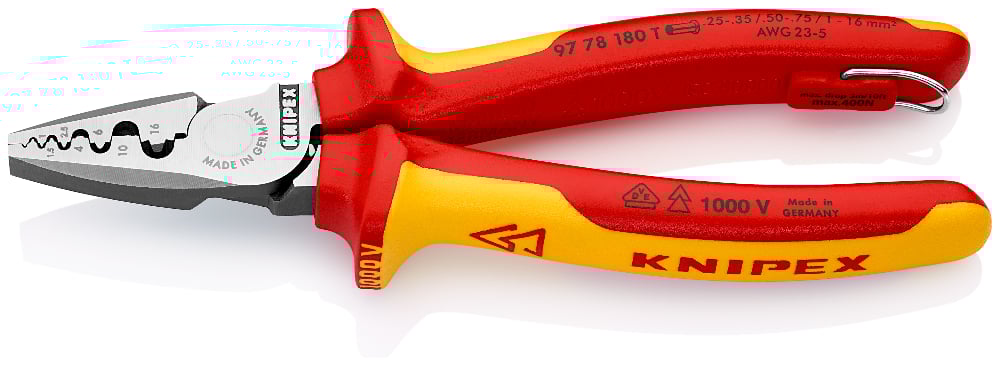

Crimping Pliers for wire ferrules
• Light and slim design
• Easy crimping due to optimised transmission ratio
• For crimping wire ferrules according to DIN 46228 parts 1 + 4 from 0.25 to 16 mm²
• Crimping in marked half-round dies for reliable connections between the sleeve and the conductor
• 9 particularly deep dies with conical side faces
• Pliers with integrated, insulated tether attachment point for a tool tether
Technical attributes
| Part No. | 97 78 180 T |
|---|---|
| EAN | 4003773081531 |
| Head | polished |
| Handles | insulated with multi-component grips, VDE-tested with integrated insulated tether attachment point for a tool tether |
| Weight | 260 g |
| Dimensions | 180 x 54 x 28 mm |
| Standard | DIN EN 60900 IEC 60900 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Application | Wire ferrules |
| Capacity in square millimetres | 0.25 — 16.0 mm² |
| Number of crimp profiles | 9 |
| AWG | 24 — 6 |
| Drop Protection System | yes |
| VDE tested | yes |
