97 59 65 2

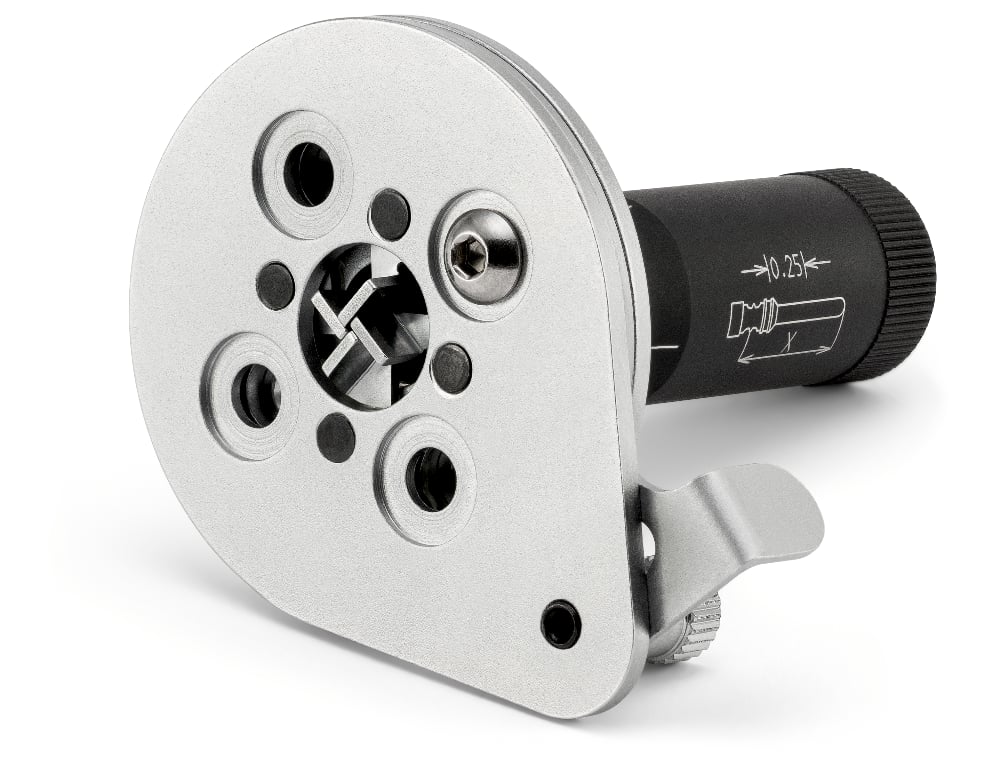

Universal Locator for 97 52 65 / 97 52 65 A / 97 52 65 DG / 97 52 65 DG A

• Chrome vanadium high grade electric steel, oil hardened and tempered
• Universally adjustable locator for the repeatable exact alignment of turned contacts in crimping pliers

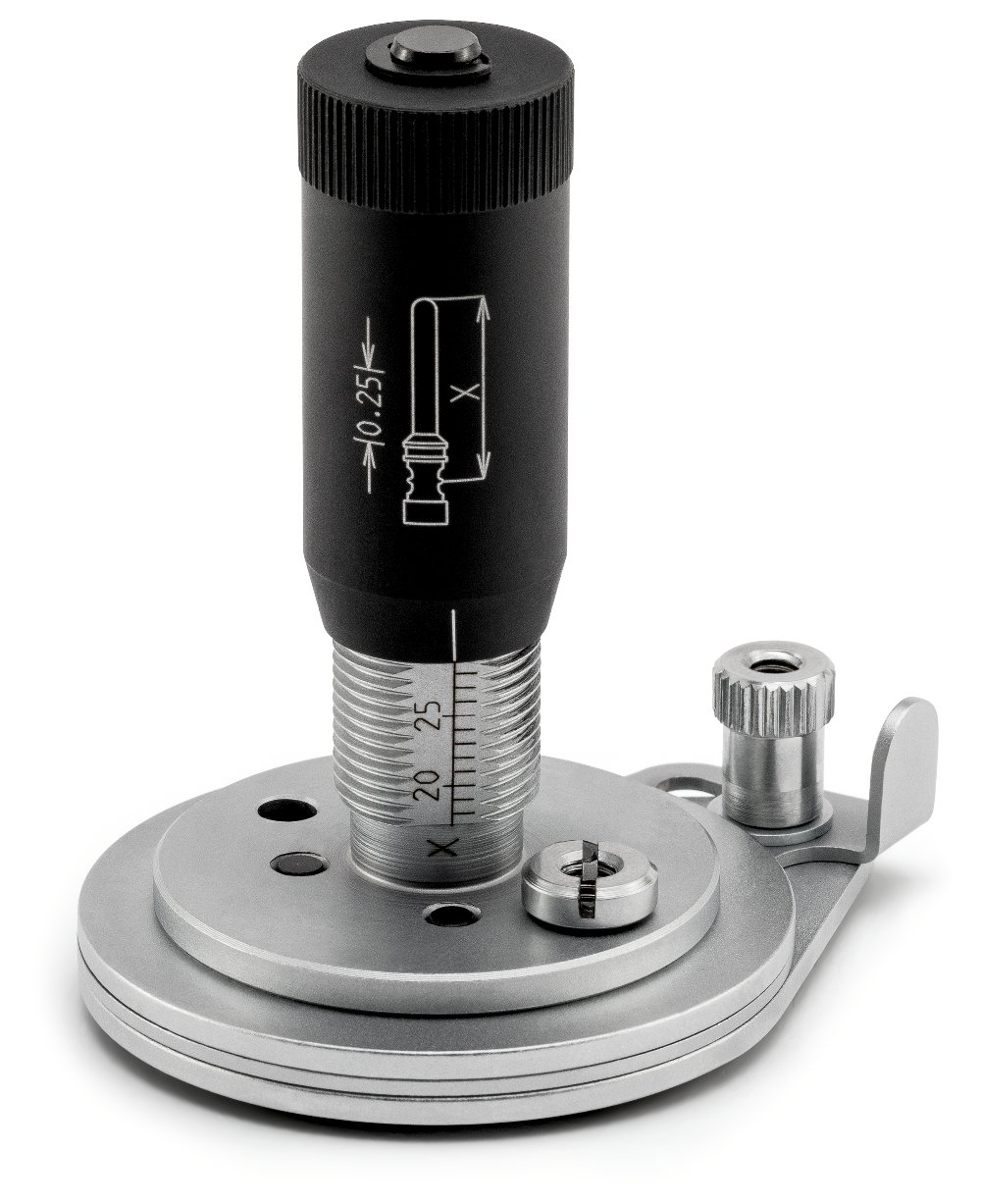

• Individually adjustable to contacts in diameter and depth
• Centric alignment of contacts guaranteed
• Ideal for small batch series, prototypes and contacts with different dimensions

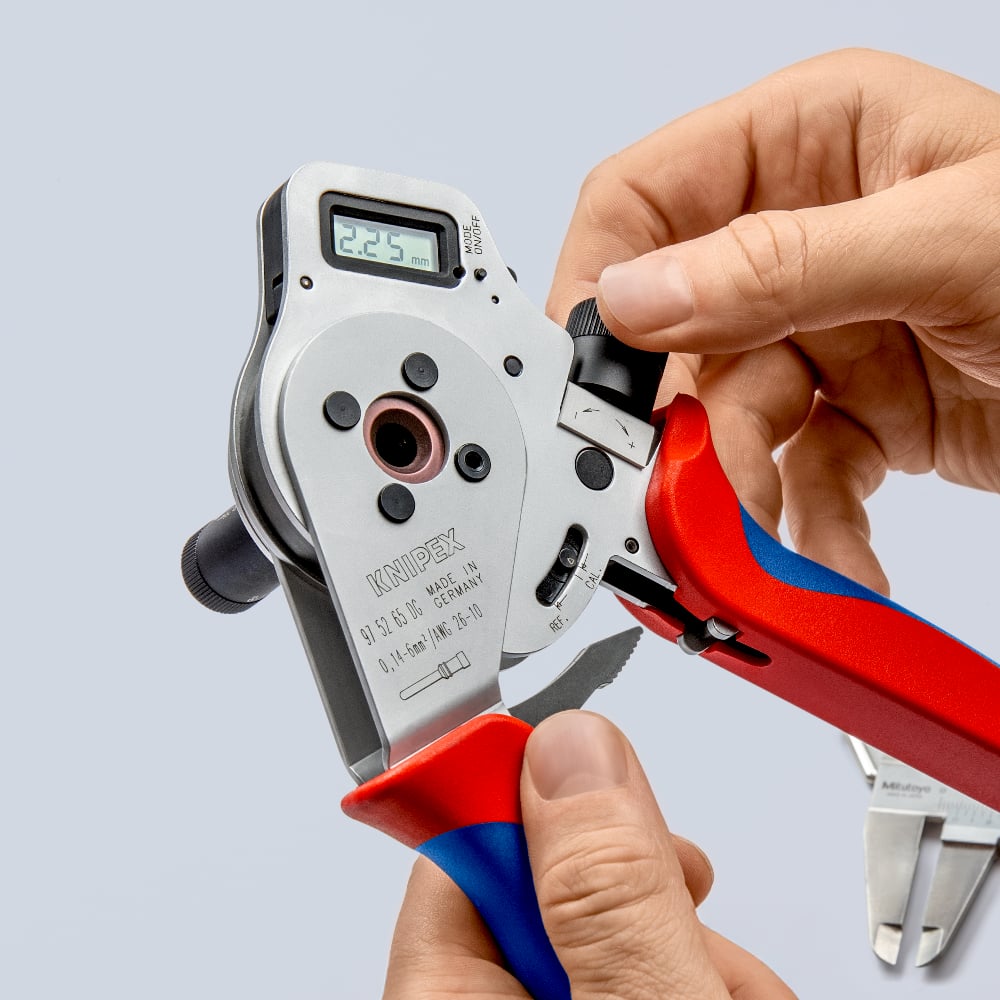

• Easy and flexible use on the crimping pliers
• Cable cross-section: 0.14 – 6 mm²
• Contact diameter: Ø 1 – 8 mm
• Contact length: 20 – 45 mm
