97 53 19
KNIPEX Twistor® T

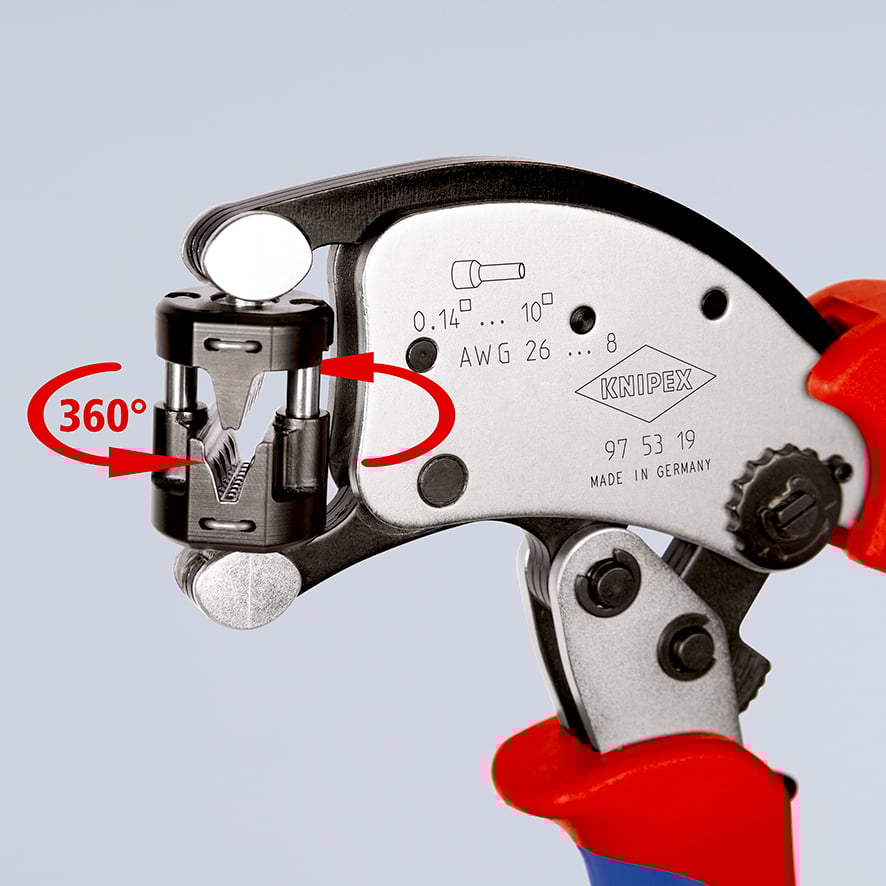

• Crimp head can be rotated 360°, with 8 locking positions
• Wire ferrules can be crimped from almost any working position
• Trapezial crimp profile, high capacity range from 0.14 to 10 mm²
• Crimping pliers adjust automatically to different cross-sections
• Crimp opening accessible from both sides, a length of up to 18 mm can be crimped in one operation, extra-long wire ferrules can be fed in
• Crimping of Twin wire ferrules up to 2 x 6 mm² possible
• Repetitive, high crimping quality due to ratchet mechanism (unlockable)
• Light and handy tool, manual force reinforced by toggle lever mechanism

Technical attributes

Part No. 97 53 19
EAN 4003773088097
Pliers chrome-plated
Head chrome-plated
Handles with multi-component handles
Weight 486 g
Dimensions 200 x 80 x 26 mm
REACH compliant contains SVHC
RoHS compliant not applicable
Application Wire ferrules
Capacity in square millimetres 0.14 — 10 mm²
AWG 26 — 8
Number of crimp profiles 1
