97 53 18

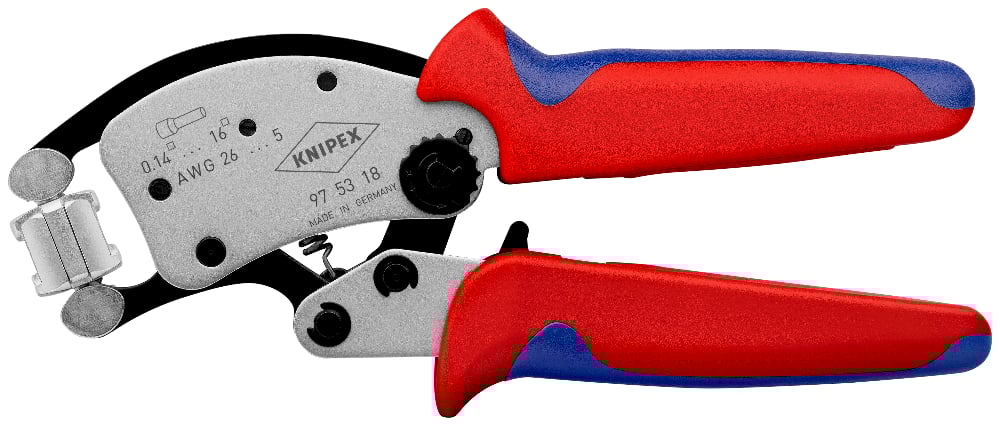

KNIPEX Twistor16®

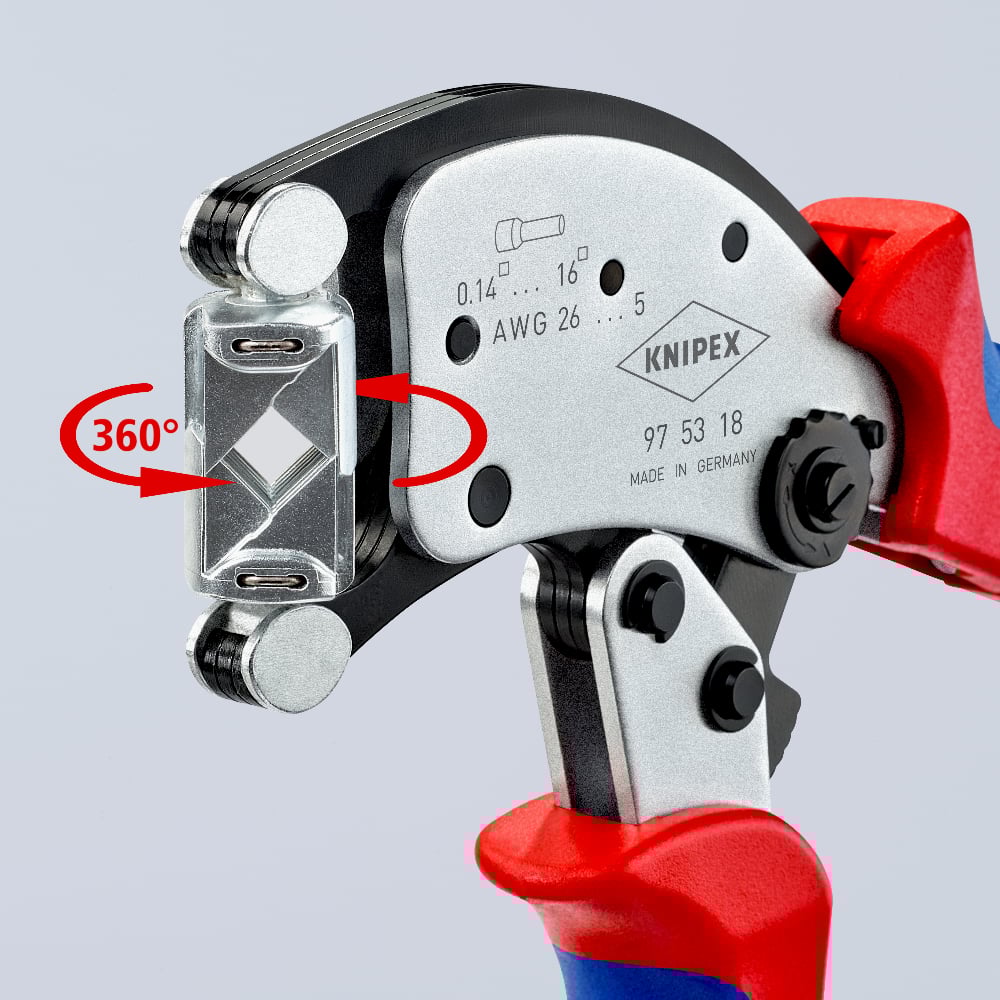

• Crimp head can be rotated 360°, with 8 locking positions
• Square crimp profile, high capacity range from 0.14 to 16 mm²

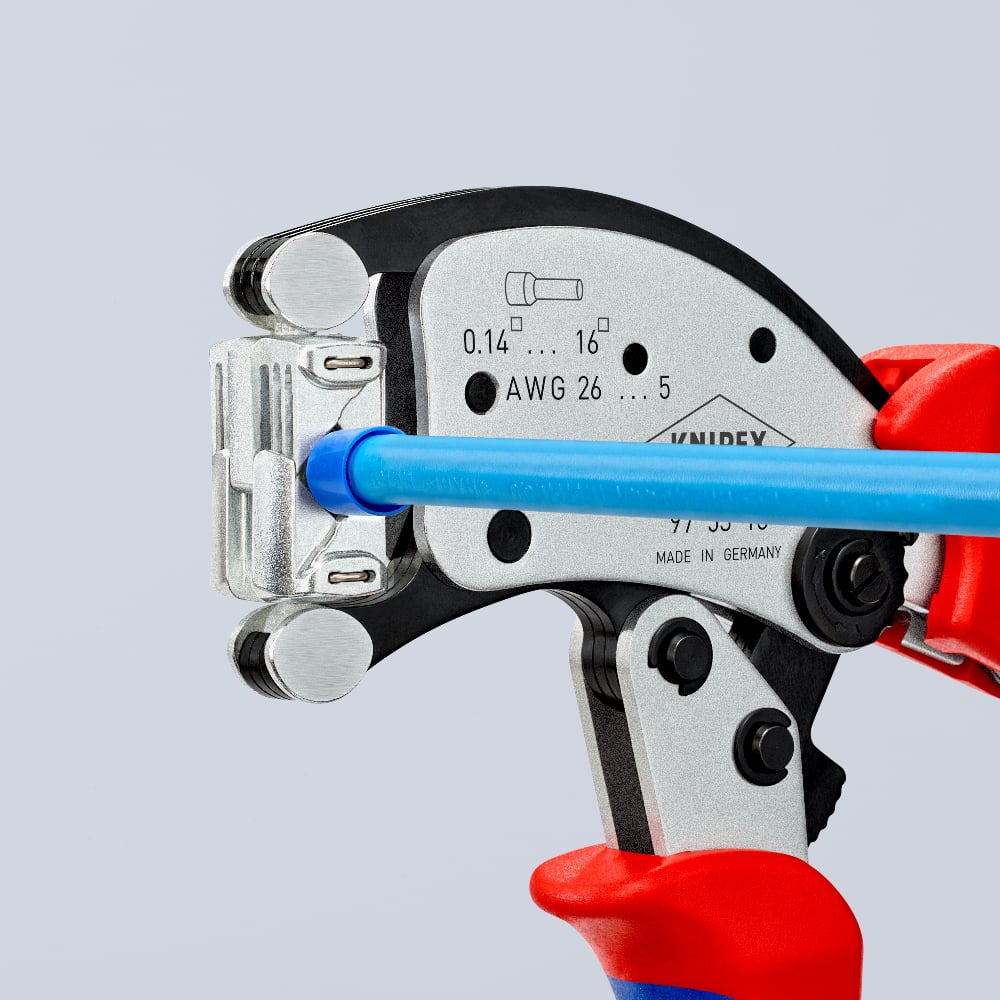

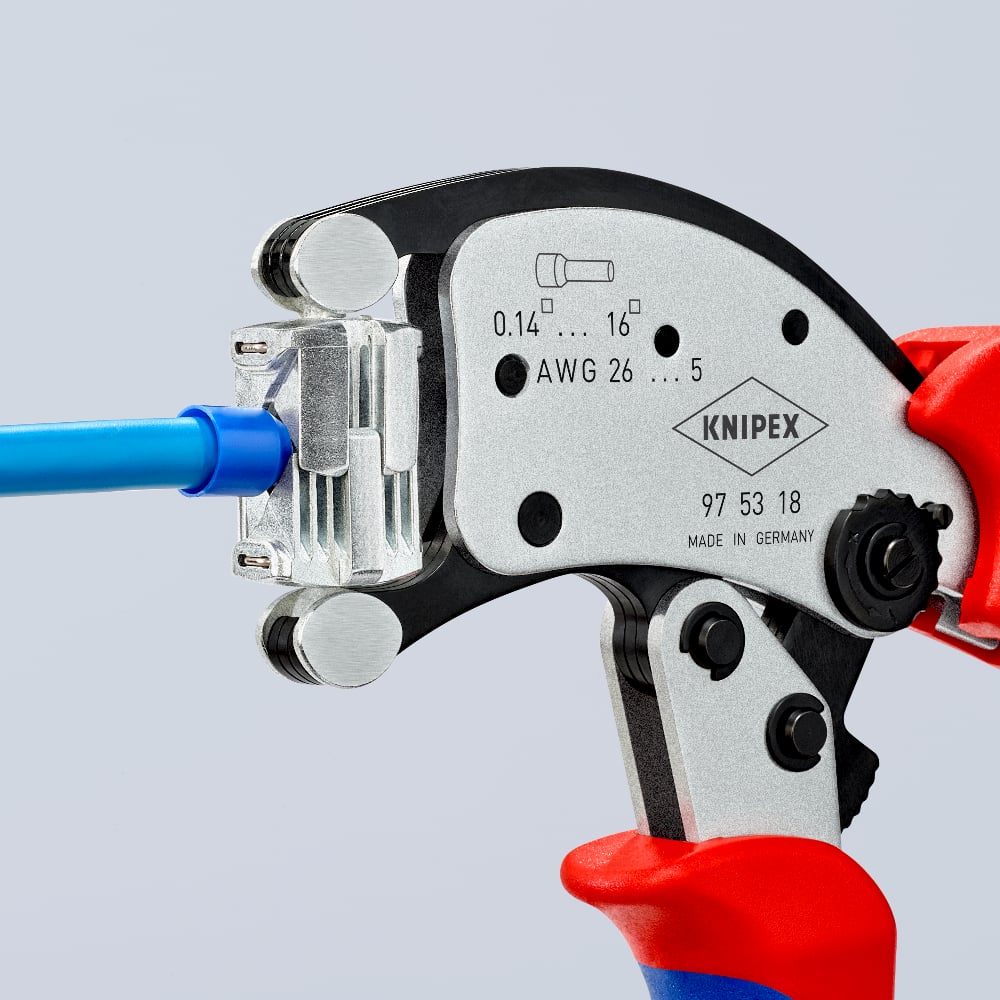

• Wire ferrules can be crimped from almost any working position
• Crimping pliers adjust automatically to different cross-sections
• Crimp opening accessible from both sides, extra-long wire ferrules can be fed in
• Crimping of Twin wire ferrules up to 2 x 6 mm² possible
• Repetitive, high crimping quality due to ratchet mechanism (unlockable)
• Light and handy tool, manual force reinforced by toggle lever mechanism
Technical attributes
| Part No. | 97 53 18 |
|---|---|
| EAN | 4003773082729 |
| Pliers | chrome-plated |
| Head | chrome-plated |
| Handles | with multi-component handles |
| Weight | 478 g |
| Dimensions | 200 x 80 x 26 mm |
| REACH compliant | contains SVHC |
| RoHS compliant | not applicable |
| Application | Wire ferrules |
| Capacity in square millimetres | 0.14 — 16 mm² |
| AWG | 26 — 6 |
| Number of crimp profiles | 1 |
