97 52 65 DG A

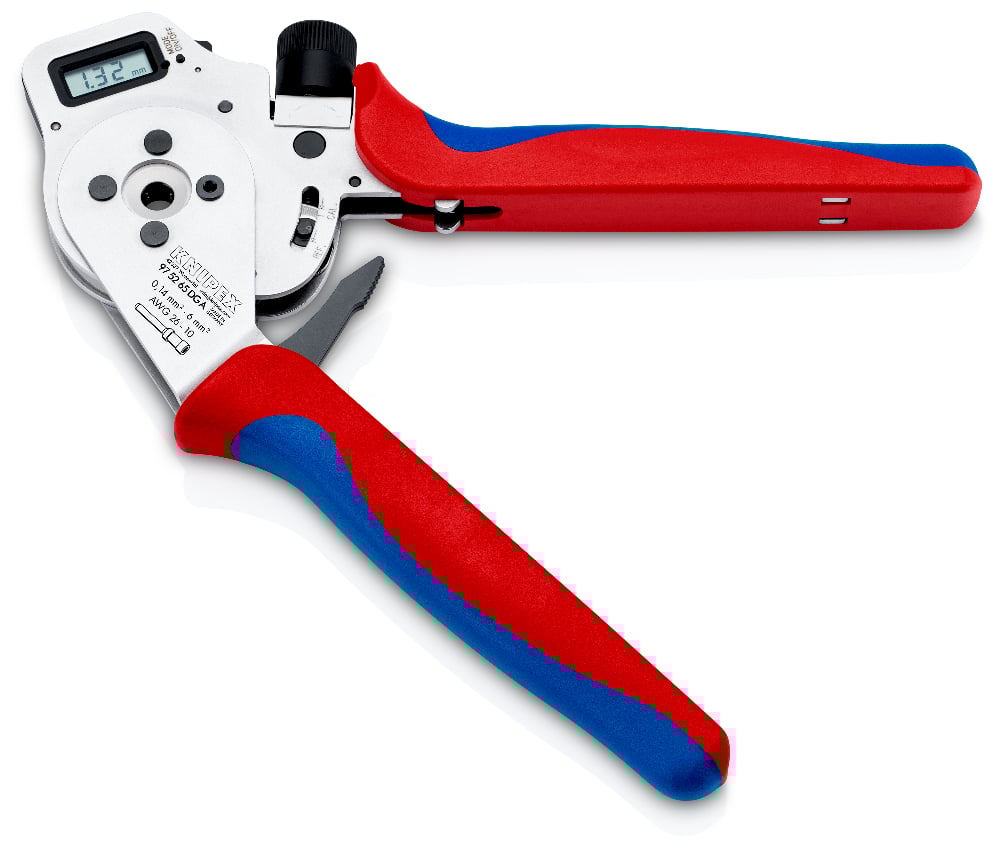

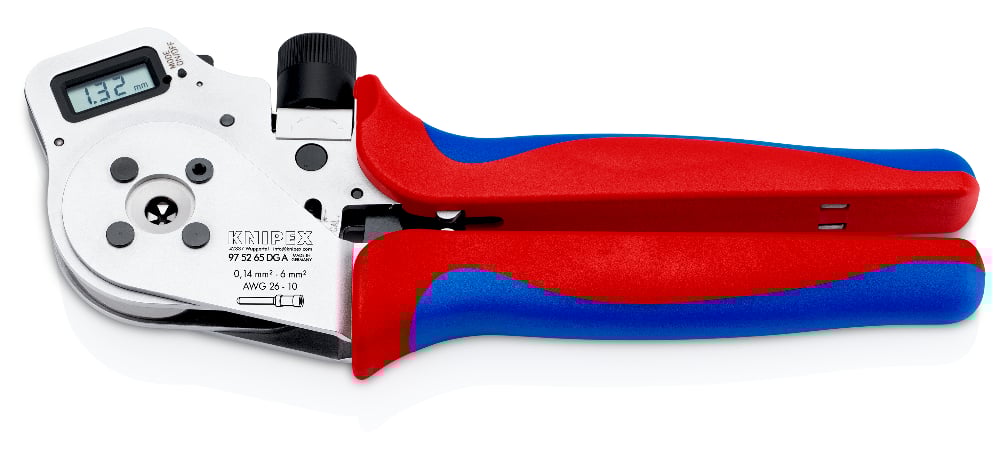

Four-Mandrel Crimping Pliers for turned contacts

• Basic pliers without locator for crimping turned pin and socket contacts from various contact manufacturers, for cable cross-sections from 0.14 to 6 mm²
• Crimp mandrel feed adjustable in increments of 0.01 mm and digitally readable; setting in mm, inch or comparable selector settings according to MIL standard
• Electronic wear monitoring (patented) with warning function
• Process-secure and consistently high crimp quality thanks to IEC 60352-compliant trigger lock (positive lock, can be unlocked)
• With recalibration function; check basic setting using the enclosed test pin

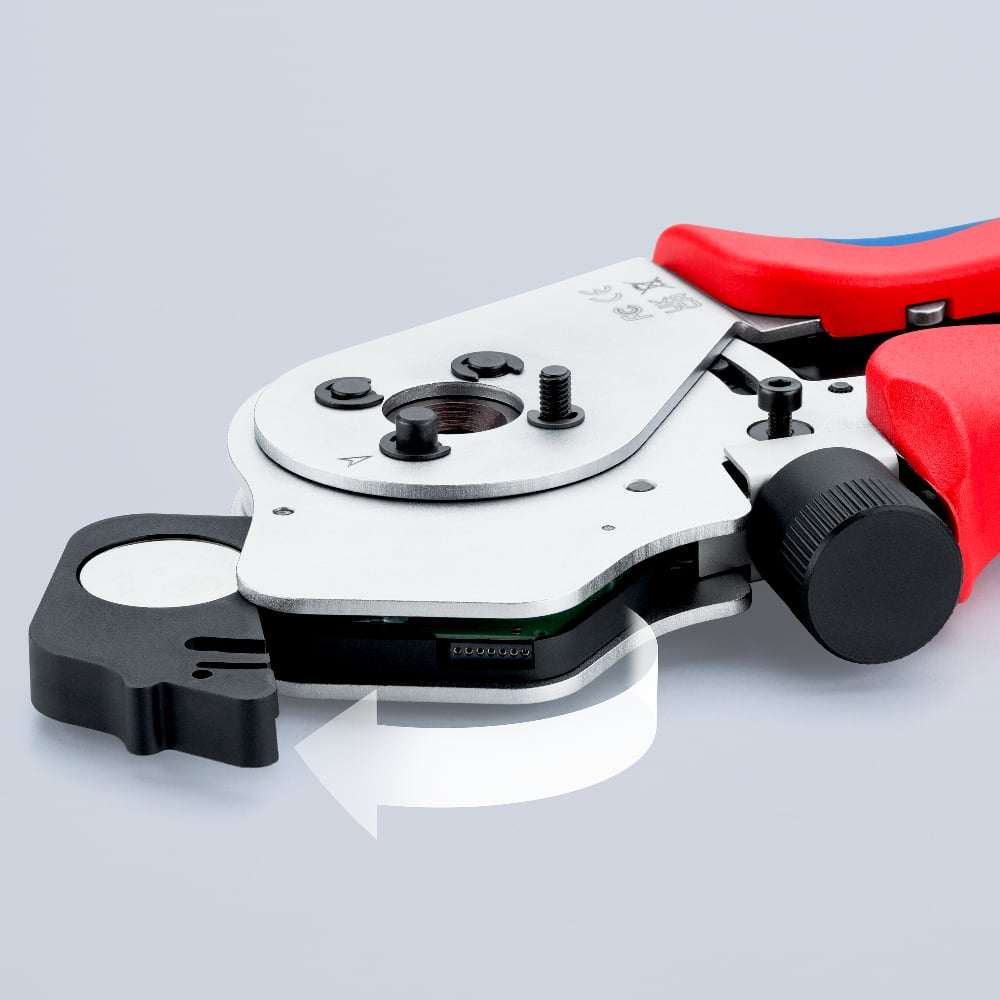

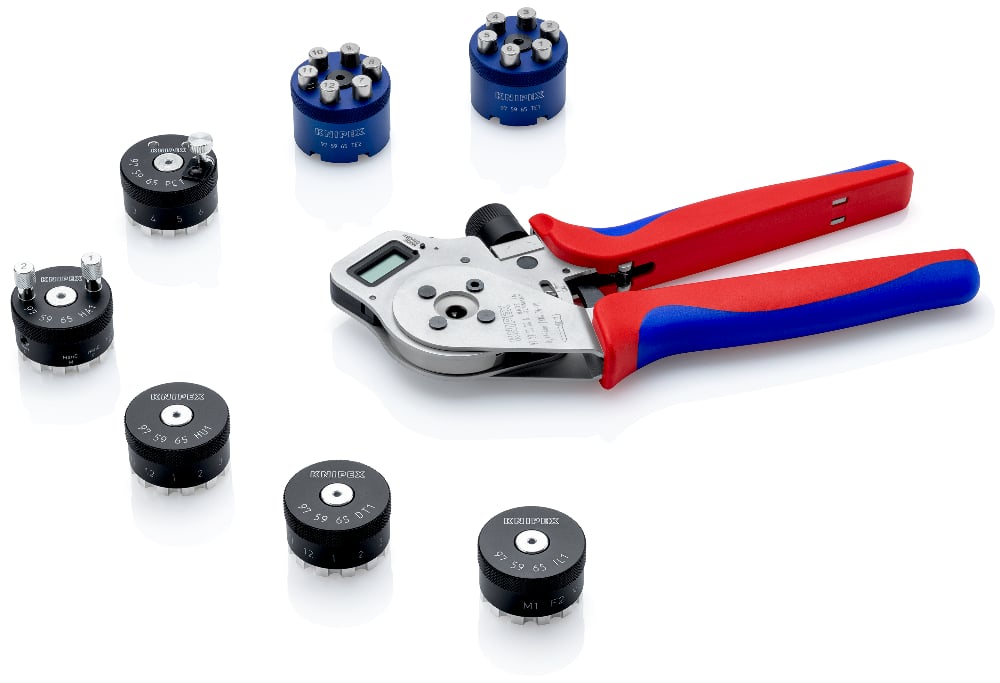

• Separately available contact holders enable the exact positioning of the crimp contacts
• Pliers in a plastic case with foam insert
