97 52 63

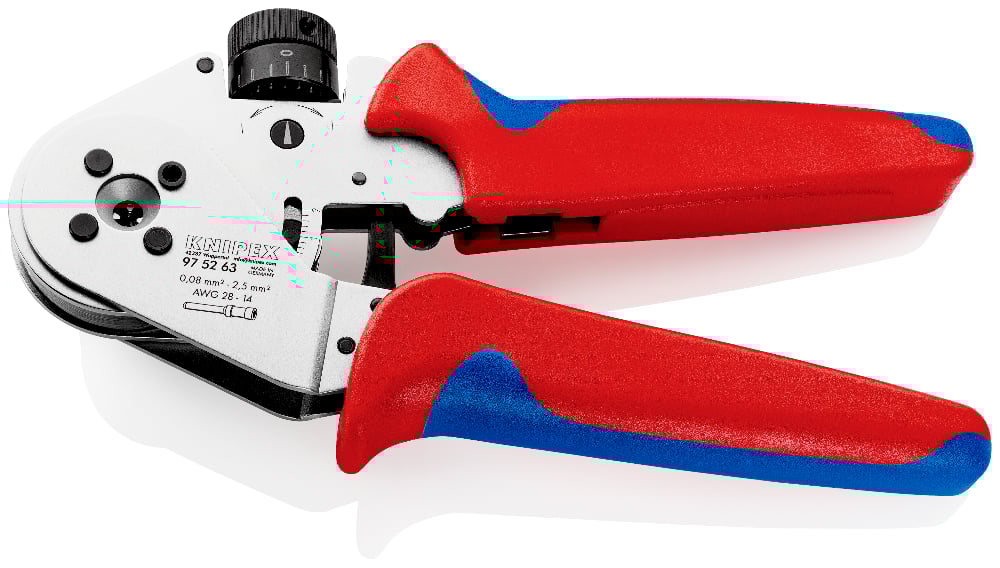

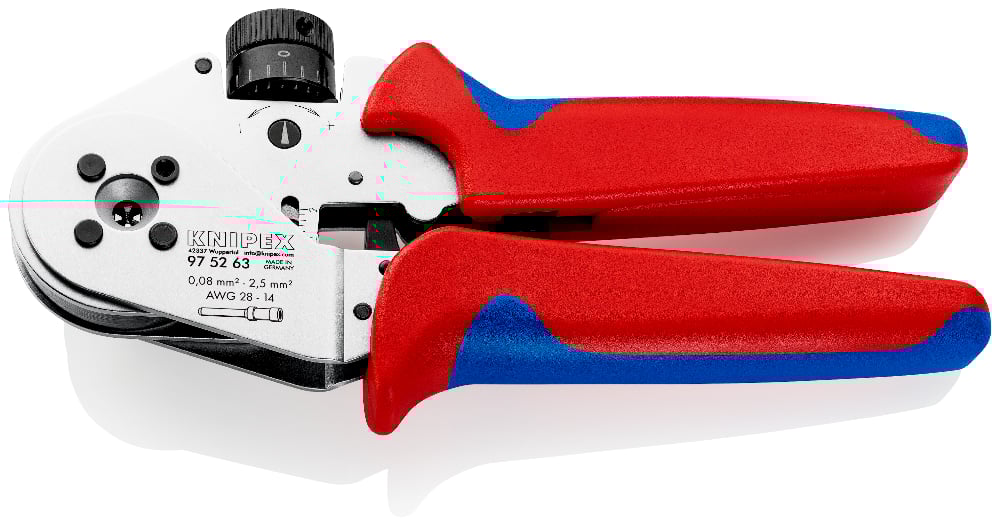

Four-Mandrel Crimping Pliers for turned contacts

• With mounted contact holder for crimping turned pin and socket contacts from Phoenix Contact for RC / SC / SI connector series

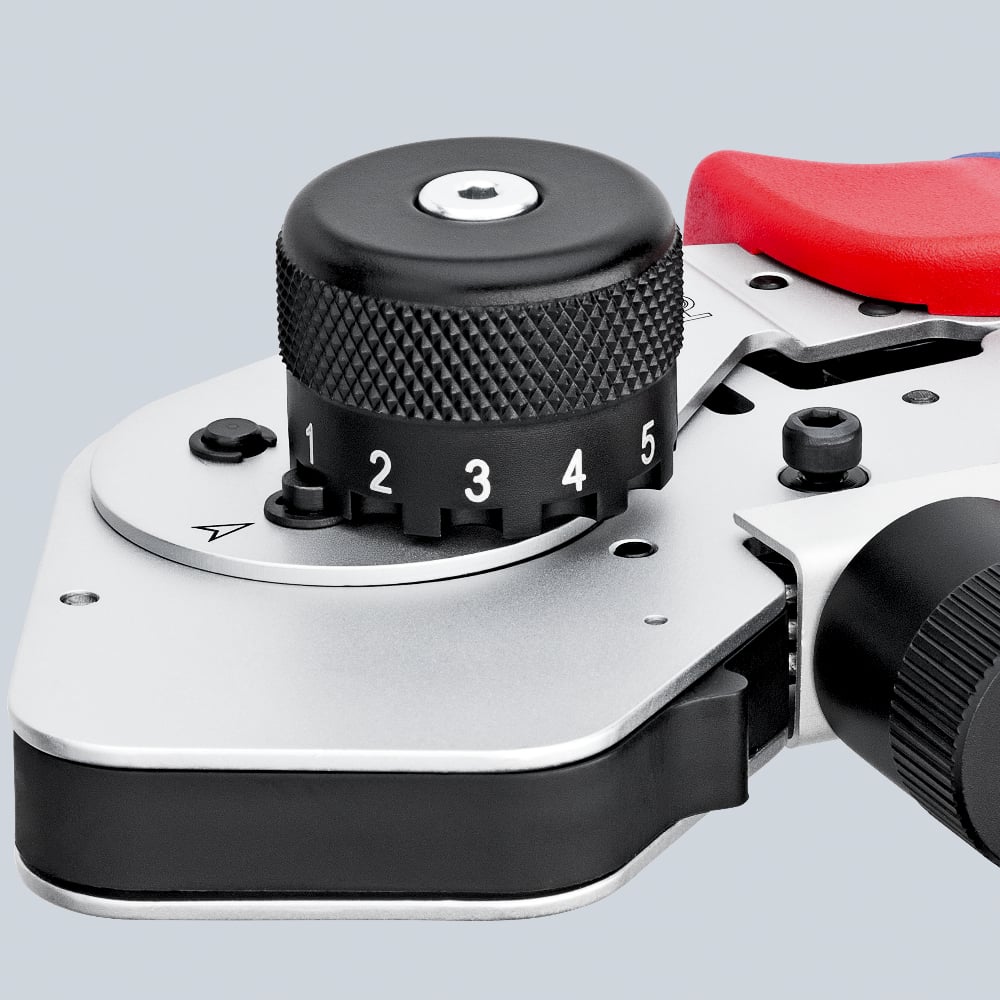

• Crimp mandrel feed adjustable in steps of 0.01 mm using the adjusting wheel
• Reliable crimping thanks to synchronised feed of the crimping mandrels
• Process-secure and consistently high crimp quality thanks to IEC 60352-compliant trigger lock (positive lock, can be unlocked)

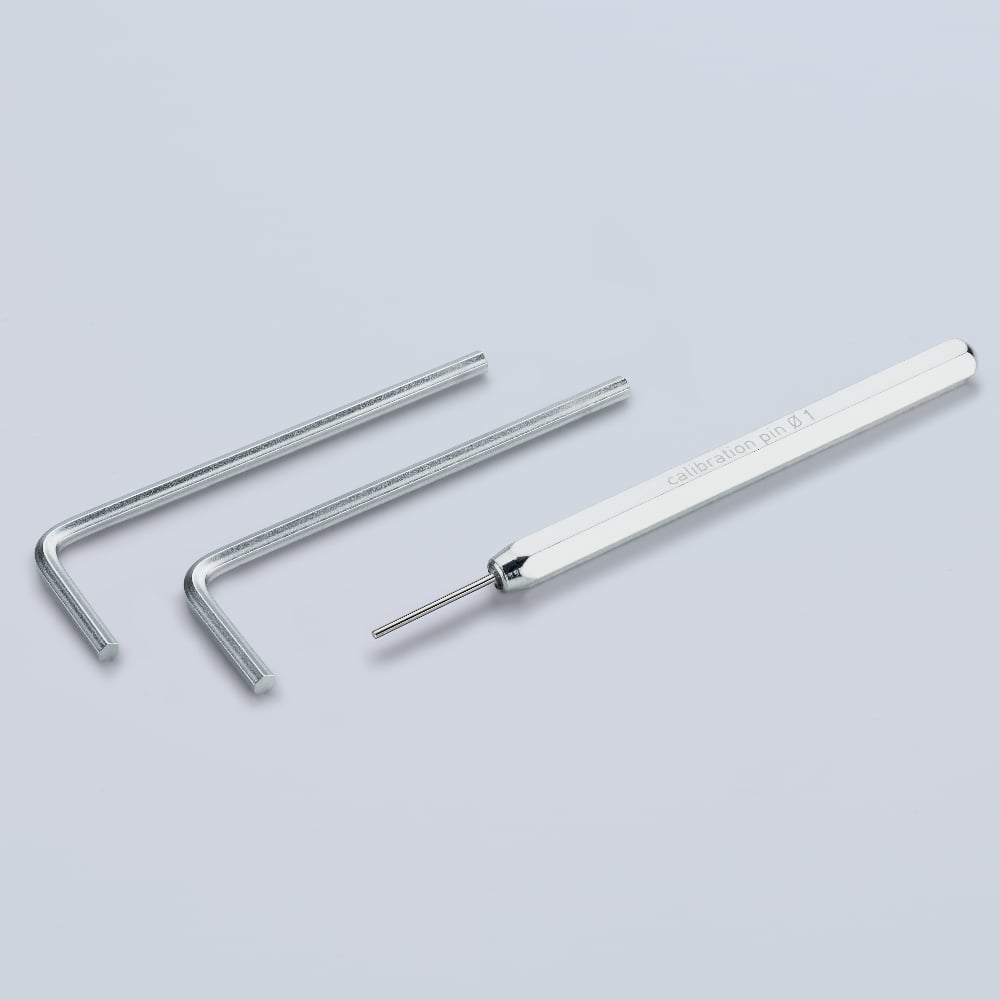

• With recalibration function; check basic setting using the enclosed test pin
• The range of applications of the crimping pliers can be extended by exchanging the contact holders of various contact manufacturers
• High operation comfort thanks to handy shape

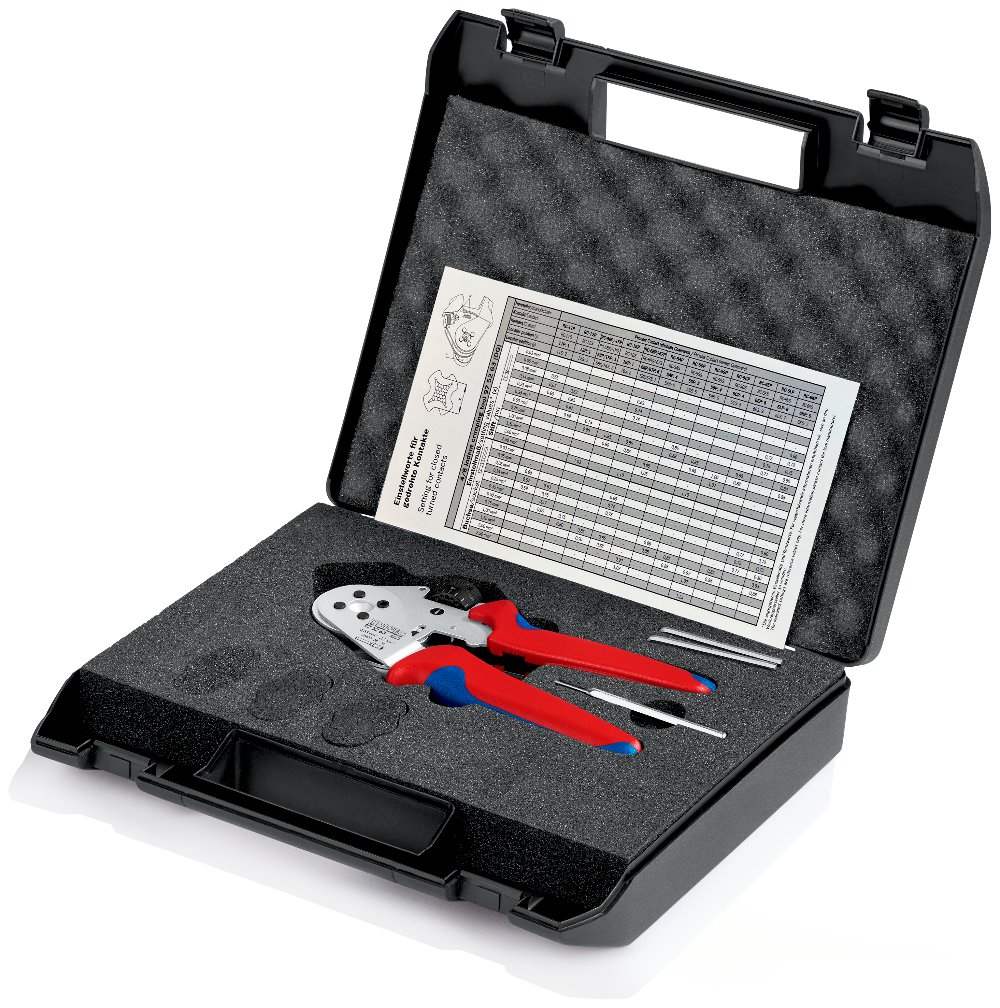

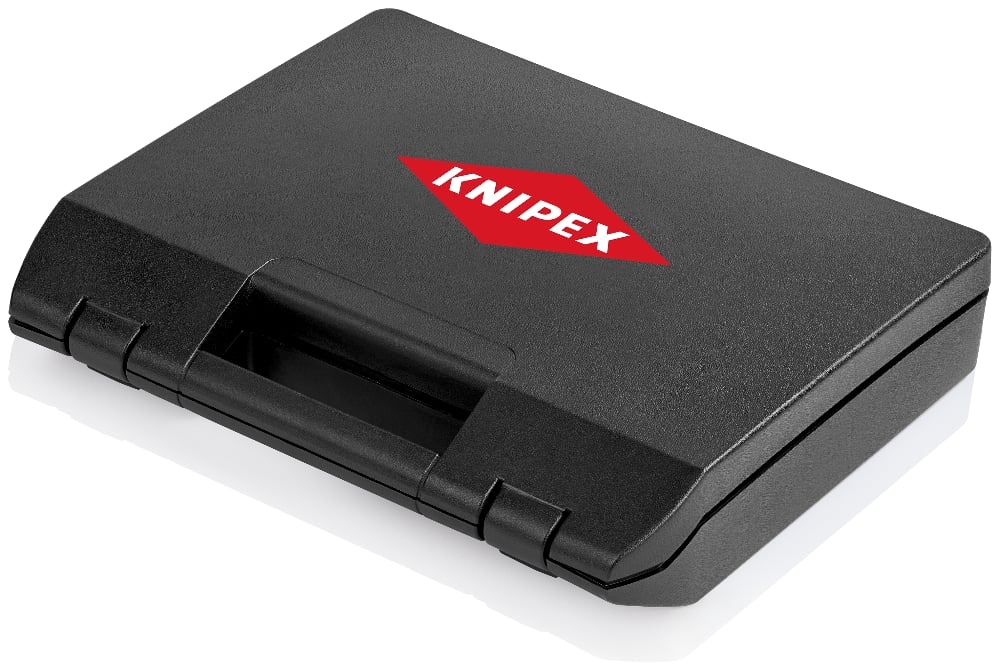

• Pliers in plastic case with foam tray and mounted (exchangeable) contact holder
• Fine adjustment of pressure depending on the conductor’s diameter by means of adjusting wheel

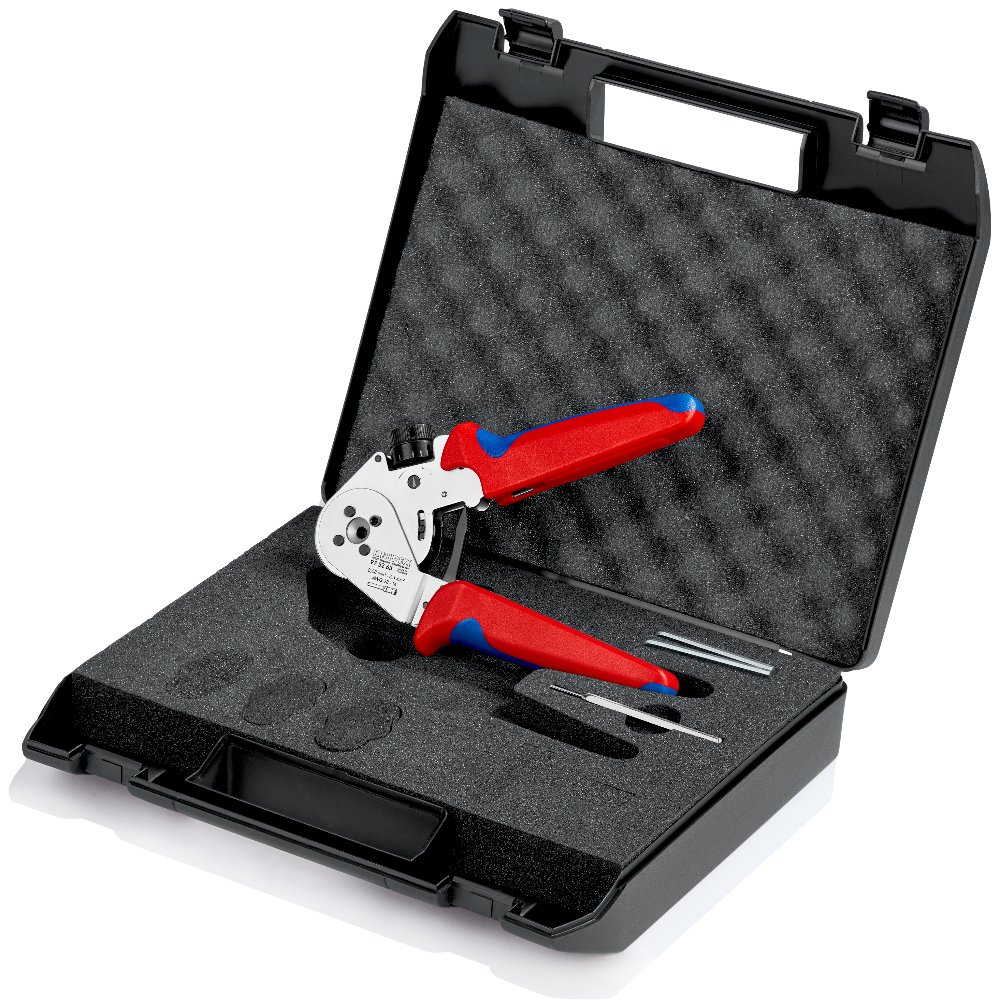

• Pliers in a plastic case with foam insert and standard locator for precise positioning of the contacts
