97 52 42

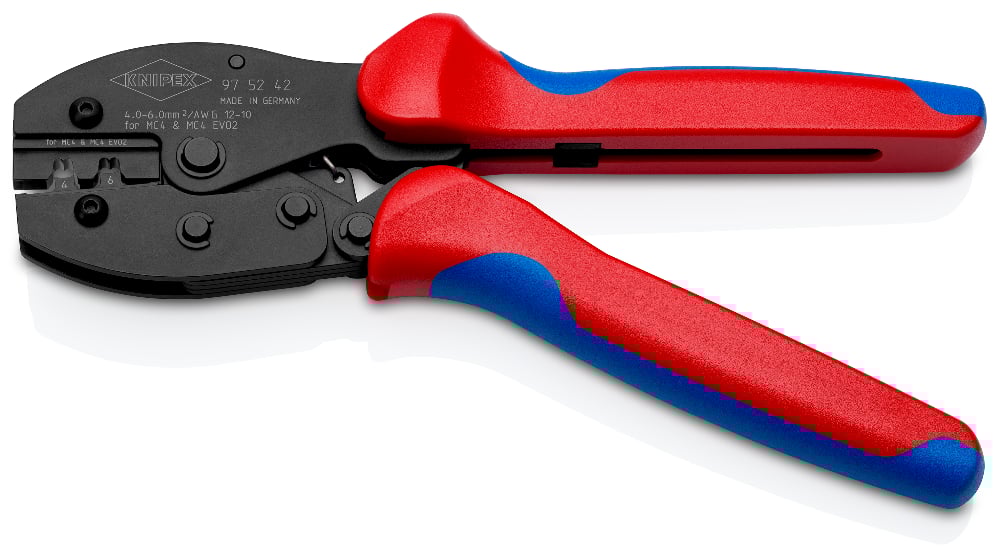

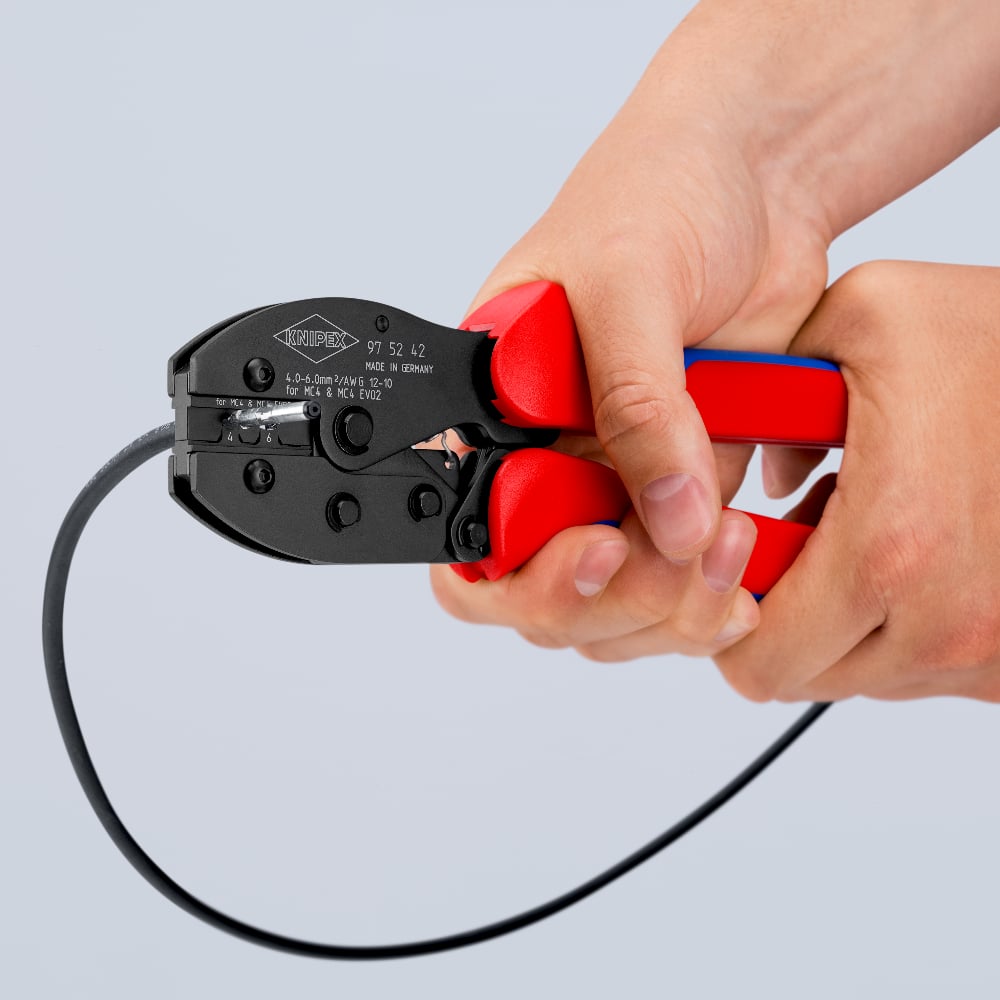

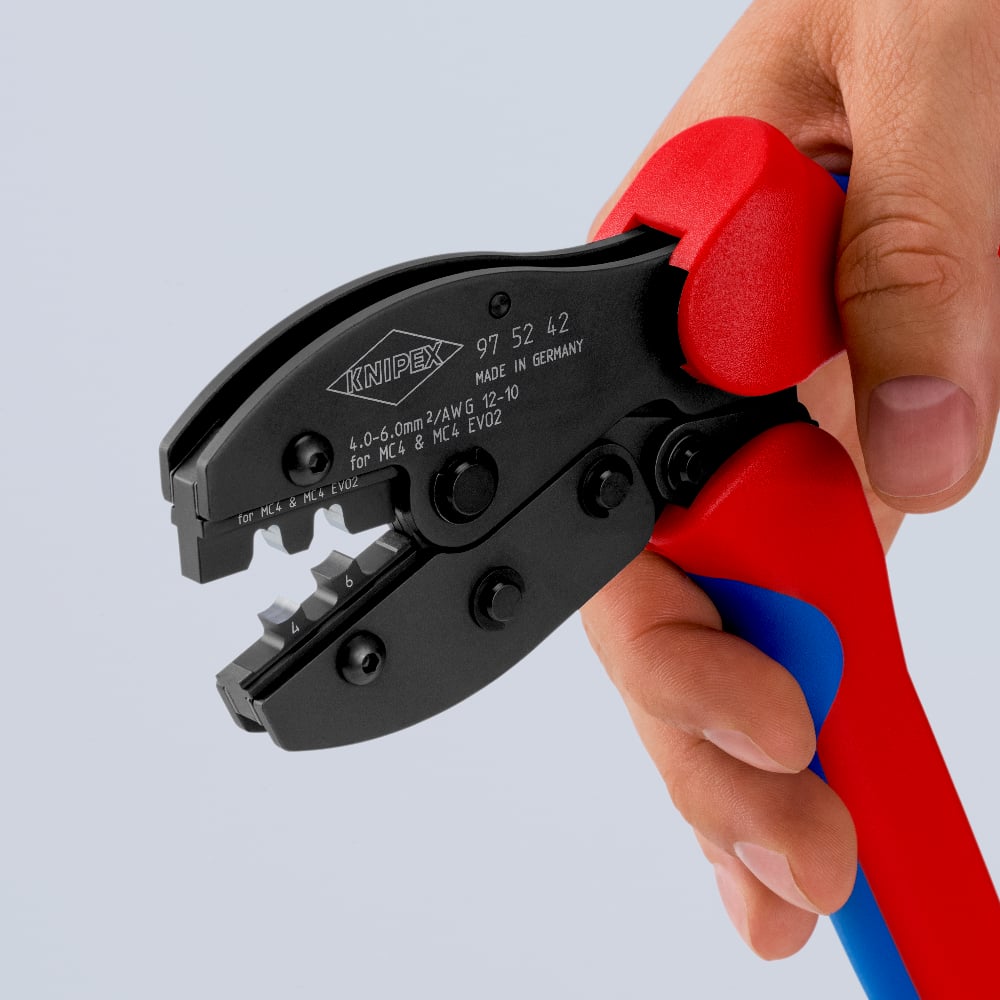

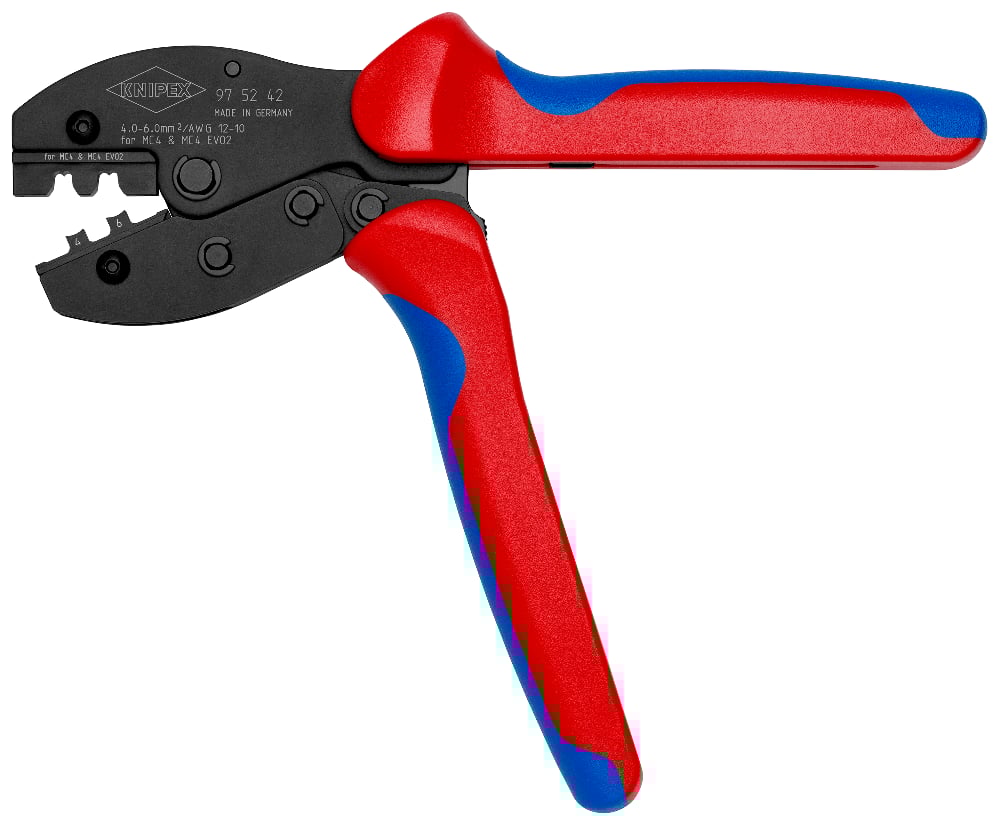

KNIPEX PreciForce

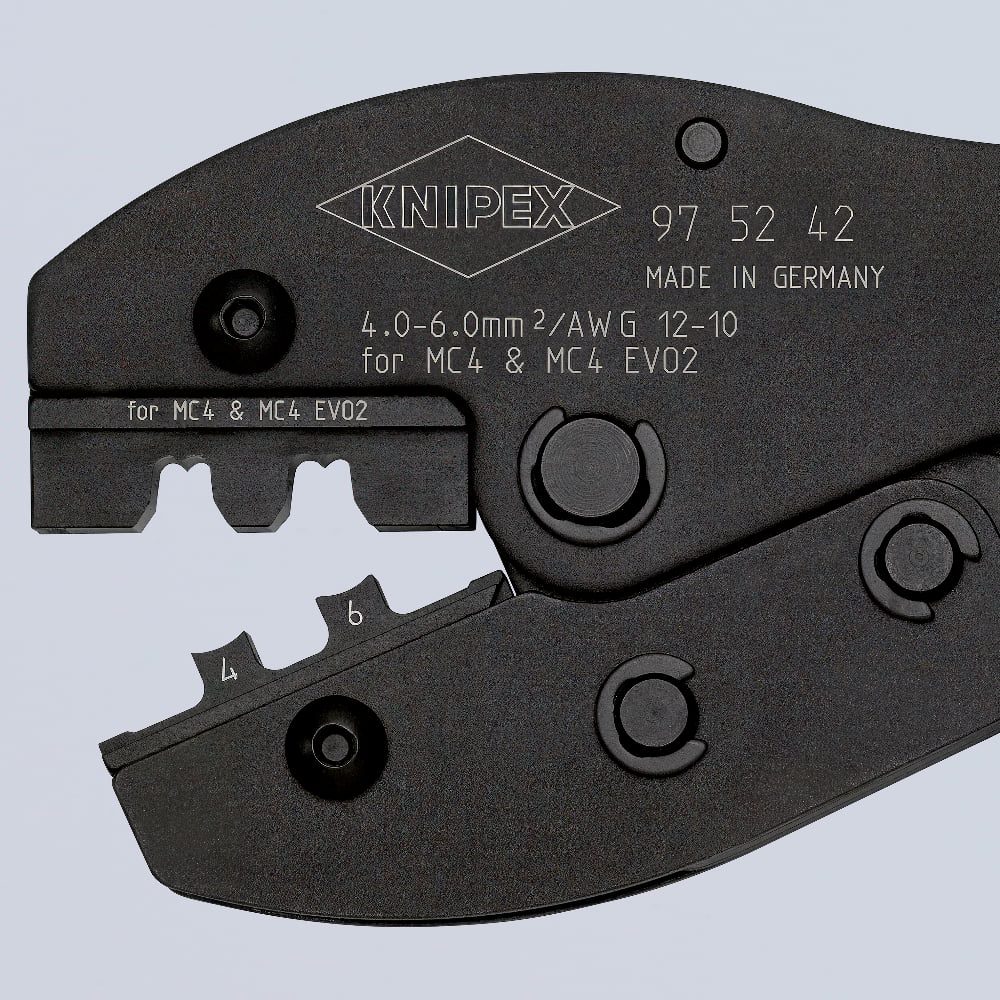

• With improved crimp geometry for very good conductivity
• Consistently high crimping quality due to precision dies and ratchet mechanism (unlockable)
• Precise, factory calibrated crimping pressure
• High crimping force due to efficient lever action
• Good handling due to favourable handle position, low weight, short design and ergonomically shaped handles
• Crimping die is not exchangeable
• For MC4®- and MC4® Evo 2 connectors

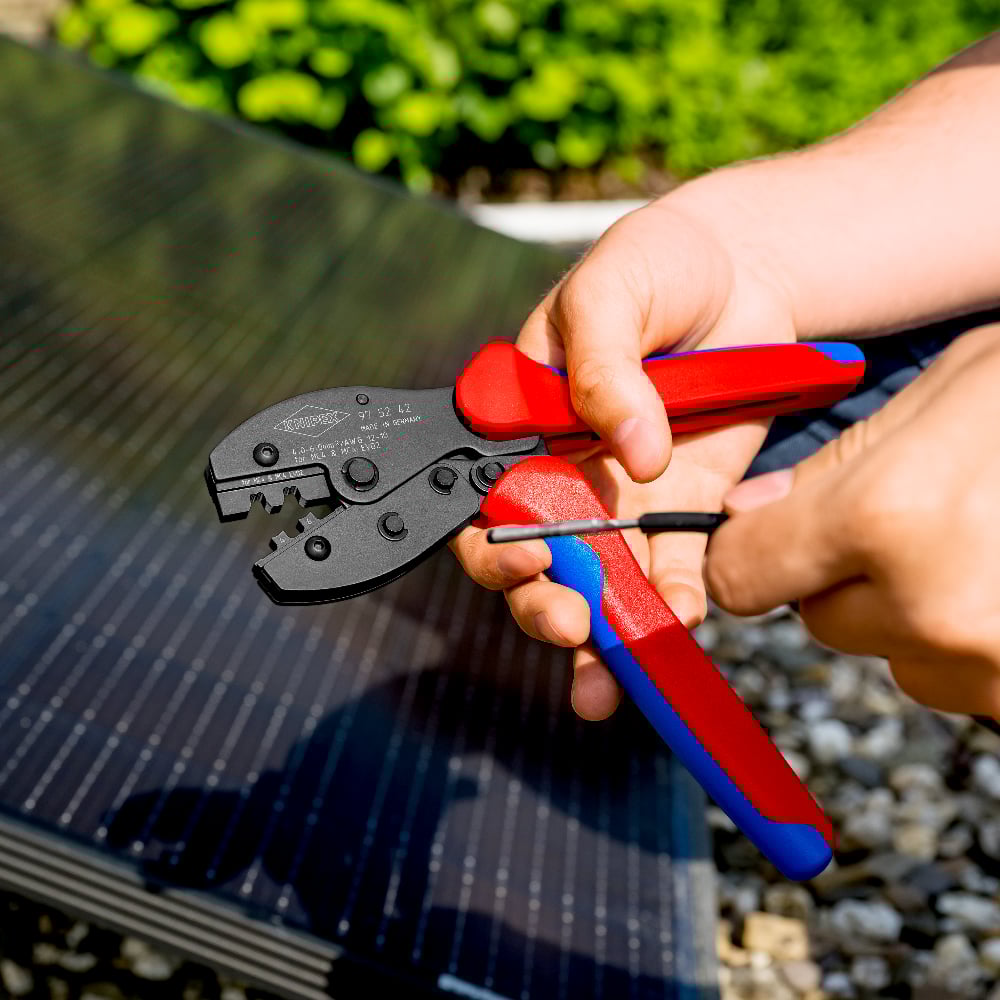

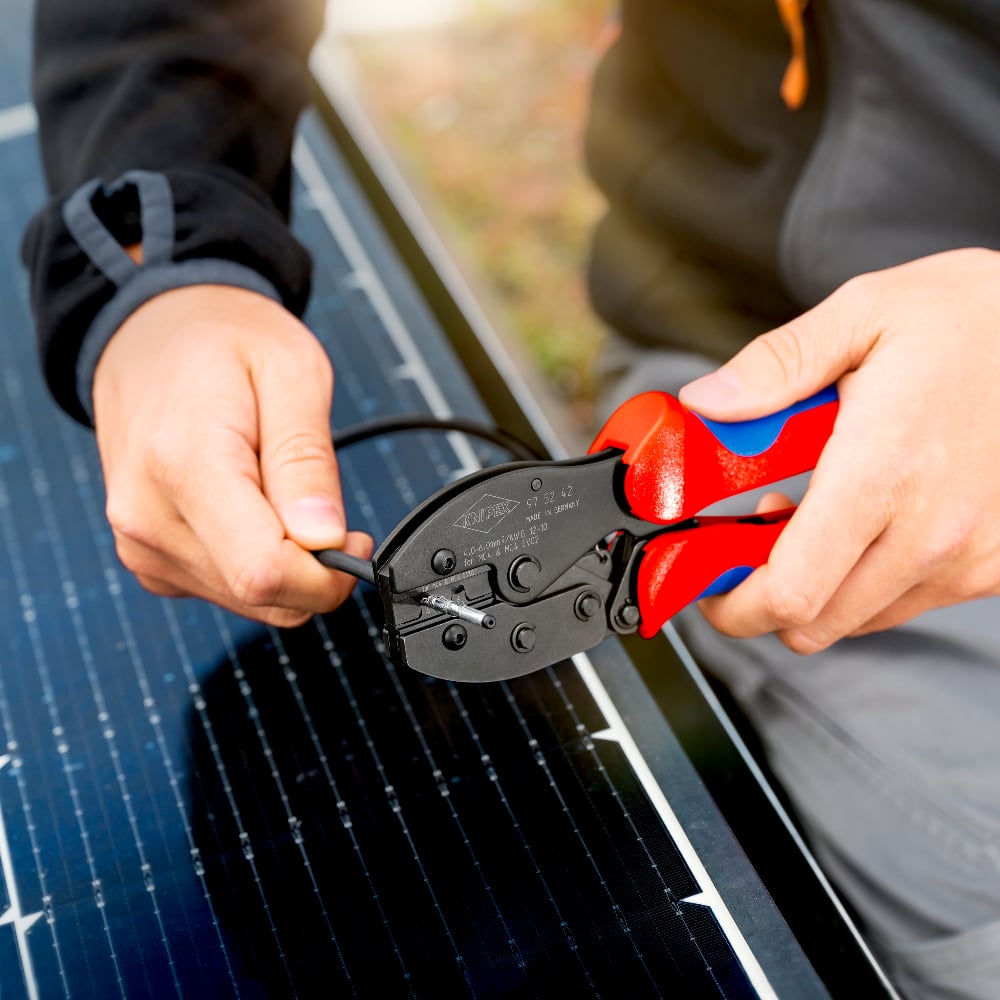

• For the installation of PV systems with MC4® and MC4® EVO 2 connectors
• For installations on residential and industrial buildings or on isolated systems such as mobile homes
Technical attributes
| Part No. | 97 52 42 |
|---|---|
| EAN | 4003773092117 |
| Pliers | burnished |
| Head | burnished |
| Handles | with multi-component handles |
| Weight | 488 g |
| Dimensions | 220 x 63 x 23 mm |
| REACH compliant | contains SVHC |
| RoHS compliant | not applicable |
| Application | for solar cable connectors MC4® & MC4® Evo 2 |
| Capacity in square millimetres | 4.0 / 6.0 mm² |
| AWG | 12 — 10 |
