97 52 30

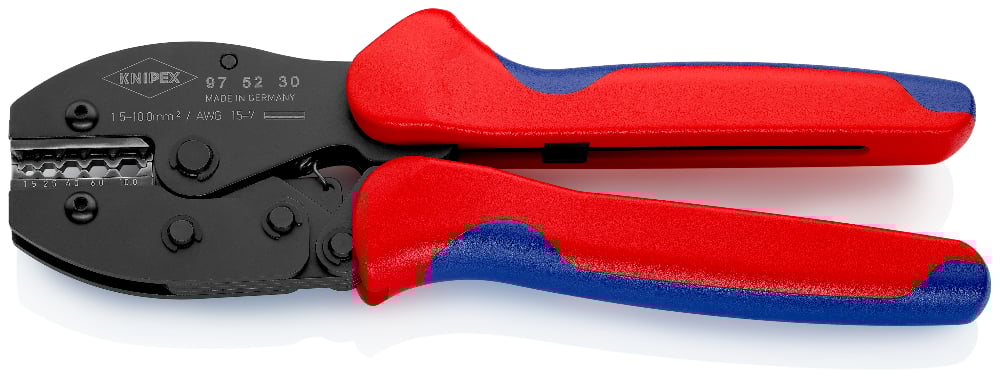

KNIPEX PreciForce
• Consistently high crimping quality due to precision dies and ratchet mechanism (unlockable)
• Precise, factory calibrated crimping pressure
• High crimping force due to efficient lever action
• Good handling due to favourable handle position, low weight, short design and ergonomically shaped handles
• Crimping die is not exchangeable
Technical attributes
| Part No. | 97 52 30 |
|---|---|
| EAN | 4003773051855 |
| Pliers | burnished |
| Handles | with multi-component handles |
| Weight | 477 g |
| Dimensions | 220 x 70 x 31 mm |
| REACH compliant | contains SVHC |
| RoHS compliant | not applicable |
| Application | non-insulated terminals in accordance with DIN 46235 and crimp connectors in accordance with DIN 46267 |
| Capacity in square millimetres | 1.5 — 10.0 mm² |
| Number of crimp profiles | 5 |
| AWG | 16 — 8 |
