97 52 23

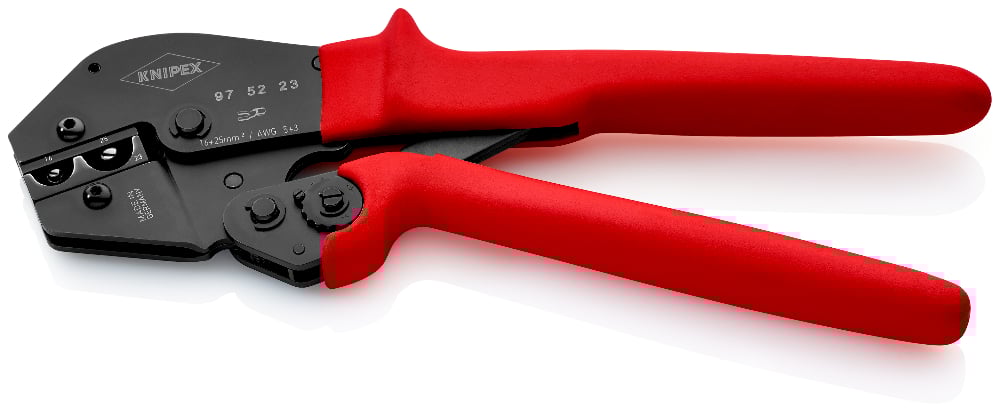

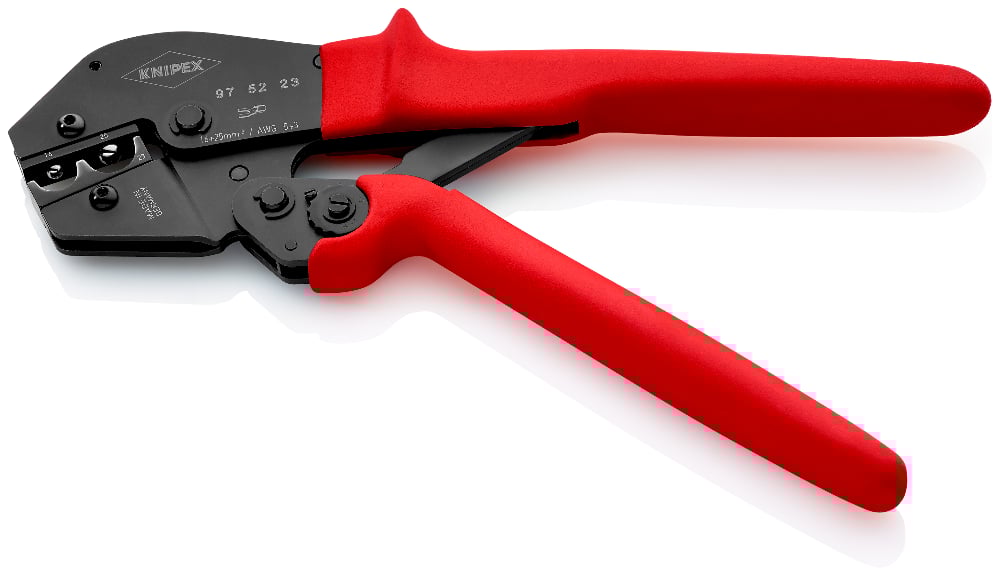

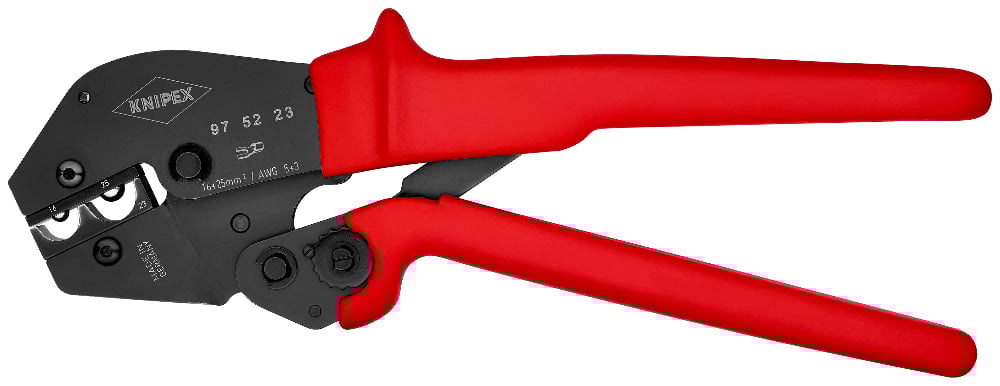

Crimping Pliers
• For solder-free electrical connections
• The ingenious lever transmission reduces the handforce up to 30% compared with regular crimping pliers
• Consistently high crimping quality due to precision dies and ratchet mechanism (unlockable)
• Precise, factory calibrated crimping pressure
• Two-hand operation for easy crimping of large conductor diameters
• Easy handling as a result of well balanced centre of gravity, angled head and ergnomically shaped handles
• Crimping die is not exchangeable
Technical attributes
| Part No. | 97 52 23 |
|---|---|
| EAN | 4003773052159 |
| Pliers | burnished |
| Head | burnished |
| Handles | with non-slip plastic grips |
| Weight | 565 g |
| Dimensions | 250 x 79 x 24 mm |
| REACH compliant | contains SVHC |
| RoHS compliant | not applicable |
| Application | non-insulated terminals + cable connectors |
| Capacity in square millimetres | 16 / 25 mm² |
| Number of crimp profiles | 2 |
| AWG | 6 / 4 |
Documents
[product_documents_list]
Spare Parts
[spare_parts_list]
