97 52 04

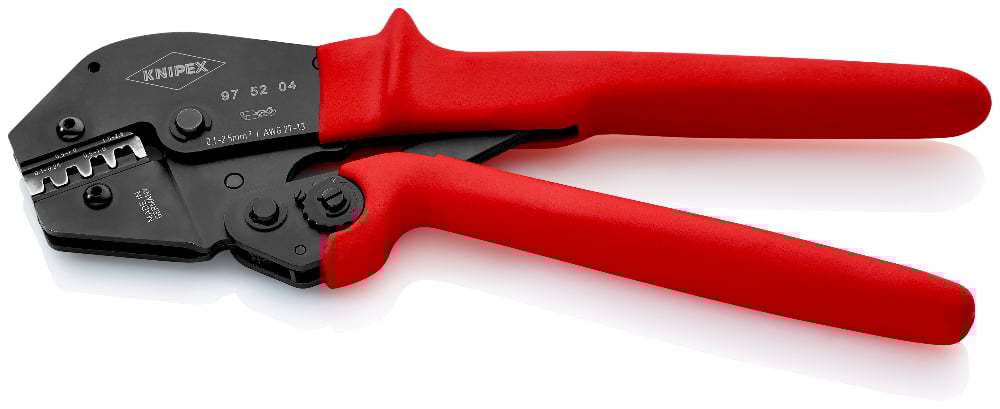

Crimping Pliers
• For solder-free electrical connections
• The ingenious lever transmission reduces the handforce up to 30% compared with regular crimping pliers
• Consistently high crimping quality due to precision dies and ratchet mechanism (unlockable)
• Precise, factory calibrated crimping pressure
• Two-hand operation for easy crimping of large conductor diameters
• Easy handling as a result of well balanced centre of gravity, angled head and ergnomically shaped handles
• Crimping die is not exchangeable
Technical attributes
| Part No. | 97 52 04 |
|---|---|
| EAN | 4003773025450 |
| Pliers | burnished |
| Head | burnished |
| Handles | with non-slip plastic grips |
| Weight | 562 g |
| Dimensions | 250 x 82 x 27 mm |
| REACH compliant | contains SVHC |
| RoHS compliant | not applicable |
| Application | non-insulated open plug type connectors (plug width 2.8 + 4.8 mm) |
| Capacity in square millimetres | 0.1 — 2.5 mm² |
| Number of crimp profiles | 4 |
| AWG | 26 — 14 |
