97 43 05

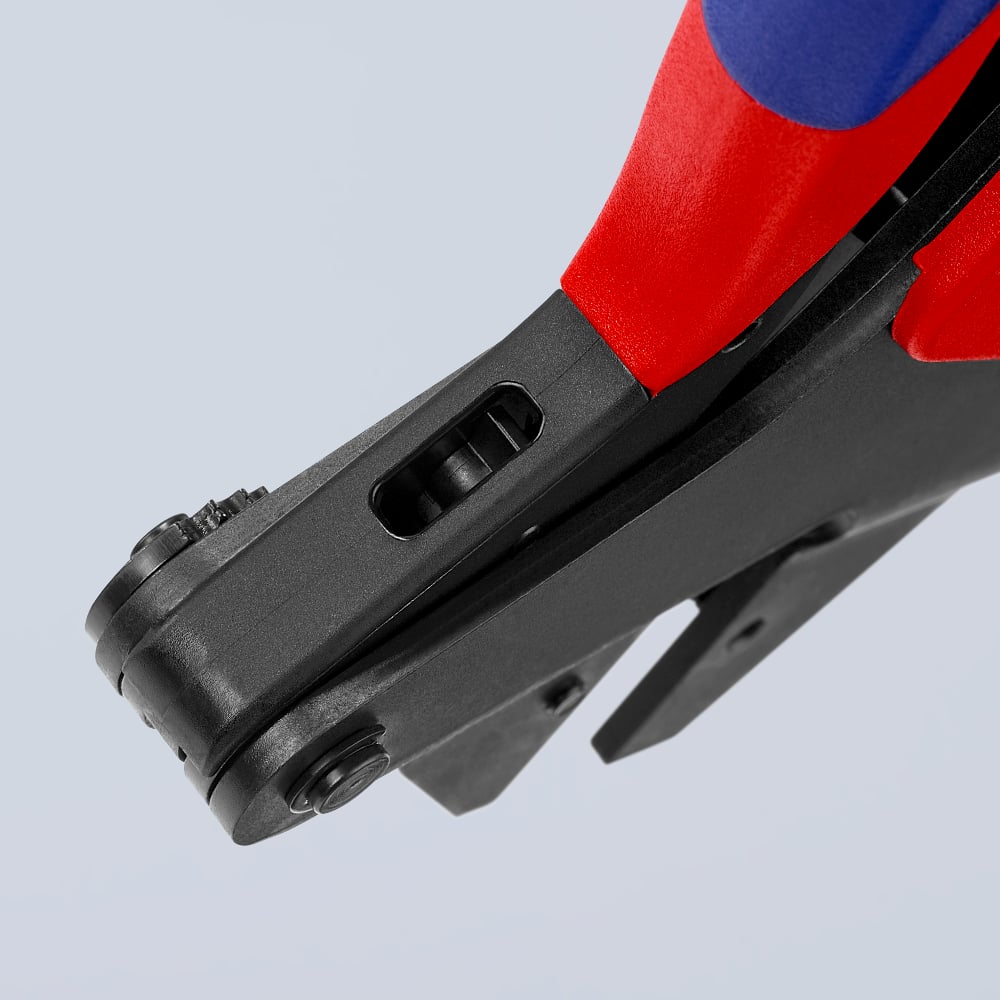

Crimp System Pliers
• Only one tool for almost 1000 crimping applications: usable with all crimping dies and locators 97 49 XX
• Almost parallel crimping motion
• Consistently high crimping quality due to precision dies and ratchet mechanism (unlockable)
• Crimping pressure has been set precisely (calibrated) in the factory and can be adjusted
• Force magnified by lever action to ensure fatigue-free working
• Different locators for precise positioning of the connectors
• Crimping dies for applications that go beyond the range offered are available on request
• The crimping die can be easily exchanged using two screws. Please refer to the instruction manual.
• With attached crimping dies for non-insulated open plug-type connectors (4.8 and 6.3 mm connector width)
Technical attributes
| Part No. | 97 43 05 |
|---|---|
| EAN | 4003773031031 |
| Pliers | burnished |
| Head | burnished |
| Handles | with multi-component handles |
| Weight | 618 g |
| Dimensions | 200 x 96 x 17 mm |
| REACH compliant | contains SVHC |
| RoHS compliant | not applicable |
| Application | non-insulated open plug-type connectors (4.8 and 6.3 mm connector width) |
| Capacity in square millimetres | 0.5 — 6.0 mm² |
| Number of crimp profiles | 3 |
| AWG | 20 — 10 |
