95 12 160

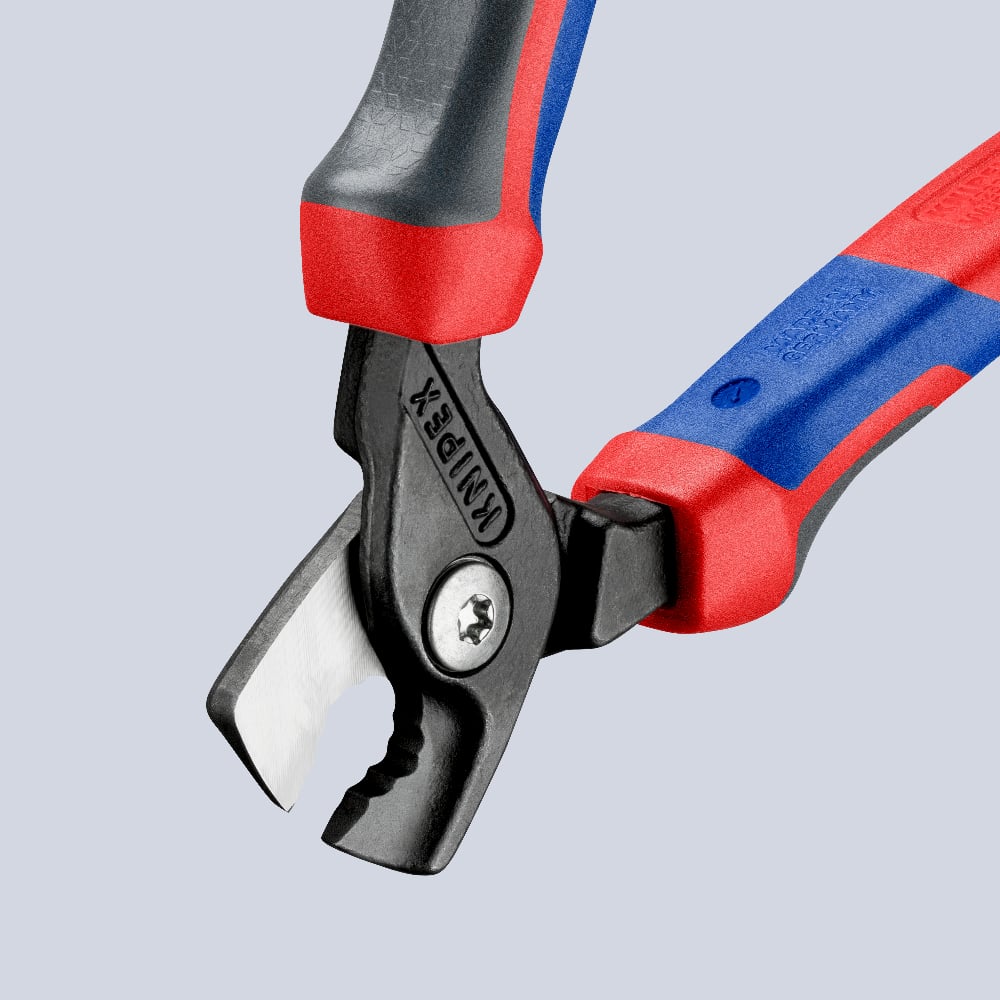

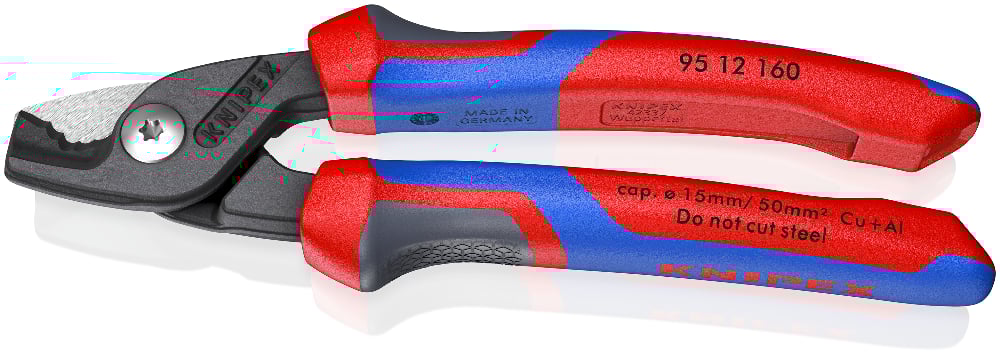

KNIPEX StepCut®

• Small, light, strong: comfortable cutting without crushing and just 160 mm in size
• Noticeably less effort: the gradations cut wires one after the other; cutting is up to 40% easier than with standard cable shears of the same length!
• Ergonomic handle design: optimal cutting feel even for larger cable diameters

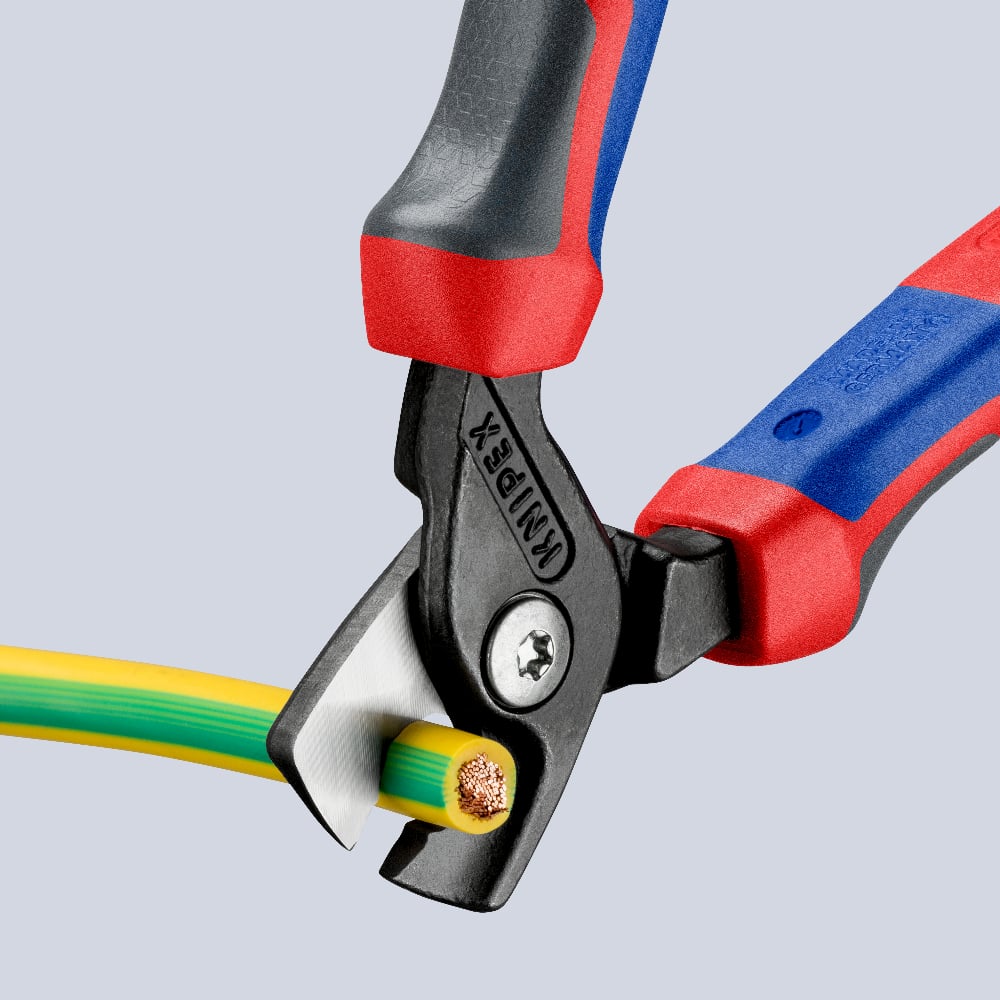

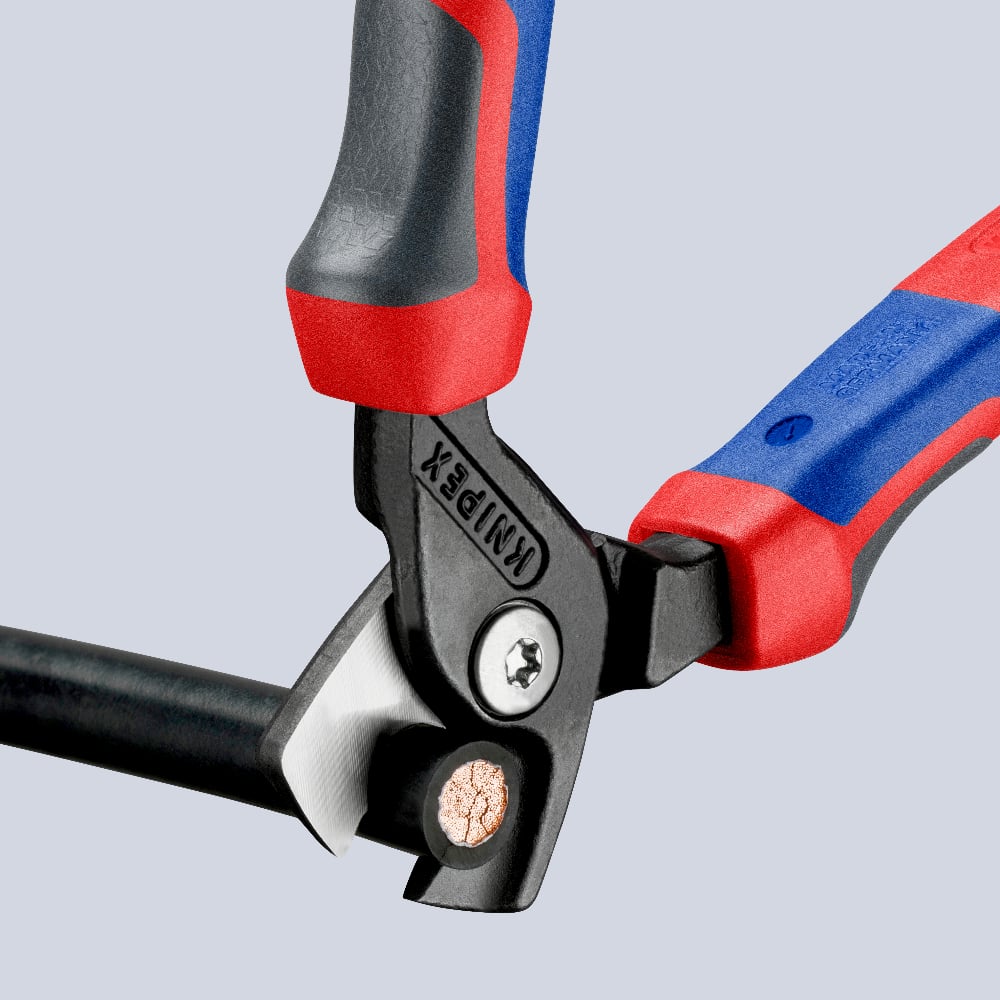

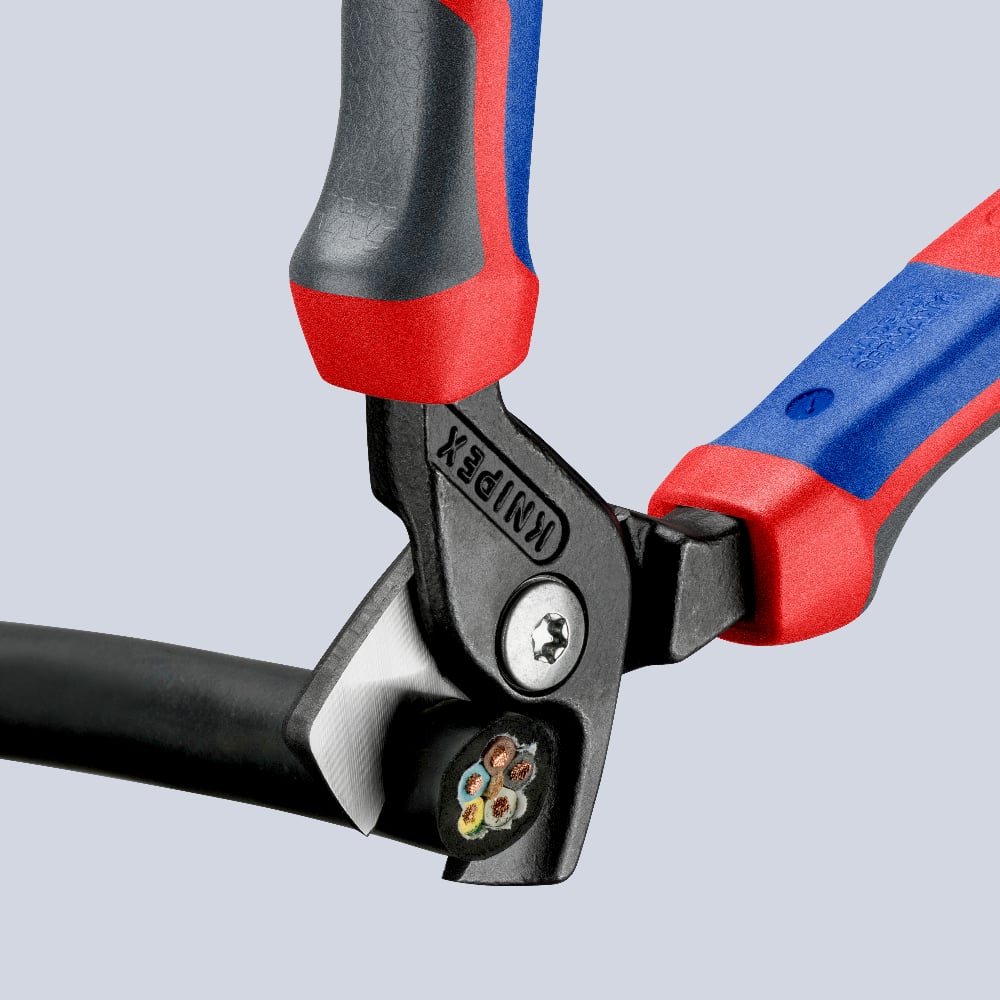

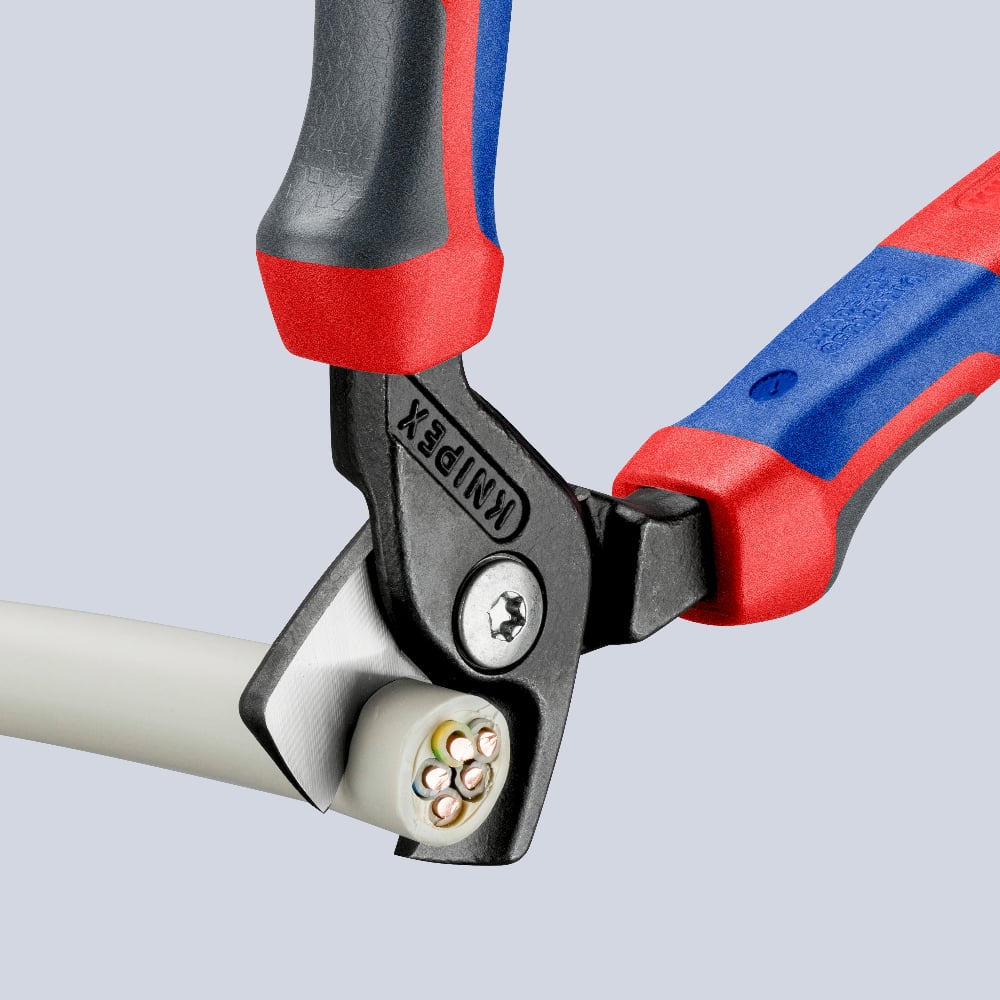

• Cuts multi-core stranded copper and aluminium cables up to Ø 15 mm (50 mm²)

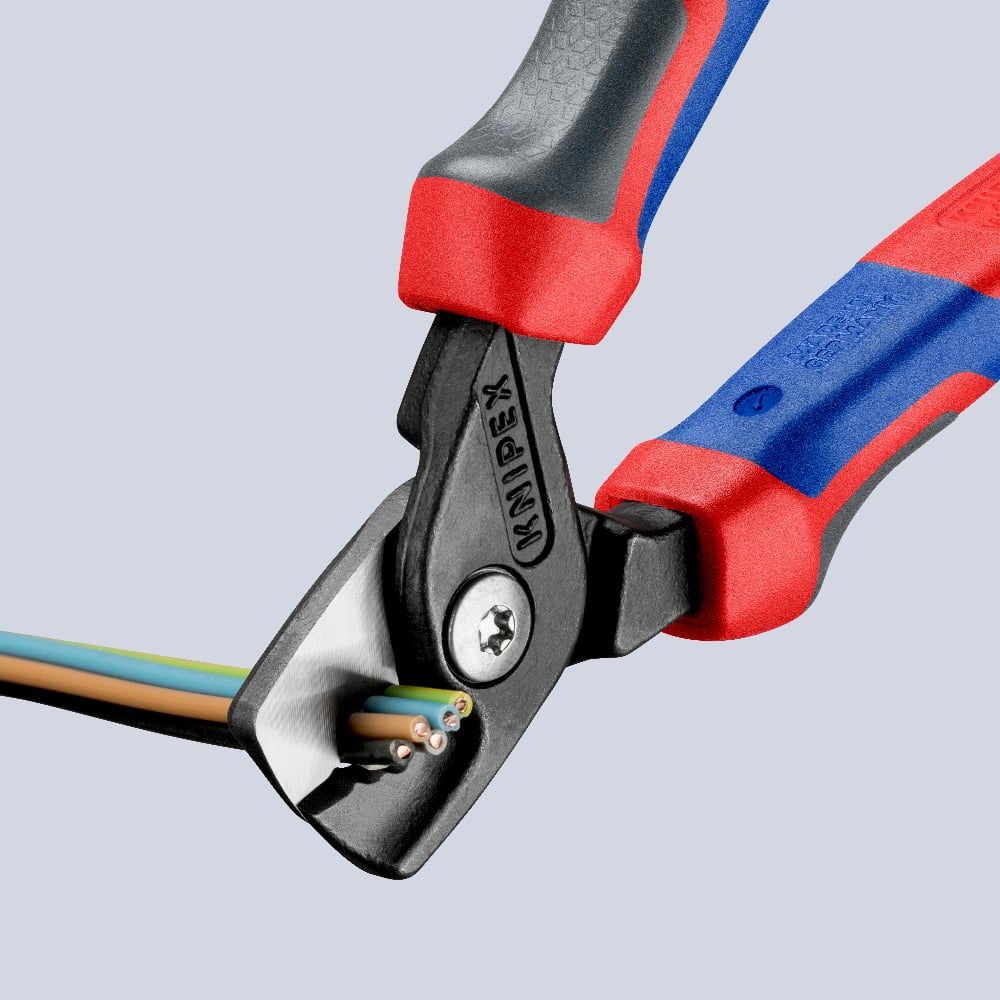

• Cuts solid copper and aluminium cables up to 5 x 4 mm²
• Cuts without crushing
• Bolted joint: precise, effortless, durable
• Pinch guard prevents operators’ fingers being pinched
• Not suitable for steel wire and hard drawn copper conductors
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 56 HRC
• With comfort handles: consisting of three ergonomic components for optimized handling and equipped with two KNIPEXtend interfaces for extensions

Technical attributes

Part No. 95 12 160
EAN 4003773085928
Shears burnished
Handles with comfort handles
Weight 225 g
Dimensions 160 x 52 x 22 mm
REACH compliant does not contain SVHC
RoHS compliant not applicable
Cutting capacity copper cable, multiple-stranded Ø 15 mm
AWG 1
