86 01 180

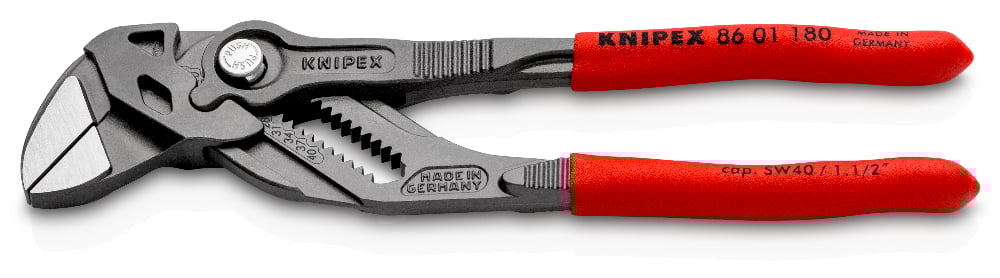

Pliers Wrench
• Replaces the need for sets of metric and imperial spanners

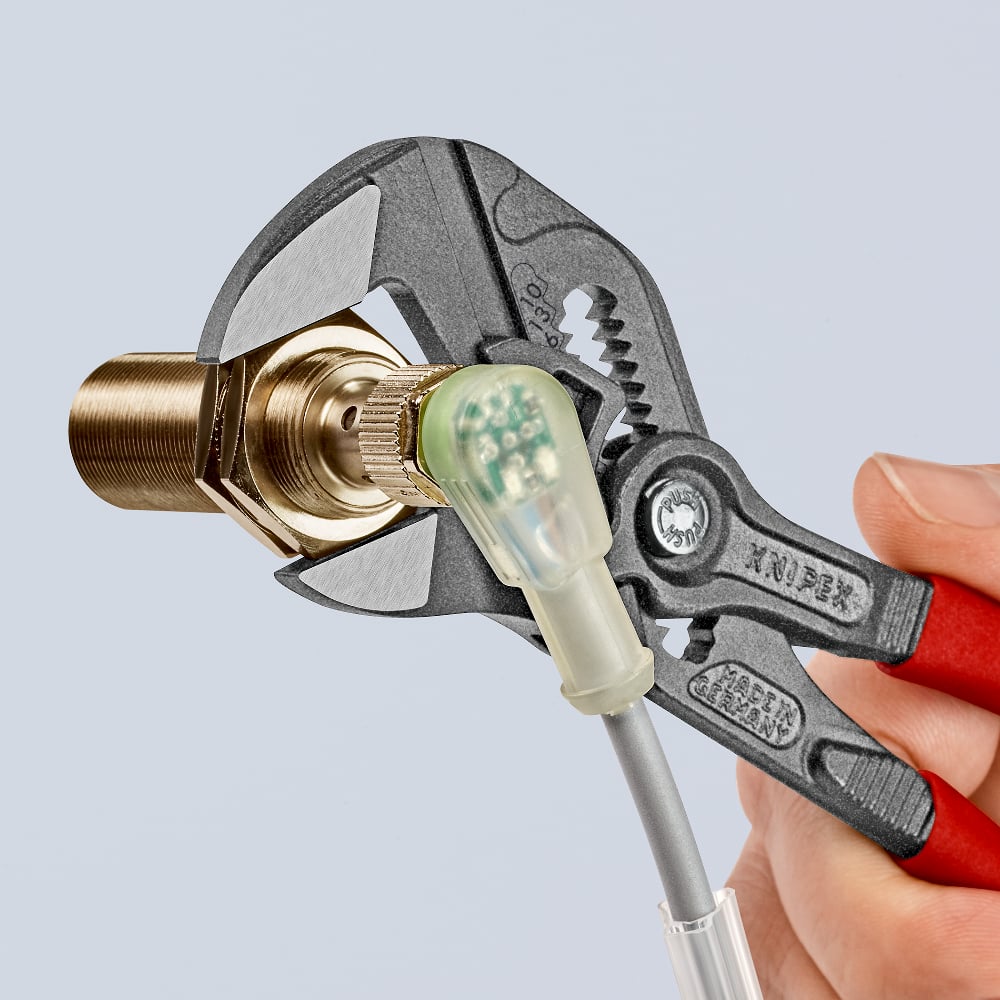

• Smooth jaws for damage free installation of plated fittings – working directly on chrome!
• Fast adjustment by pushing a button directly on the workpiece

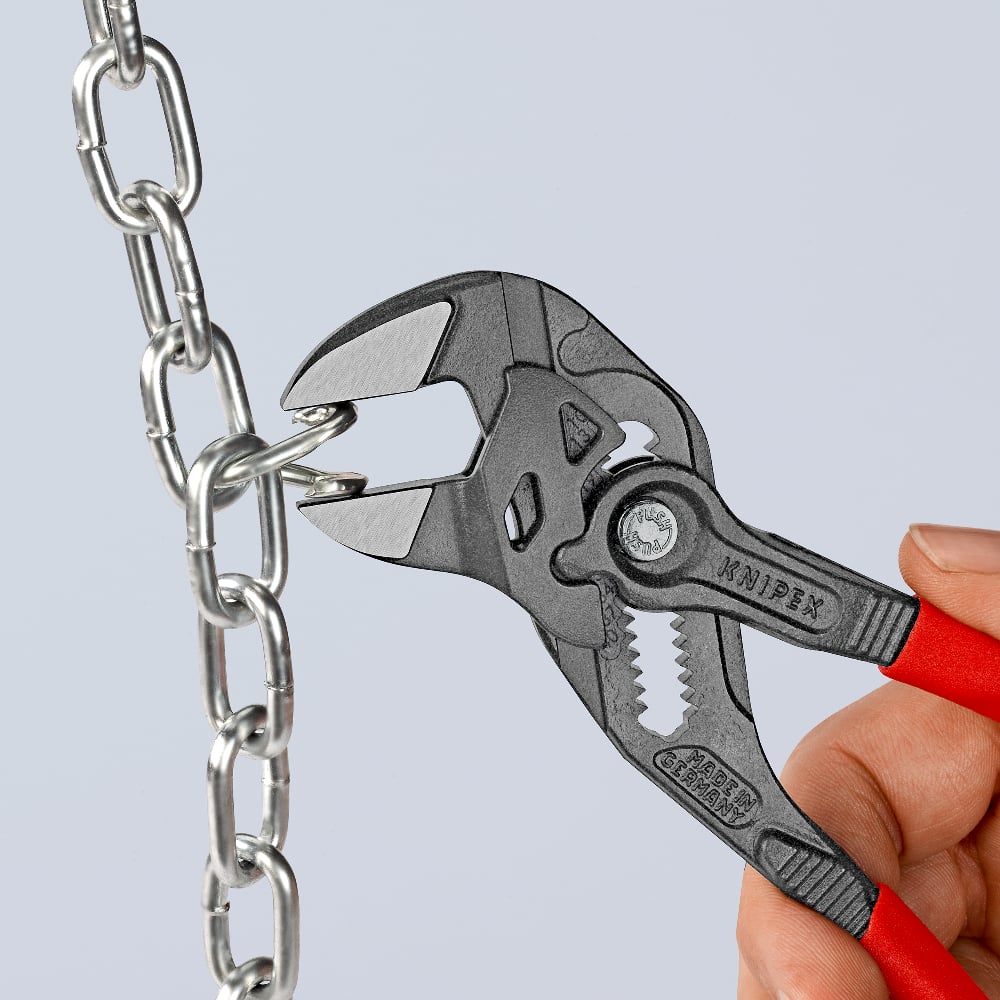

• Great for gripping, holding, pressing and bending workpieces
• High lever transmission for strong gripping power
• Zero backlash jaw pressure prevents damage to edges of sensitive components
• Parallel jaws give a more solid grip; its design allows flexible adjustment of all widths up to the specified maximum size
• Reliable catching of the hinge bolt: no unintentional shifting
• The ratchet type principle allows quick and easy tightening and release of all bolted connections
• Increased gripping capacity thanks to two additional setting positions: variable gripping of all widths across flats up to 40 mm
• 10% less weight with the same stability
• Practical adjustment scale: a laser-cut scale allows the wrench opening to be set before gripping
Technical attributes
| Part No. | 86 01 180 |
|---|---|
| EAN | 4003773084273 |
| Pliers | grey atramentized |
| Head | polished |
| Handles | with non-slip plastic coating |
| Weight | 230 g |
| Dimensions | 180 x 46 x 15 mm |
| Standard | DIN ISO 8976 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Jaw thickness (joint) (B2) | 8.0 mm |
| Joint thickness (B3) | 12.0 mm |
| Tips thickness (B1) | 5.0 mm |
| Adjustment positions | 15 |
| Capacities for nuts | 40 mm |
