85 01 250

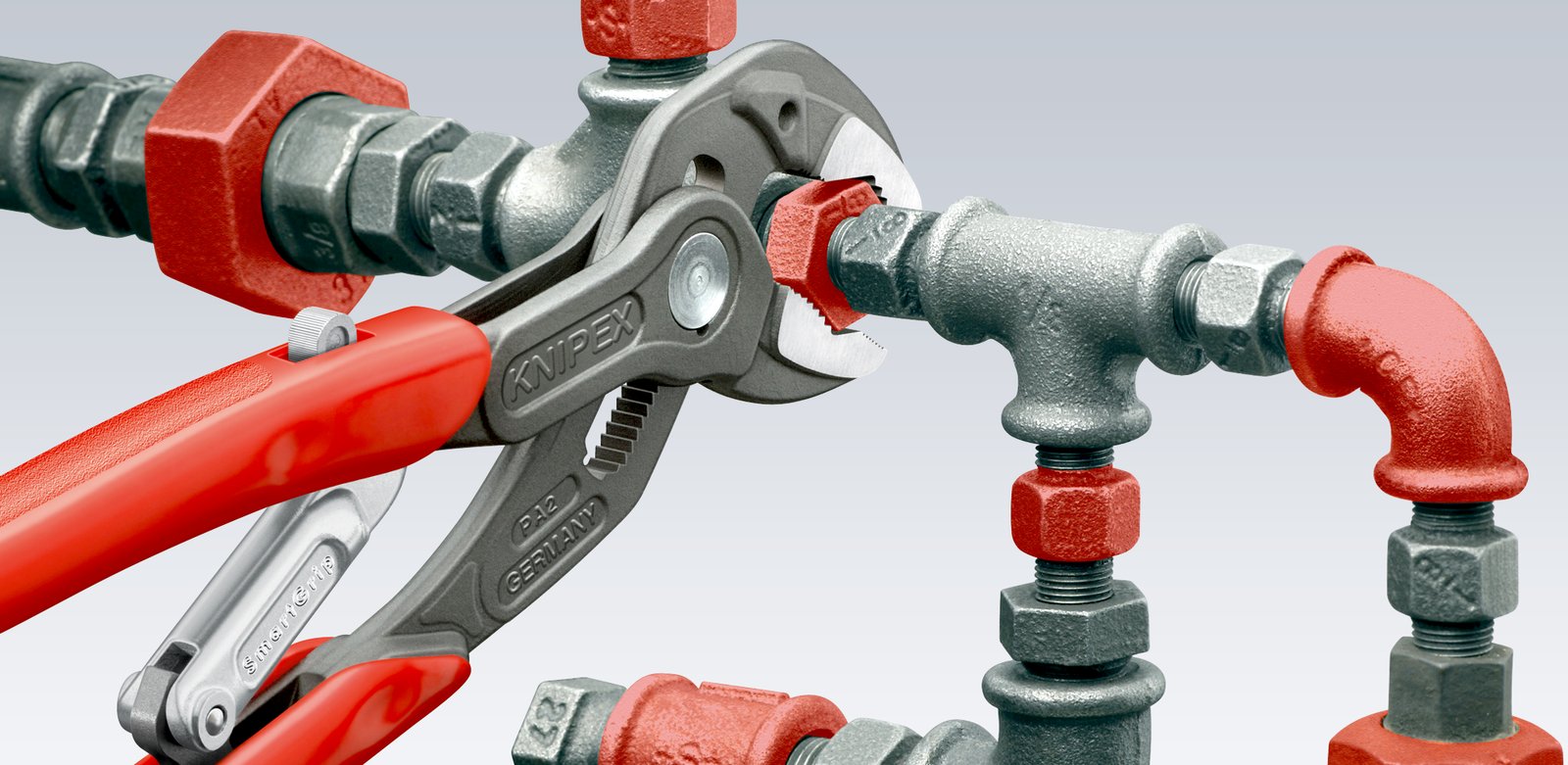

KNIPEX SmartGrip®

• Ideal for frequent changeovers to workpieces of different sizes
• Automatic adjustment per one-hand operation both for right-handed and left-handed use
• Good access to the workpiece thanks to the slim dimensions of head and joint area and flush joint bolt
• Self-clamping on pipes and nuts: no slipping on the workpiece, effortless working
• Gripping surfaces with special hardened teeth, teeth hardness approx. 61 HRC: high wear resistance and stable gripping
• Box-joint design for high stability due to double guide
• Pinch guard prevents operators’ fingers being pinched
• Locking lever for space-saving transport with reliable closed handles

Technical attributes

Part No. 85 01 250
EAN 4003773061304
Pliers grey atramentized
Head polished
Handles with plastic handles
Weight 370 g
Dimensions 250 x 53 x 16 mm
Standard DIN ISO 8976
REACH compliant does not contain SVHC
RoHS compliant not applicable
Capacities for pipes (diameter) Ø 32 mm
Capacities for nuts 36 mm
