83 61 020

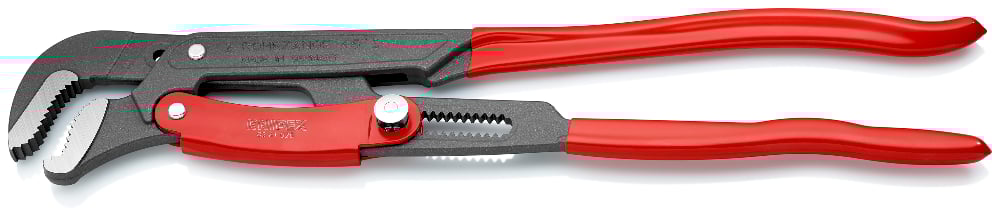

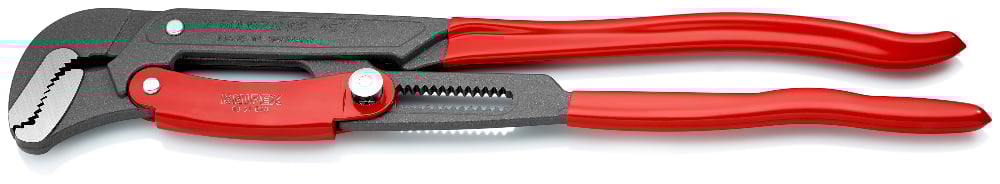

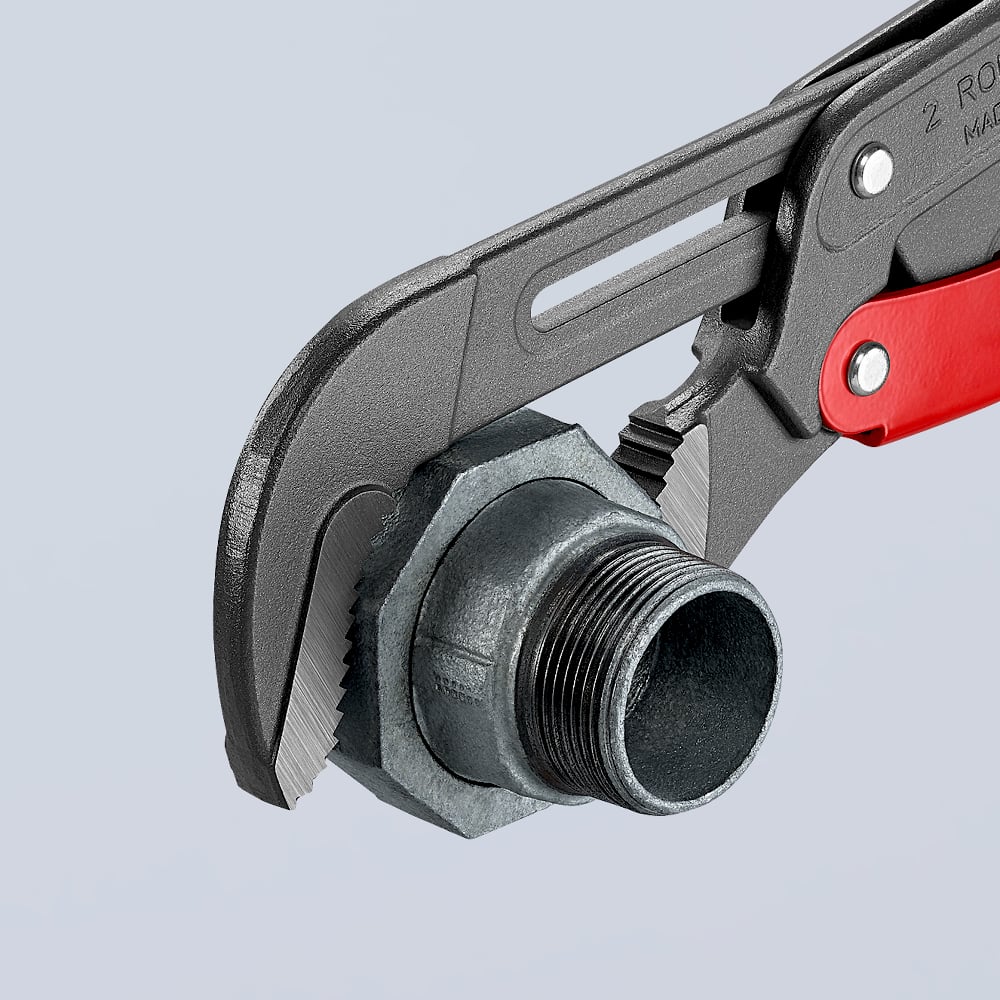

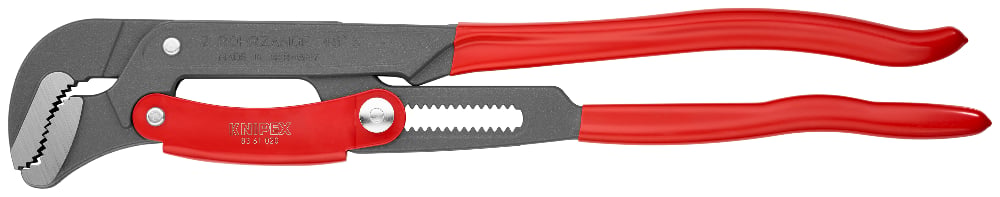

Pipe Wrench S-Type
• Pinch guard prevents operators’ fingers being pinched
• Time-saving, precise adjustment of the gripping width directly on the workpiece at the push of a button
• Less effort required due to self-locking action
• No unintentional shifting of the jaws
• Teeth specially hardened for high wear resistance
• Maximum load capability thanks to completely hardened handles
• Gripping jaws with specially hardened teeth, hardness approx. 56 HRC
Technical attributes
| Part No. | 83 61 020 |
|---|---|
| EAN | 4003773078876 |
| Pliers | grey powder-coated |
| Handles | with plastic coating |
| Weight | 2,456 g |
| Dimensions | 560 x 94 x 32 mm |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Capacities for pipes (diameter) | Ø 70 mm |
| Capacities for nuts | 70 mm |
| Inner diameter, inches | Ø 2 Inch |
| Pipe inner dia. | 50 mm |
