83 61 015

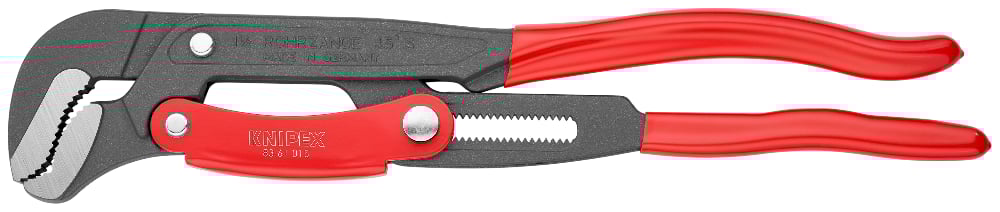

Pipe Wrench S-Type
• Pinch guard prevents operators’ fingers being pinched
• Time-saving, precise adjustment of the gripping width directly on the workpiece at the push of a button
• Less effort required due to self-locking action
• No unintentional shifting of the jaws
• Teeth specially hardened for high wear resistance
• Maximum load capability thanks to completely hardened handles
• Gripping jaws with specially hardened teeth, hardness approx. 56 HRC
Technical attributes
| Part No. | 83 61 015 |
|---|---|
| EAN | 4003773077619 |
| Pliers | grey powder-coated |
| Handles | with plastic coating |
| Weight | 1,523 g |
| Dimensions | 420 x 84 x 28 mm |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Clamping width | 60 mm |
| Capacities for pipes (diameter) | Ø 60 mm |
| Capacities for nuts | 60 mm |
| Inner diameter, inches | Ø 1 1/2 Inch |
| Pipe inner dia. | 37.5 mm |
Documents
[product_documents_list]
Spare Parts
[spare_parts_list]
