79 52 125

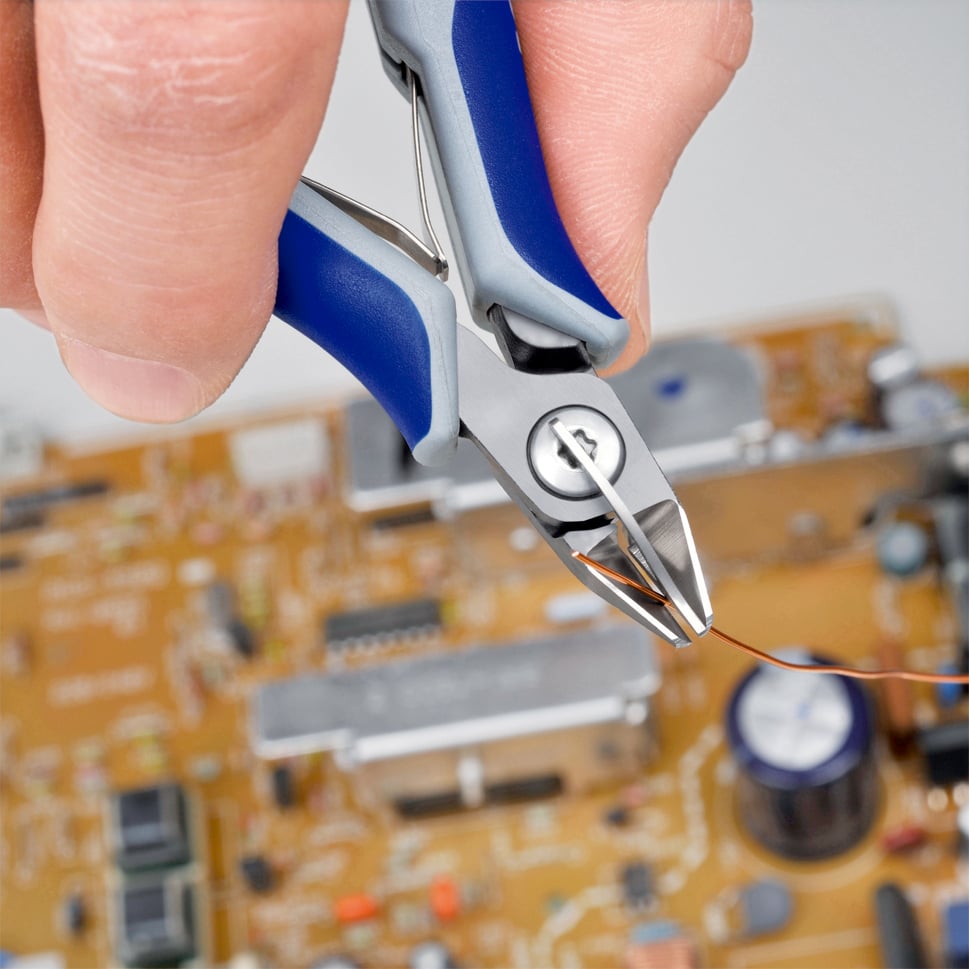

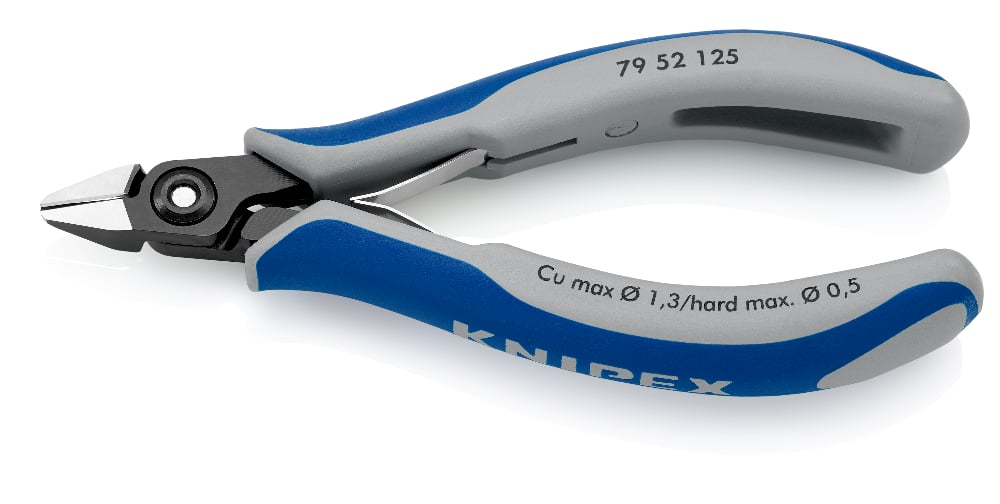

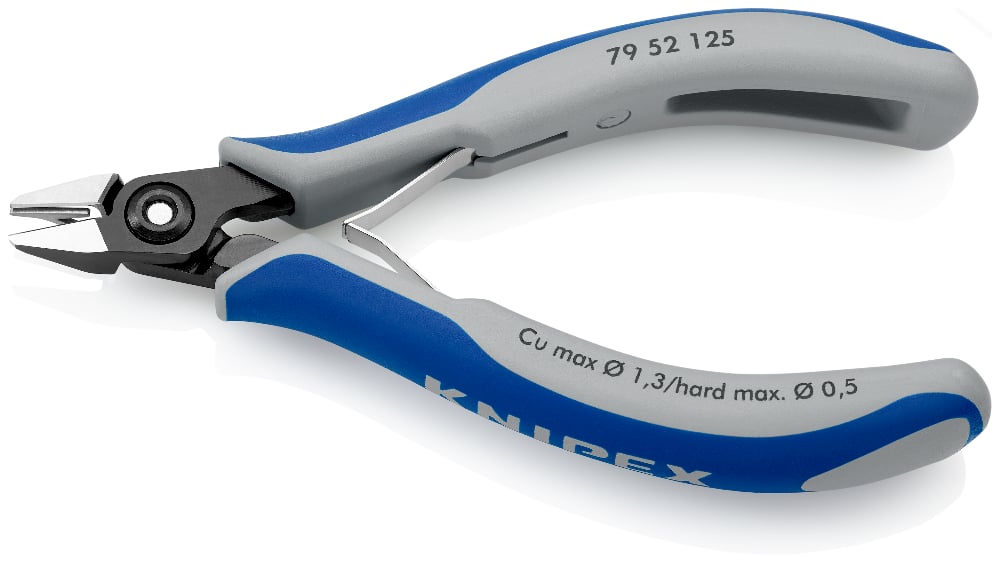

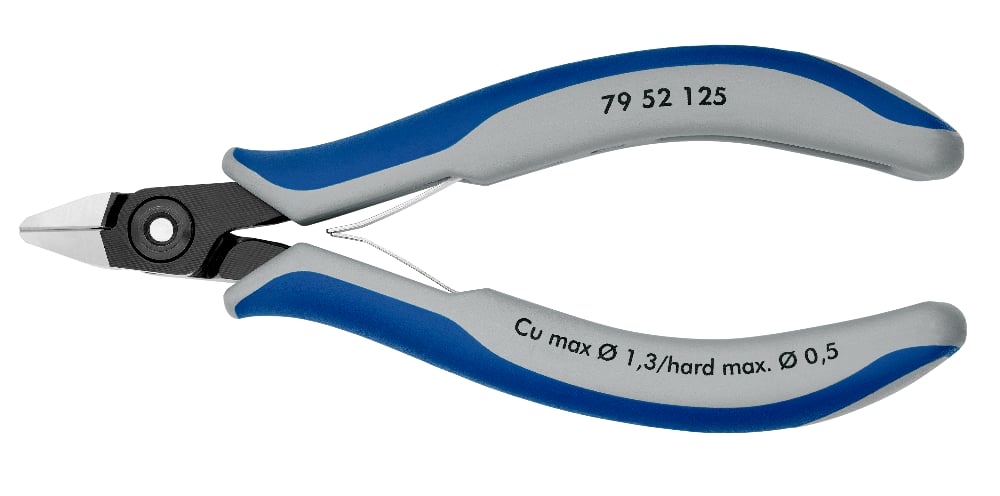

Precision Electronics Diagonal Cutter

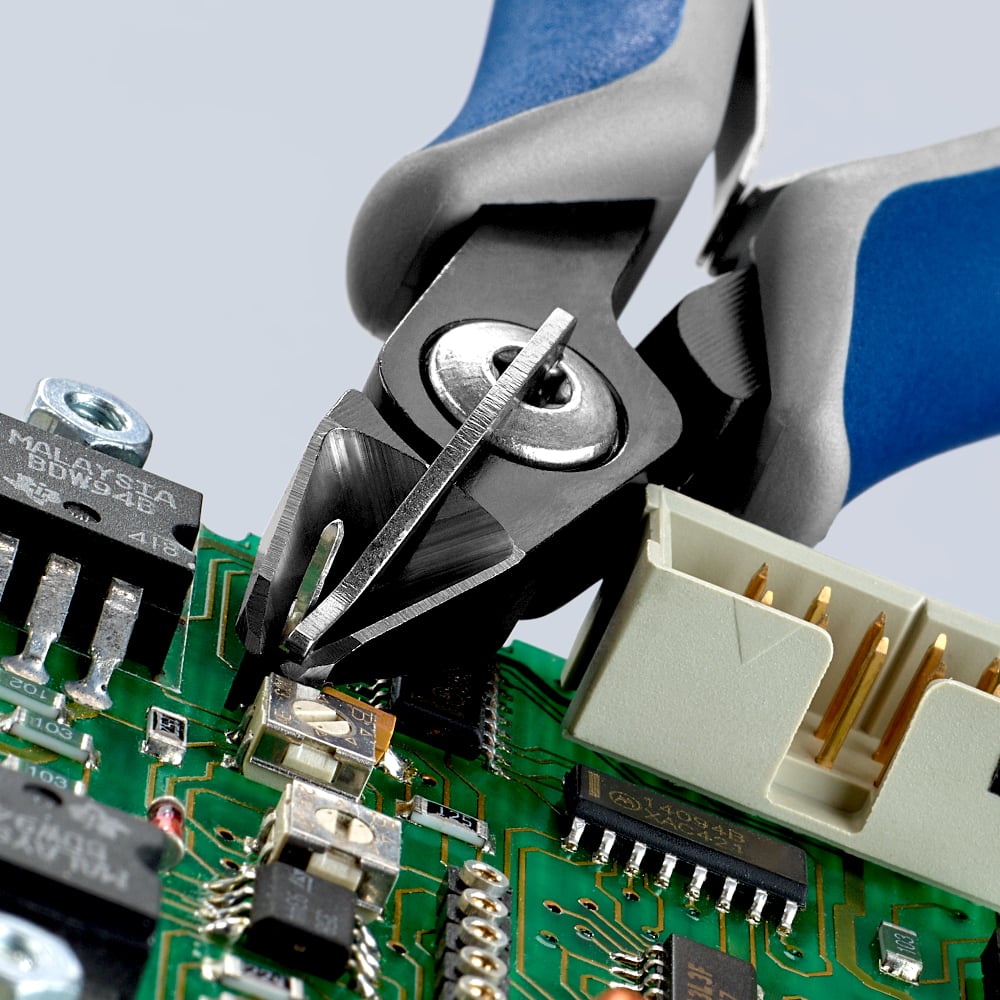

• Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics

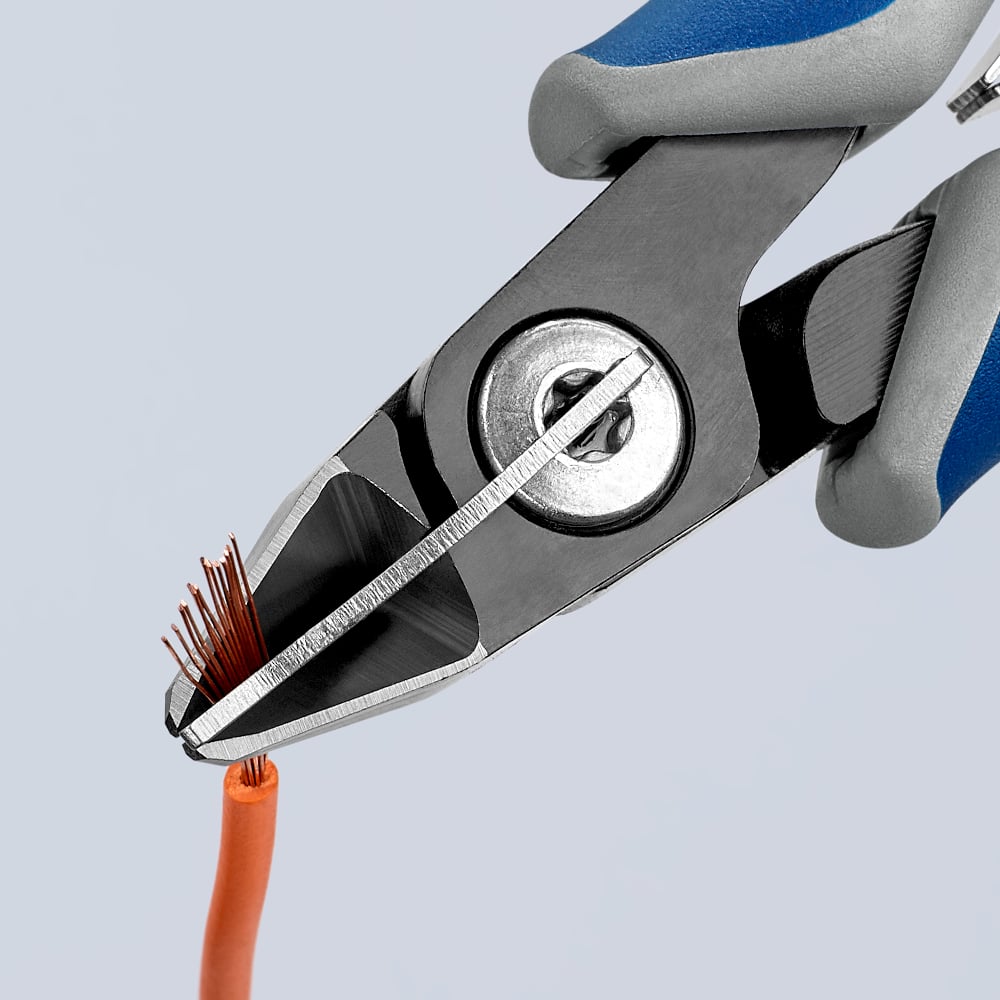

• Very precisely ground and sharp cutting edges with very small bevels for exact cutting on delicate electronic components; also available without bevel for flush cutting
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 64 HRC
• Approx. 20% lighter than conventional electronics pliers
• Bolted joint with carefully manufactured joint surfaces for even, low-friction movement throughout the entire opening range
• Smooth-running double spring for a gentle and even opening
• Ergonomically optimised multi-component handles
• Pointed head

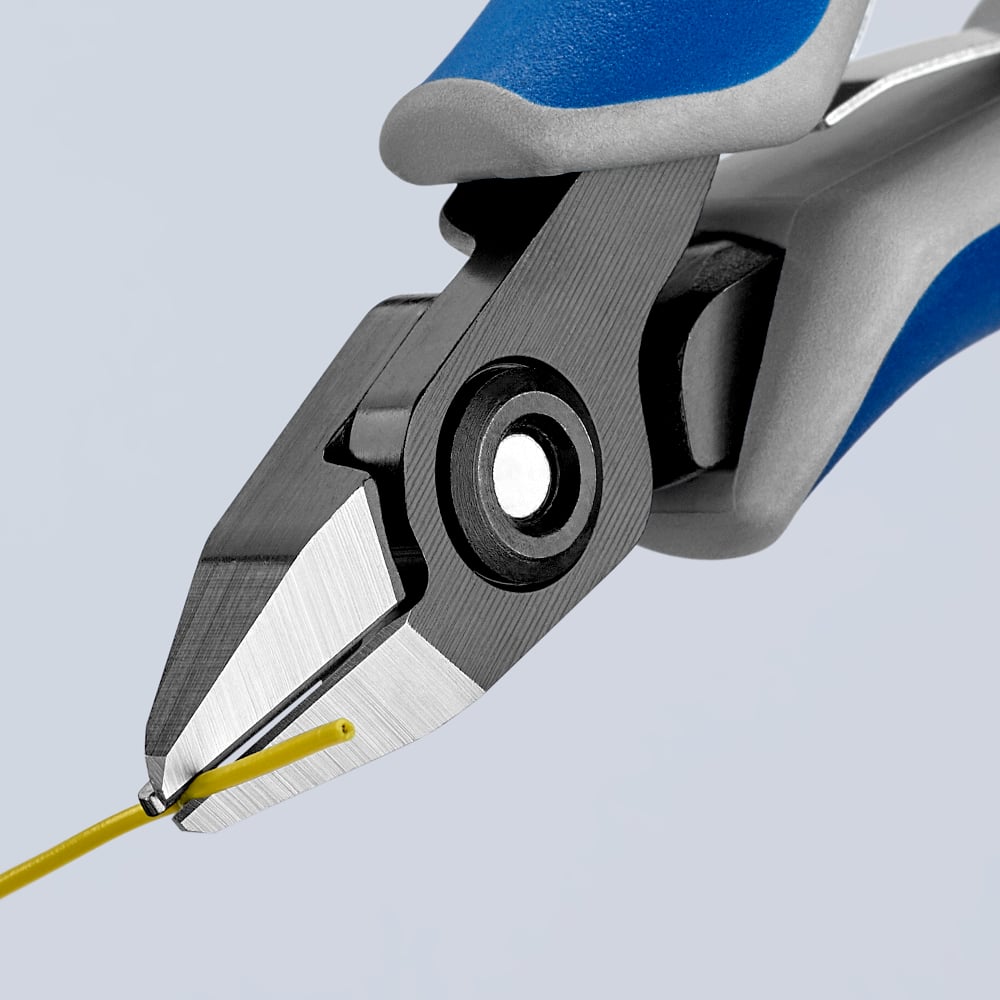

• With lead catcher – no uncontrolled loss of cut wire ends

Technical attributes

Part No. 79 52 125
EAN 4003773065135
Pliers burnished
Head polished
Handles with multi-component handles
Weight 58 g
Dimensions 125 x 49 x 19 mm
Standard DIN ISO 9654
REACH compliant does not contain SVHC
RoHS compliant not applicable
Cutting capacities medium hard wire (diameter) Ø 0.9 mm
Cutting capacities hard wire (diameter) Ø 0.5 mm
Cutting capacities soft wire (diameter) Ø 01 mm

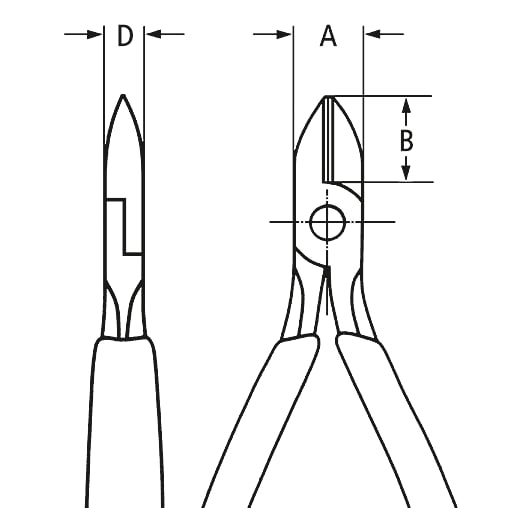

Jaw length (B) 11 mm
Jaw thickness (joint) (D) 6.5 mm
Head width (A) 11 mm
