79 02 125
Precision Electronics Diagonal Cutter
• Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
• Very precisely ground and sharp cutting edges with very small bevels for exact cutting on delicate electronic components; also available without bevel for flush cutting
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 64 HRC
• Approx. 20% lighter than conventional electronics pliers
• Bolted joint with carefully manufactured joint surfaces for even, low-friction movement throughout the entire opening range
• Smooth-running double spring for a gentle and even opening
• Ergonomically optimised multi-component handles
• Round head
Technical attributes
| Part No. | 79 02 125 |
|---|---|
| EAN | 4003773061281 |
| Pliers | burnished |
| Head | polished |
| Handles | with multi-component handles |
| Weight | 59 g |
| Dimensions | 125 x 59 x 16 mm |
| Standard | DIN ISO 9654 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities medium hard wire (diameter) | Ø 1.3 mm |
| Cutting capacities hard wire (diameter) | Ø 0.7 mm |
| Cutting capacities soft wire (diameter) | Ø 01 mm |

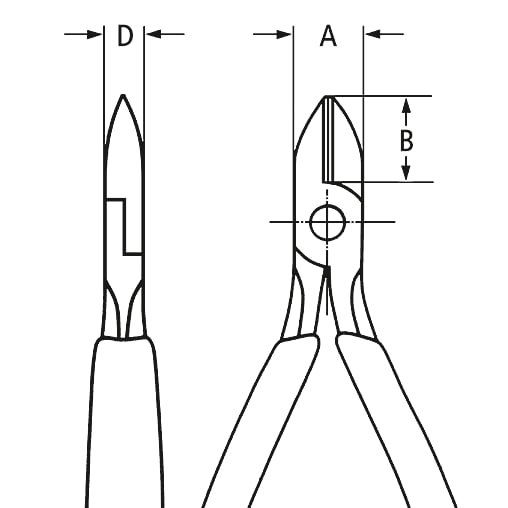

| Jaw length (B) | 10 mm |
| Jaw thickness (joint) (D) | 6.5 mm |
| Head width (A) | 11 mm |
