79 02 125 S1

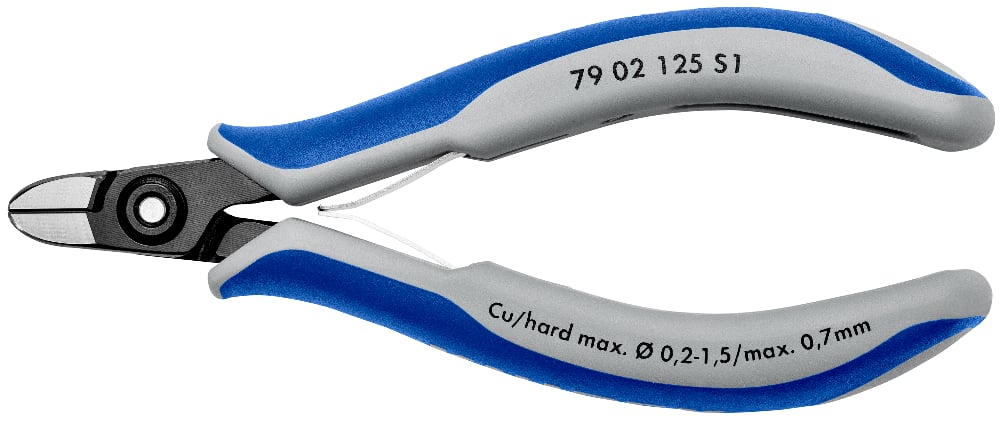

Precision Electronics Diagonal Cutter

• Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
• Very precisely ground and sharp cutting edges with very small bevels for exact cutting on delicate electronic components; also available without bevel for flush cutting
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 64 HRC
• Approx. 20% lighter than conventional electronics pliers
• Bolted joint with carefully manufactured joint surfaces for even, low-friction movement throughout the entire opening range
• Smooth-running double spring for a gentle and even opening
• Ergonomically optimised multi-component handles
• Round head
• All edges on the head are rounded – reduces the risk of damage to the insulation when making corrections to cable harnesses.

Technical attributes

Part No. 79 02 125 S1
EAN 4003773071808
Pliers burnished
Head polished
Handles with multi-component handles
Weight 59 g
Dimensions 125 x 59 x 19 mm
Standard DIN ISO 9654
REACH compliant does not contain SVHC
RoHS compliant not applicable
Cutting capacities medium hard wire (diameter) Ø 1.3 mm
Cutting capacities hard wire (diameter) Ø 0.7 mm
Cutting capacities soft wire (diameter) Ø 01 mm
Jaw length (B) 10 mm
Jaw thickness (joint) (D) 6.5 mm
Head width (A) 11 mm
