78 31 125

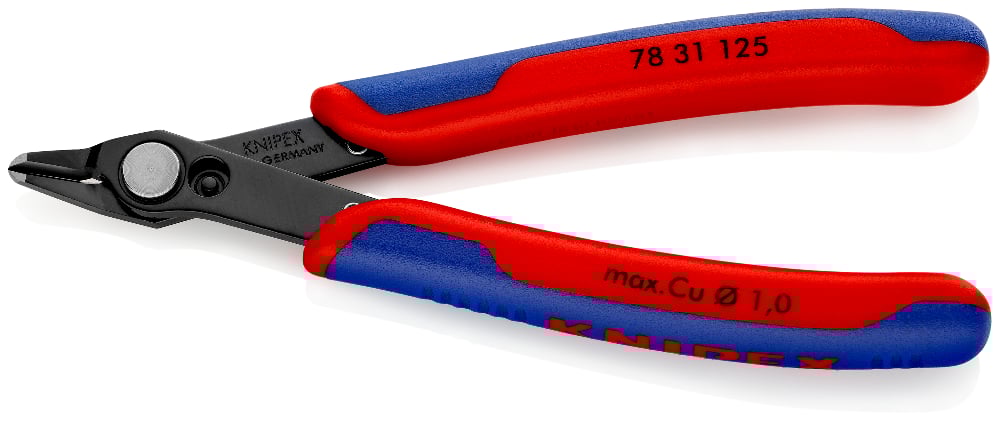

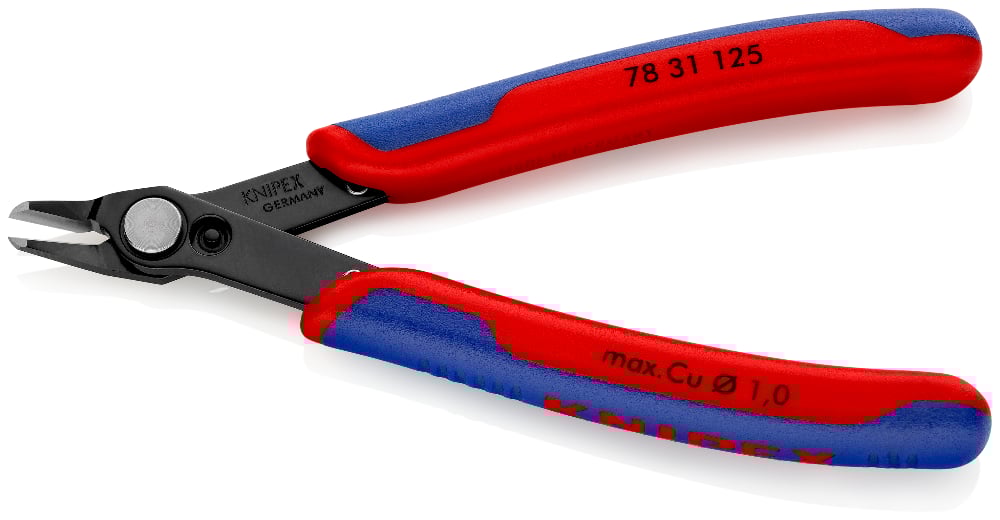

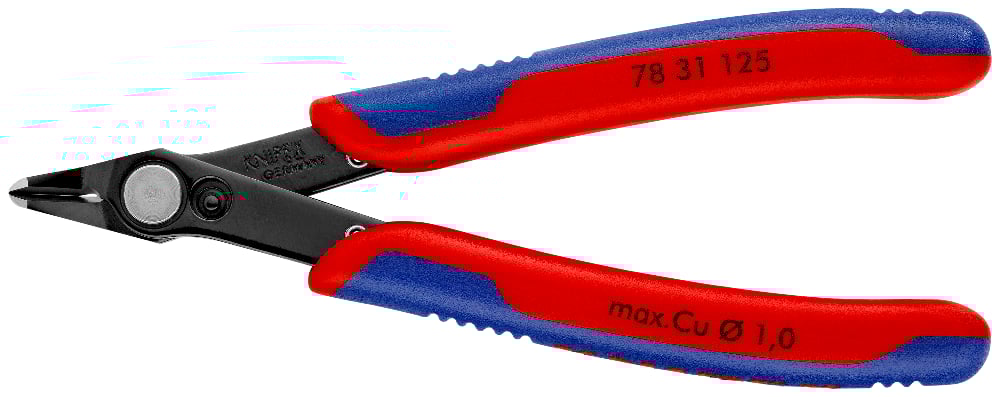

Electronic Super Knips®
• Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
• Ground, very sharp cutting edges without bevel
• Precisely shaped tips cut wires close to a surface from Ø 0.2 mm
• Shear cut with controlled micro cutting edge offset for the most precise cutting of even the thinnest of wires and for a long service life
• Joint with stainless steel rivet
• Extremely smooth movement for minimum operator fatigue
• With opening spring and opening limiter
• With narrow head
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 60 HRC
• Special tool steel, burnished
Technical attributes
| Part No. | 78 31 125 |
|---|---|
| EAN | 4003773039778 |
| Pliers | burnished |
| Head | burnished |
| Handles | with multi-component handles |
| Weight | 55 g |
| Dimensions | 125 x 60 x 13 mm |
| Standard | DIN ISO 9654 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities soft wire (diameter) | Ø 01 mm |

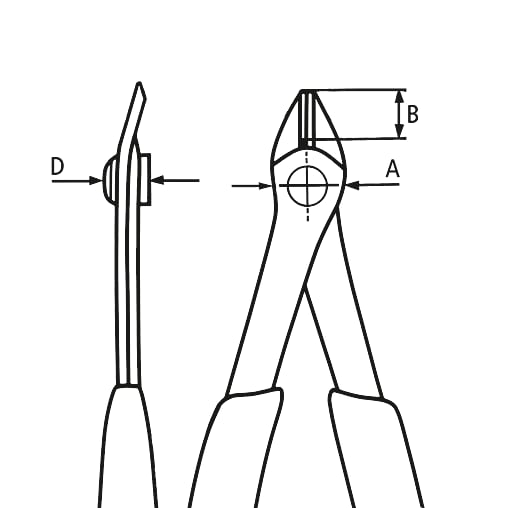

| Jaw length (B) | 9 mm |
| Jaw thickness (joint) (D) | 7.5 mm |
| Head width (A) | 12.5 mm |
