78 13 125 ESD

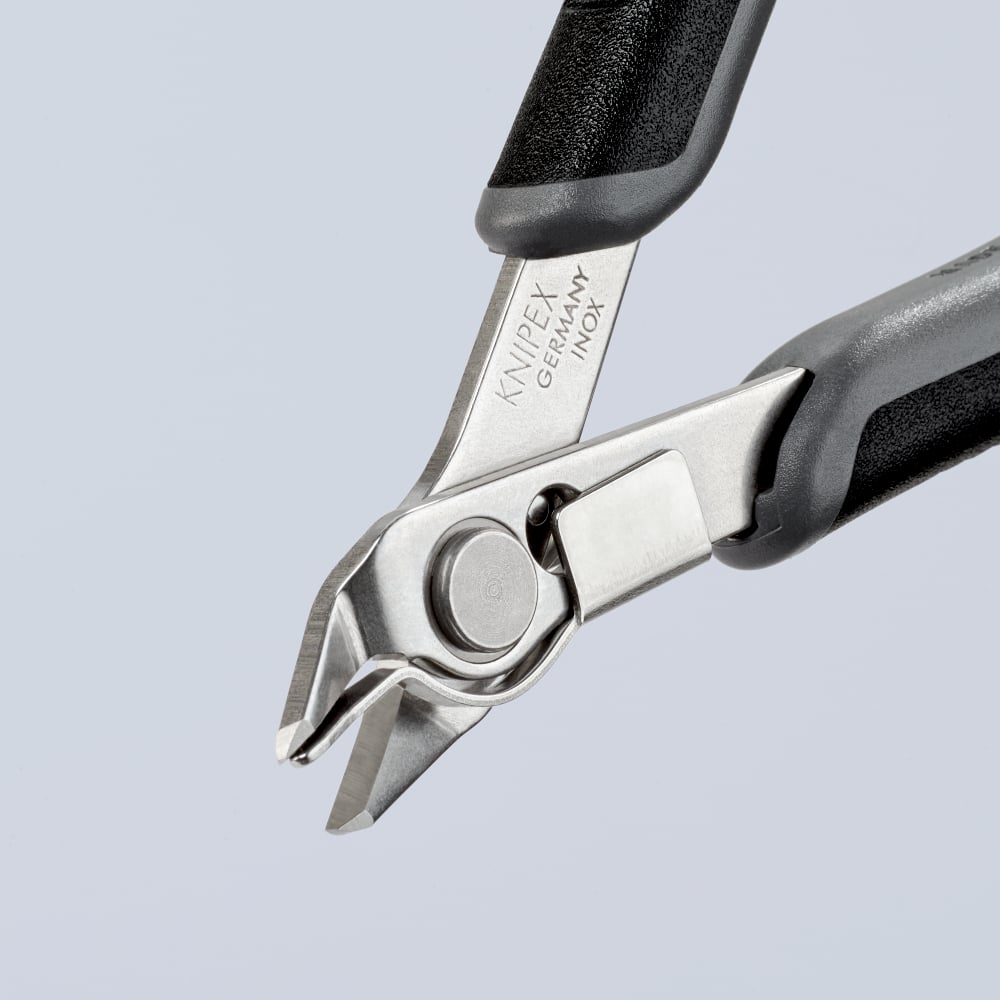

Electronic Super Knips® ESD
• Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
• Electrically discharging handles – dissipative
• Ground, very sharp cutting edges without bevel
• Shear cut with controlled micro cutting edge offset for the most precise cutting of even the thinnest of wires and for a long service life
• Precisely shaped tips cut wires close to a surface from Ø 0.2 mm
• Joint with stainless steel rivet
• Extremely smooth movement for minimum operator fatigue
• With opening spring and opening limiter
• With lead catcher – no uncontrolled loss of cut wire ends
• Cutting edge hardness approx. 54 HRC
• INOX tool steel
Technical attributes
| Part No. | 78 13 125 ESD |
|---|---|
| EAN | 4003773025153 |
| Head | polished |
| Handles | with multi-component handles |
| Weight | 57 g |
| Dimensions | 125 x 61 x 12 mm |
| Standard | DIN ISO 9654 DIN EN 61 340-5 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities medium hard wire (diameter) | Ø 1.0 mm |
| Cutting capacities soft wire (diameter) | Ø 01 mm |

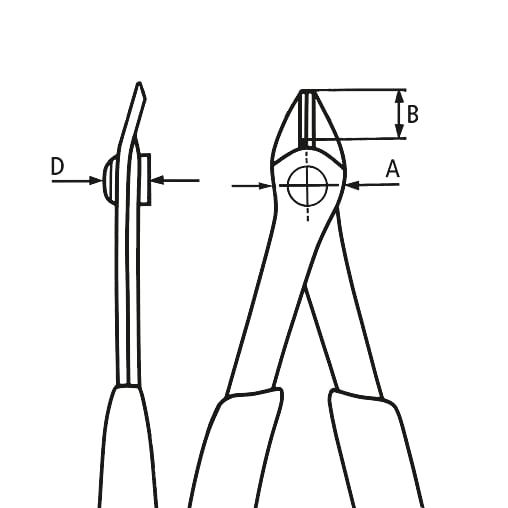

| Jaw length (B) | 9 mm |
| Jaw thickness (joint) (D) | 7.5 mm |
| Head width (A) | 13.5 mm |
| ESD | yes |
