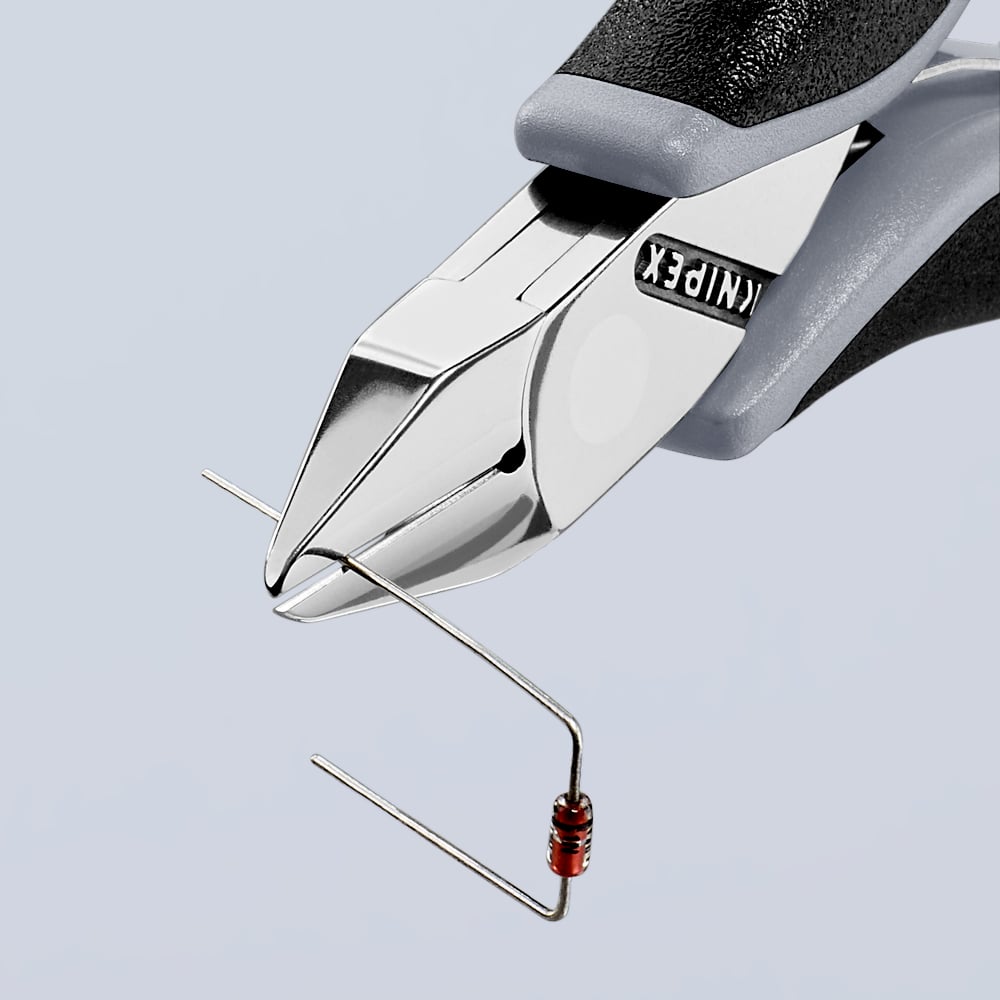

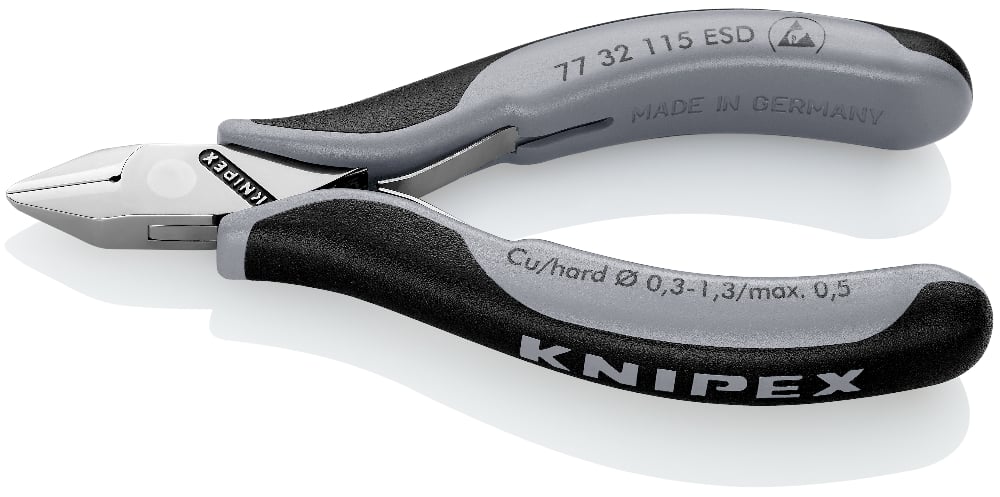

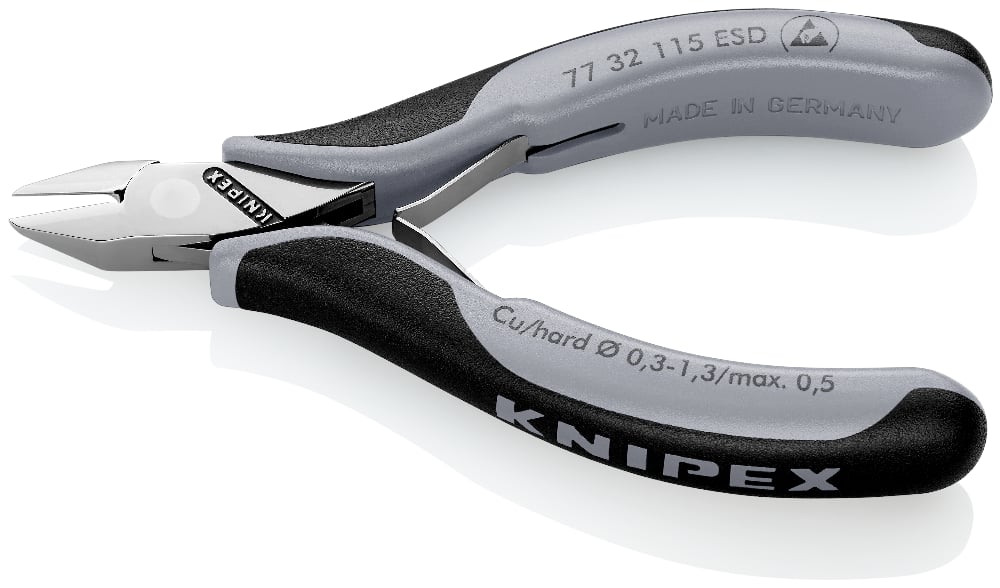

77 32 115 ESD
Electronics Diagonal Cutters ESD
• Durable, load-optimised design with backlash-free box joint
• High, slim sleeves for fine and comfortable gripping between thumb and index finger
• Less physical effort due to very high transmission ratio
• Load-optimised for a more direct feel when working
• Low-friction double spring for smooth and even opening
• The mirror polish in combination with a fine oil film provides rust protection – no circuit faults caused by peeling chrome from plated tools
• Cutters additionally laser hardened, cutter hardness at least 62 HRC

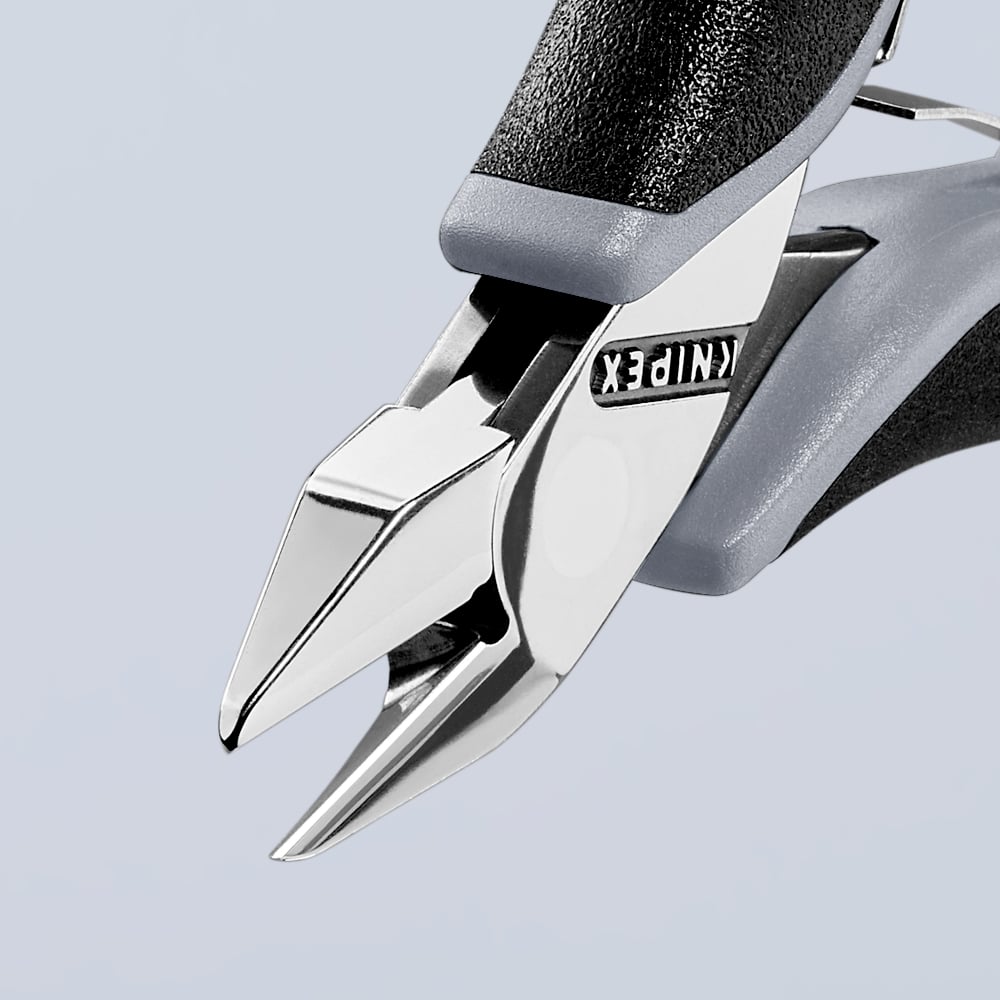

• Pointed head, with small bevel
Technical attributes
| Part No. | 77 32 115 ESD |
|---|---|
| EAN | 4003773025122 |
| Head | mirror polished |
| Handles | with multi-component handles |
| Weight | 67 g |
| Dimensions | 115 x 54 x 17 mm |
| Standard | DIN ISO 9654 DIN EN 61 340-5 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities medium hard wire (diameter) | Ø 1.0 mm |
| Cutting capacities hard wire (diameter) | Ø 0.5 mm |
| Cutting capacities soft wire (diameter) | Ø 01 mm |
| Jaw length (B) | 14 mm |
| Jaw thickness (joint) (D) | 7 mm |
| Head width (A) | 11 mm |
| ESD | yes |
