76 22 125

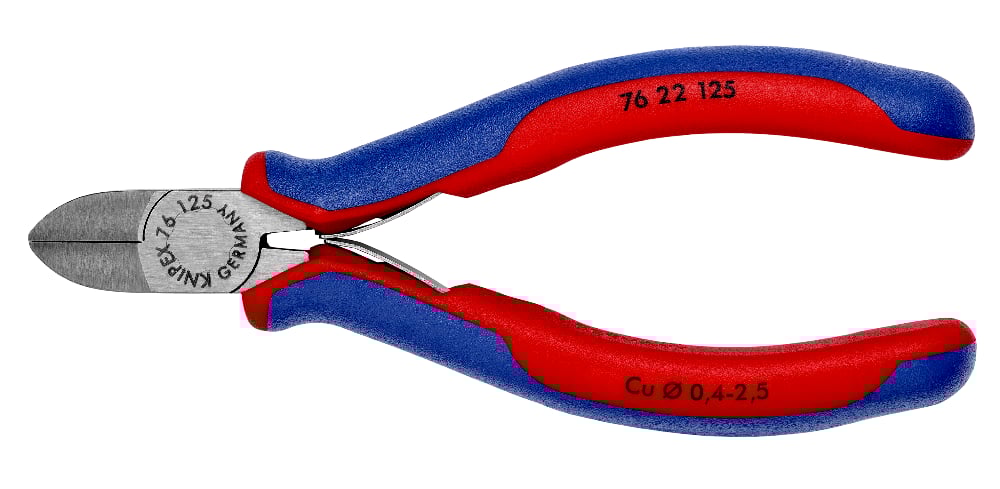

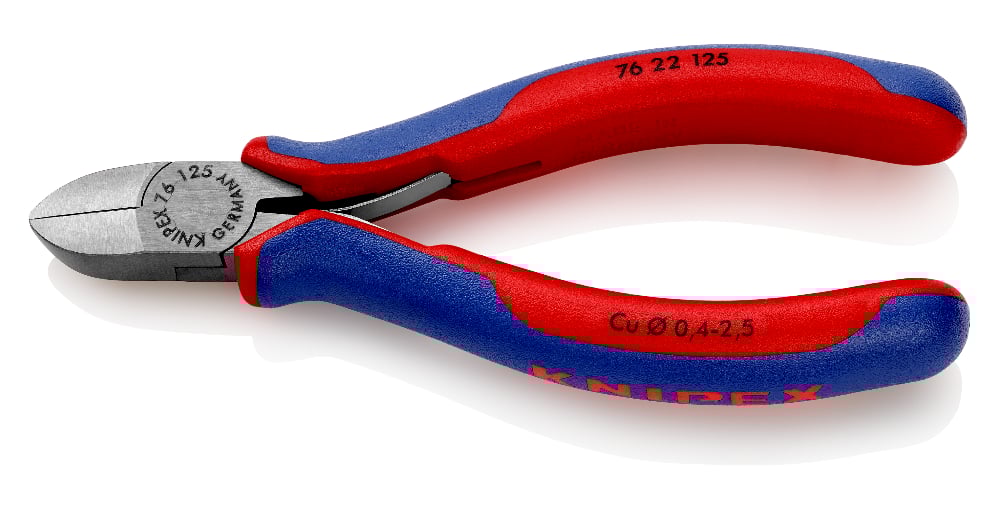

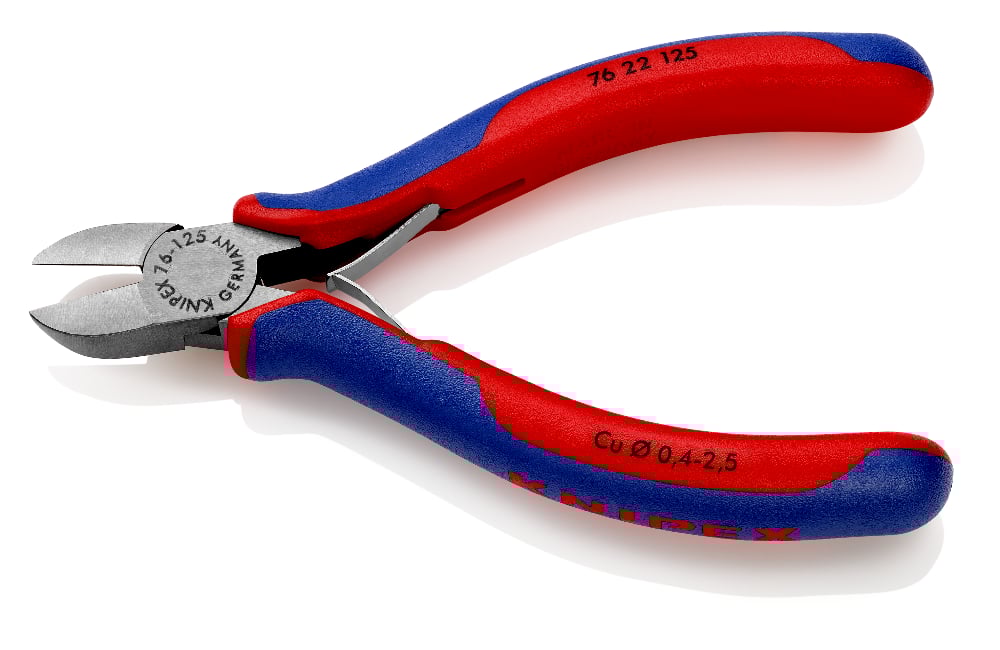

Diagonal Cutter
• With sharp, precisely aligned cutting edges
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 63 HRC
• Lap joint
Technical attributes
| Part No. | 76 22 125 |
|---|---|
| EAN | 4003773048022 |
| Pliers | black atramentized |
| Head | polished |
| Handles | with multi-component handles |
| Weight | 107 g |
| Dimensions | 125 x 57 x 19 mm |
| Standard | DIN ISO 5749 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities soft wire (diameter) | Ø 02 mm |

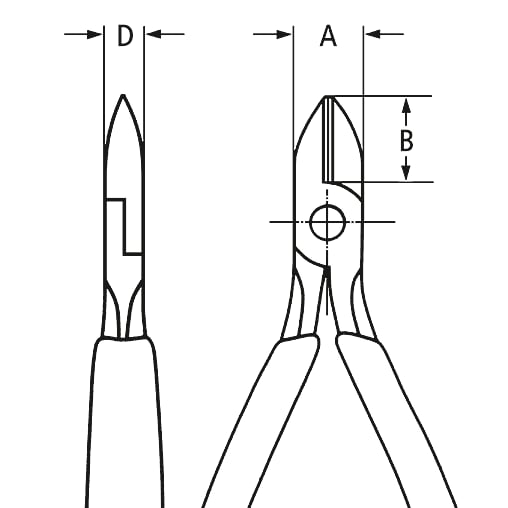

| Jaw length (B) | 16 mm |
| Jaw thickness (joint) (D) | 9 mm |
| Head width (A) | 14.5 mm |
