75 52 125

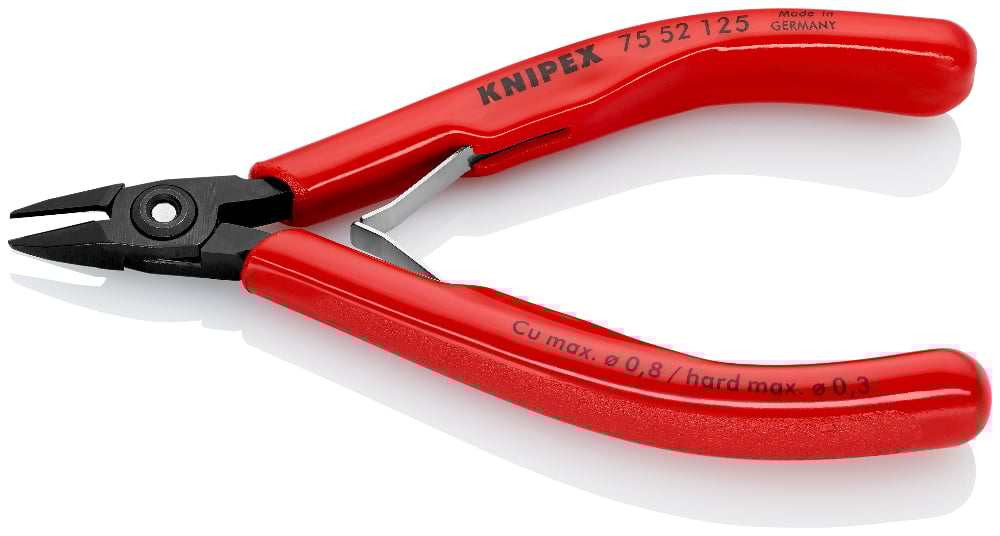

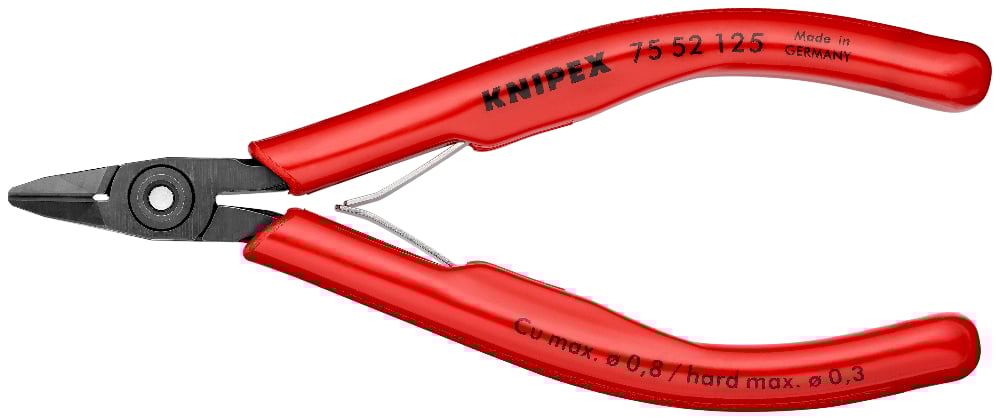

Electronics Diagonal Cutter
• For ultra fine cutting work, e.g. in electronics and fine mechanics
• With sharp, ground cutting edges for soft and hard wire and piano wire
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 62 HRC
• Low-friction double spring for smooth and even opening
Technical attributes
| Part No. | 75 52 125 |
|---|---|
| EAN | 4003773043737 |
| Pliers | burnished |
| Handles | with plastic handles |
| Weight | 75 g |
| Dimensions | 125 x 74 x 17 mm |
| Standard | DIN ISO 9654 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities medium hard wire (diameter) | Ø 0.5 mm |
| Cutting capacities hard wire (diameter) | Ø 0.3 mm |

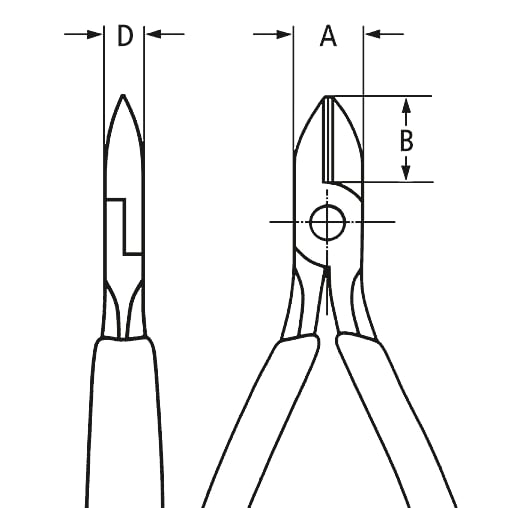

| Jaw length (B) | 14 mm |
| Jaw thickness (joint) (D) | 6.5 mm |
| Head width (A) | 10.5 mm |
