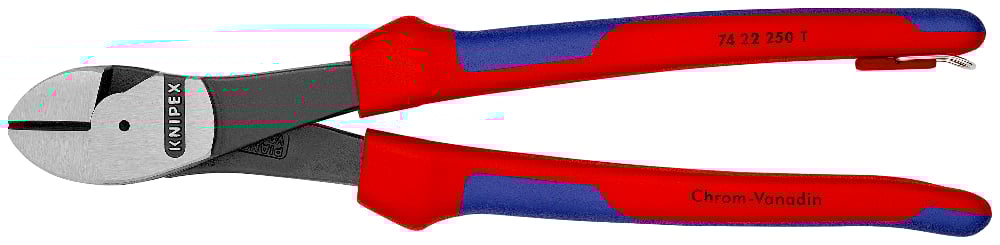

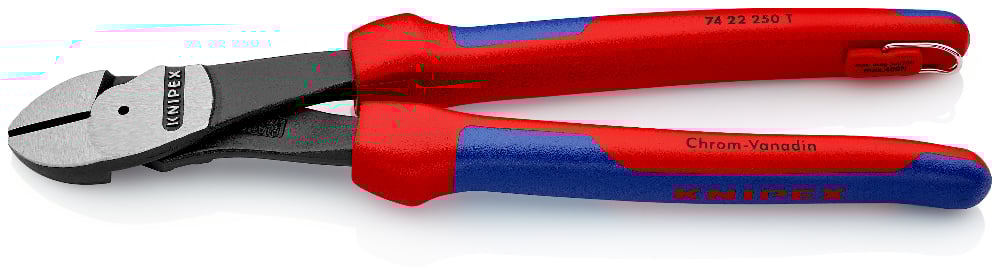

74 22 250 T
High Leverage Diagonal Cutter
• For very tough, continuous use
• High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio

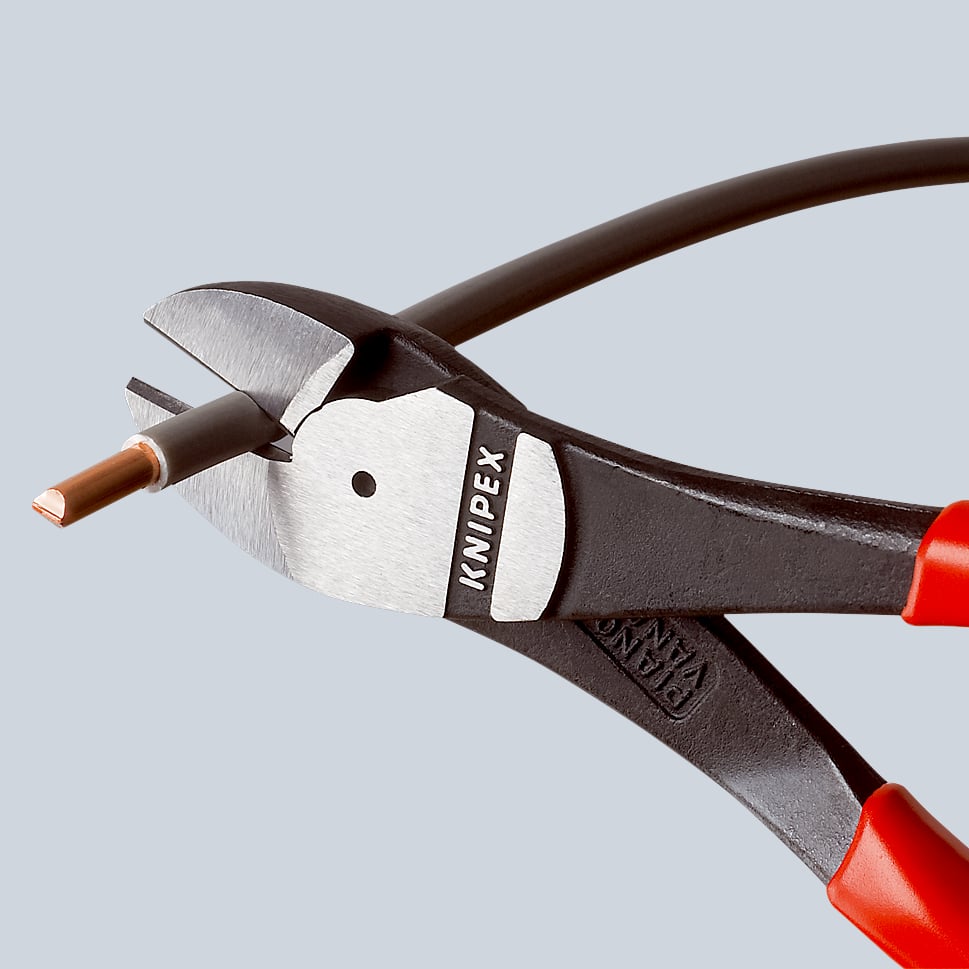

• Precision cutting edges also induction-hardened (hardness approx. 64 HRC), for all wire types including piano wire
• Pliers with tether attachment point for mounting a fall protection system
Technical attributes
| Part No. | 74 22 250 T |
|---|---|
| EAN | 4003773080114 |
| Pliers | black atramentized |
| Head | polished |
| Handles | with multi-component grips, with integrated tether attachment point for a tool tether |
| Weight | 460 g |
| Dimensions | 250 x 51 x 22 mm |
| Standard | DIN ISO 5749 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities medium hard wire (diameter) | Ø 4.6 mm |
| Cutting capacities hard wire (diameter) | Ø 3.5 mm |
| Cutting capacities piano wire (diameter) | Ø 3.0 mm |
| Drop Protection System | yes |
