74 05 250

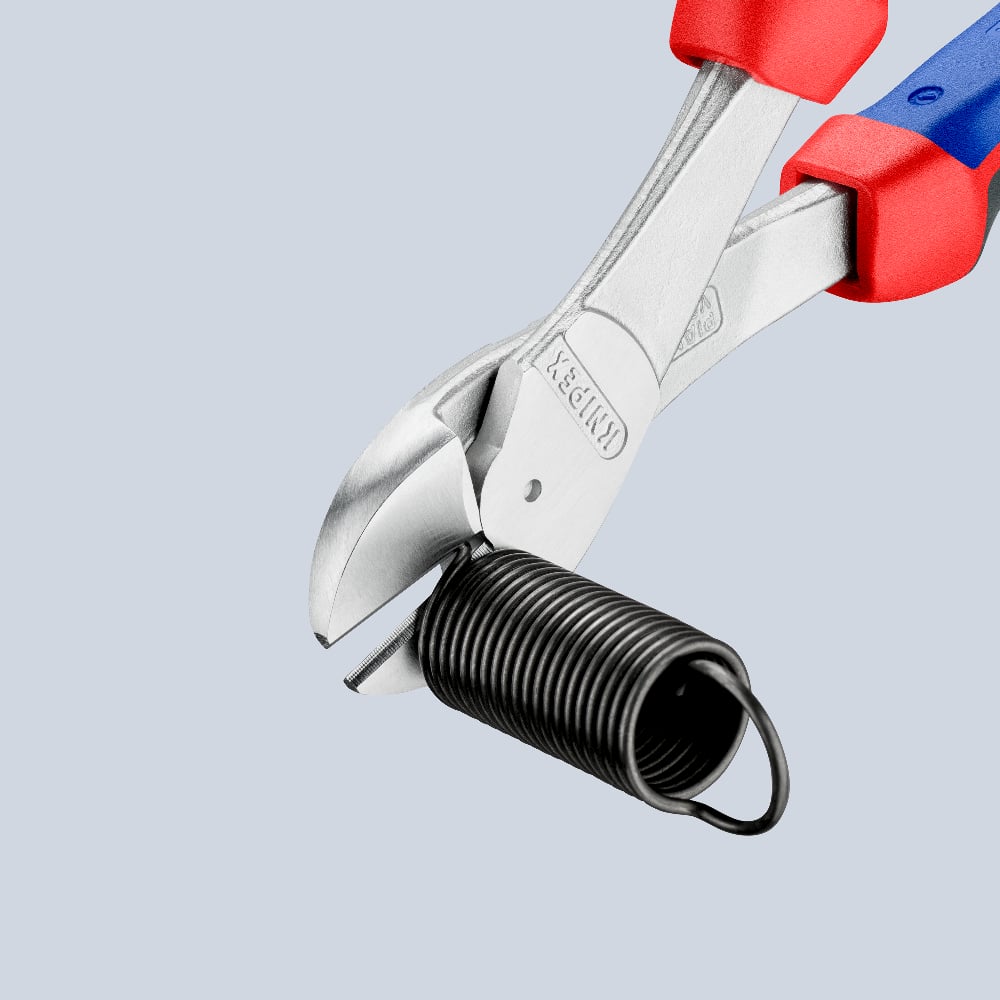

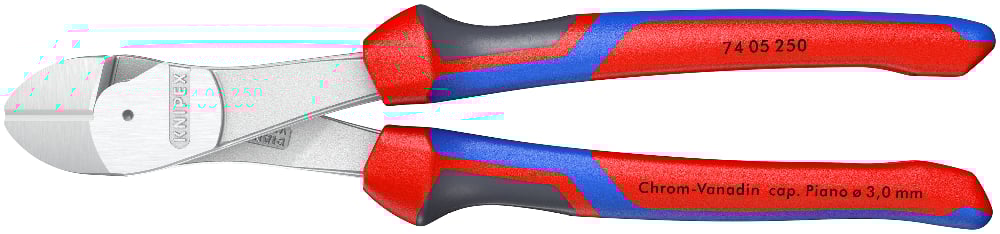

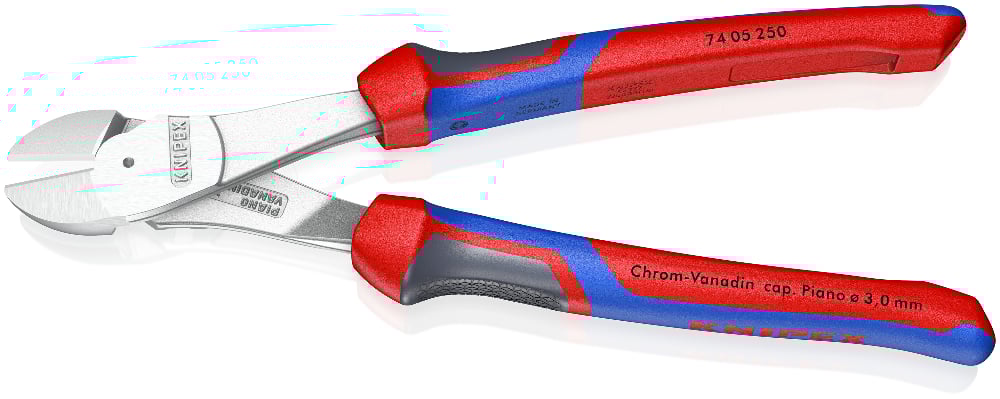

High Leverage Diagonal Cutter
• For very tough, continuous use
• High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
• Precision cutting edges also induction-hardened (hardness approx. 64 HRC), for all wire types including piano wire
• With comfort handles: consisting of three ergonomic components for optimized handling and equipped with two KNIPEXtend interfaces for extensions
Technical attributes
| Part No. | 74 05 250 |
|---|---|
| EAN | 4003773039754 |
| Pliers | chrome-plated |
| Head | chrome-plated |
| Handles | with comfort handles |
| Weight | 440 g |
| Dimensions | 250 x 56 x 26 mm |
| Standard | DIN ISO 5749 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities medium hard wire (diameter) | Ø 4.6 mm |
| Cutting capacities hard wire (diameter) | Ø 3.5 mm |
| Cutting capacities piano wire (diameter) | Ø 3.0 mm |
