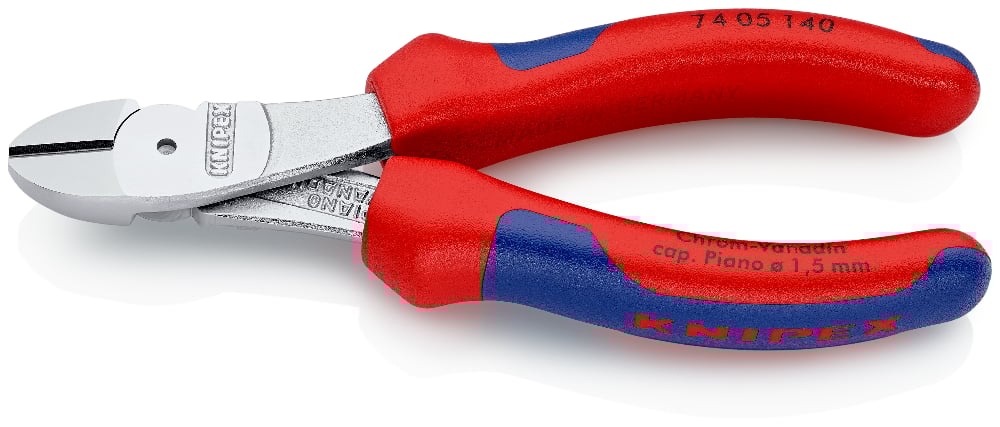

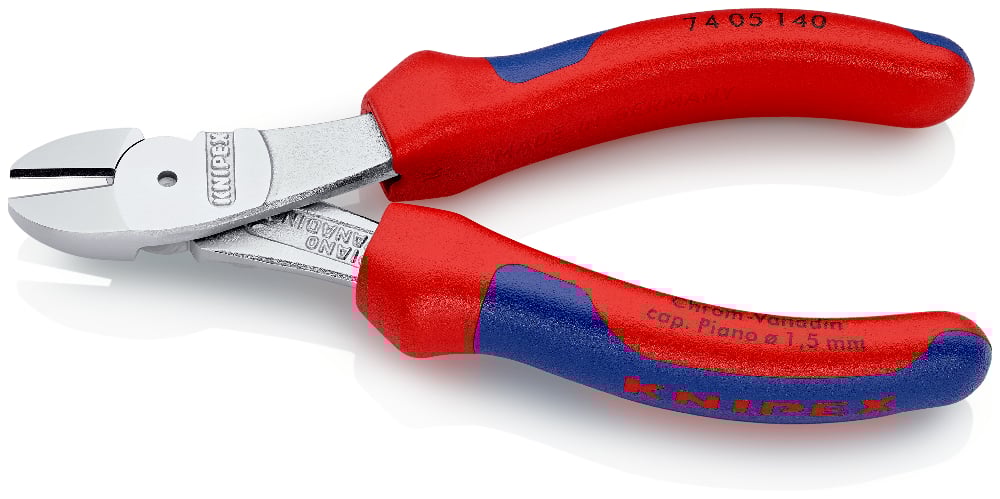

74 05 140
High Leverage Diagonal Cutter
• For very tough, continuous use
• High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio

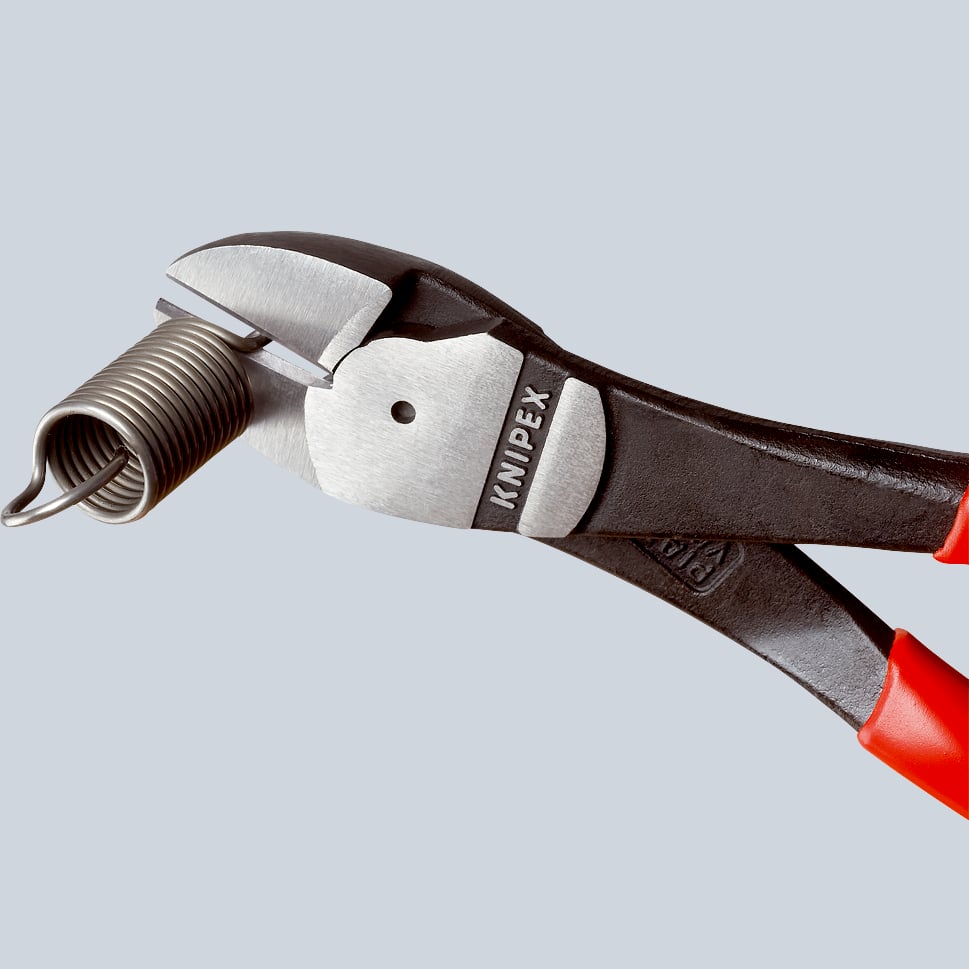

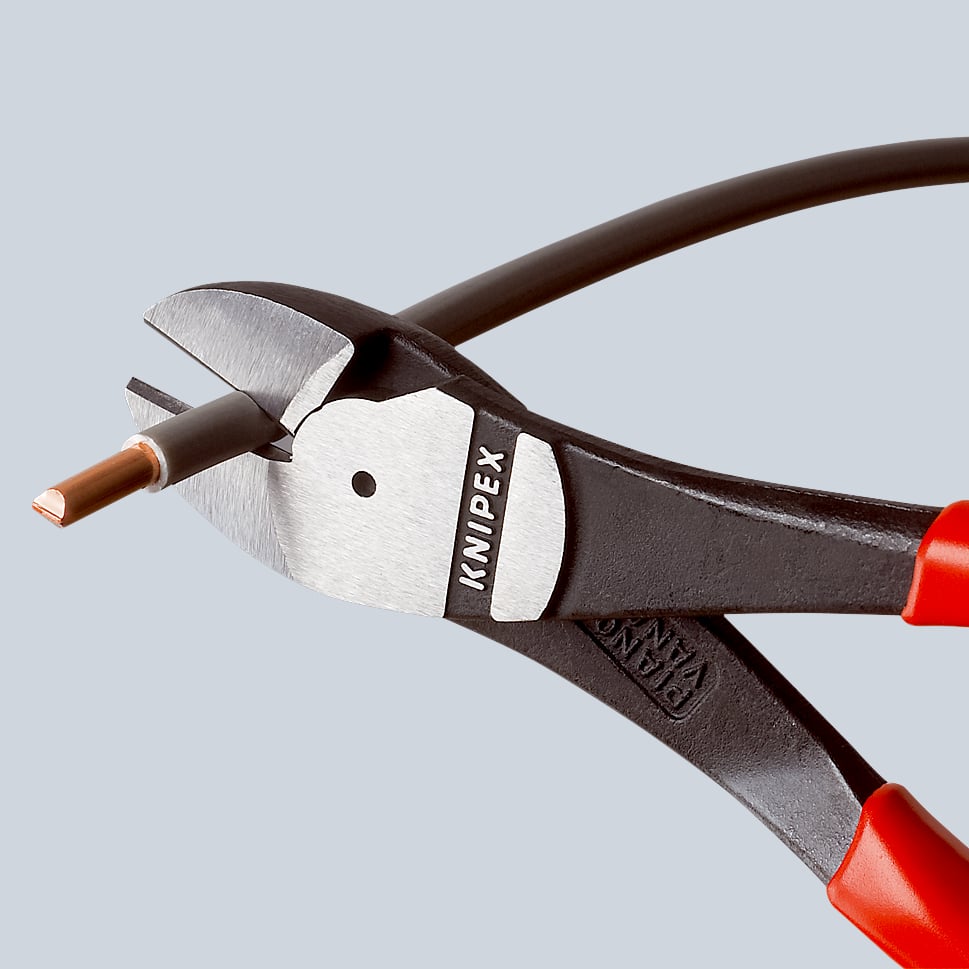

• Precision cutting edges also induction-hardened (hardness approx. 64 HRC), for all wire types including piano wire
Technical attributes
| Part No. | 74 05 140 |
|---|---|
| EAN | 4003773039617 |
| Pliers | chrome-plated |
| Head | chrome-plated |
| Handles | with multi-component handles |
| Weight | 157 g |
| Dimensions | 140 x 54 x 20 mm |
| Standard | DIN ISO 5749 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities medium hard wire (diameter) | Ø 3.1 mm |
| Cutting capacities hard wire (diameter) | Ø 2.0 mm |
| Cutting capacities piano wire (diameter) | Ø 1.5 mm |
Documents
Spare Parts
KNIPEX Quality — Made in Germany
