74 01 200

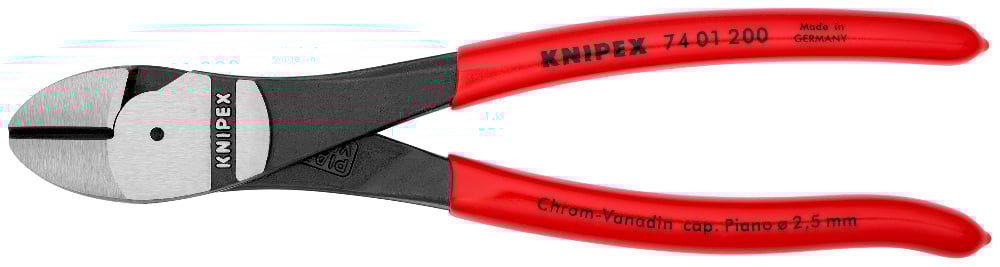

High Leverage Diagonal Cutter
• For very tough, continuous use
• High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio

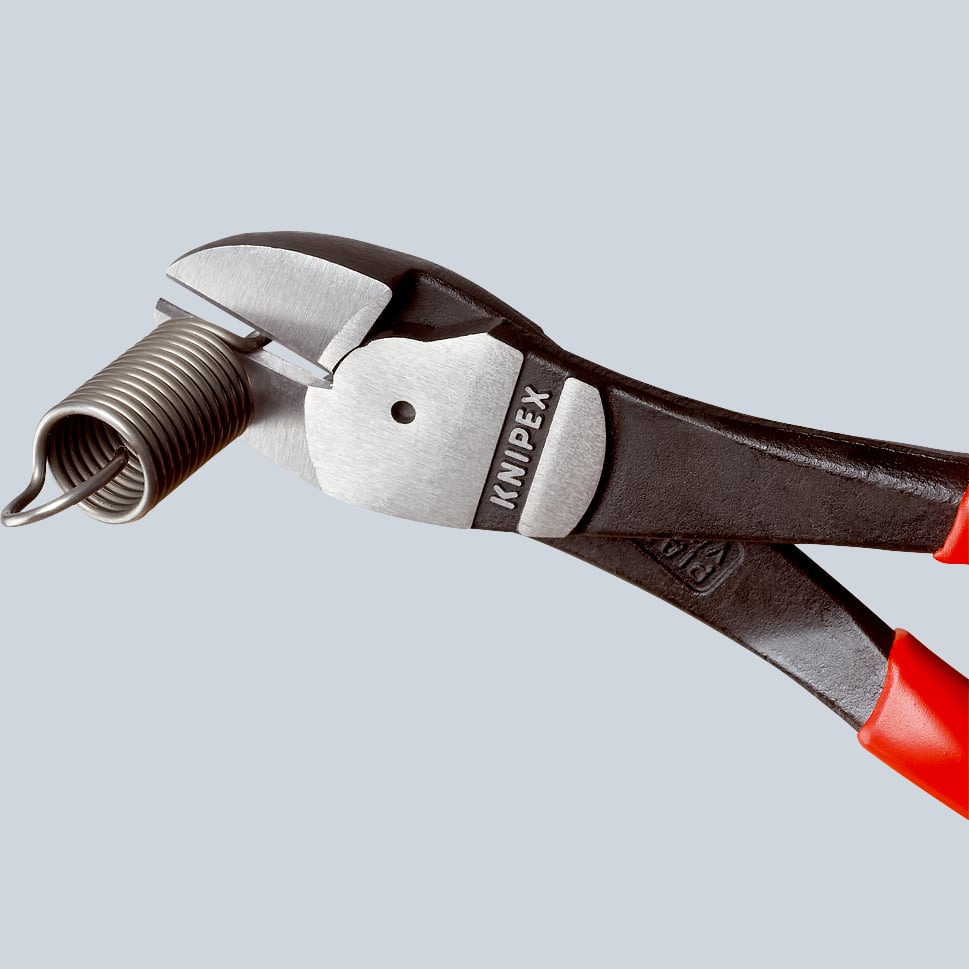

• Precision cutting edges also induction-hardened (hardness approx. 64 HRC), for all wire types including piano wire
Technical attributes
| Part No. | 74 01 200 |
|---|---|
| EAN | 4003773034056 |
| Pliers | black atramentized |
| Head | polished |
| Handles | with plastic coating |
| Weight | 263 g |
| Dimensions | 200 x 47 x 15 mm |
| Standard | DIN ISO 5749 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities medium hard wire (diameter) | Ø 4.2 mm |
| Cutting capacities hard wire (diameter) | Ø 3.0 mm |
| Cutting capacities piano wire (diameter) | Ø 2.5 mm |
