74 01 140

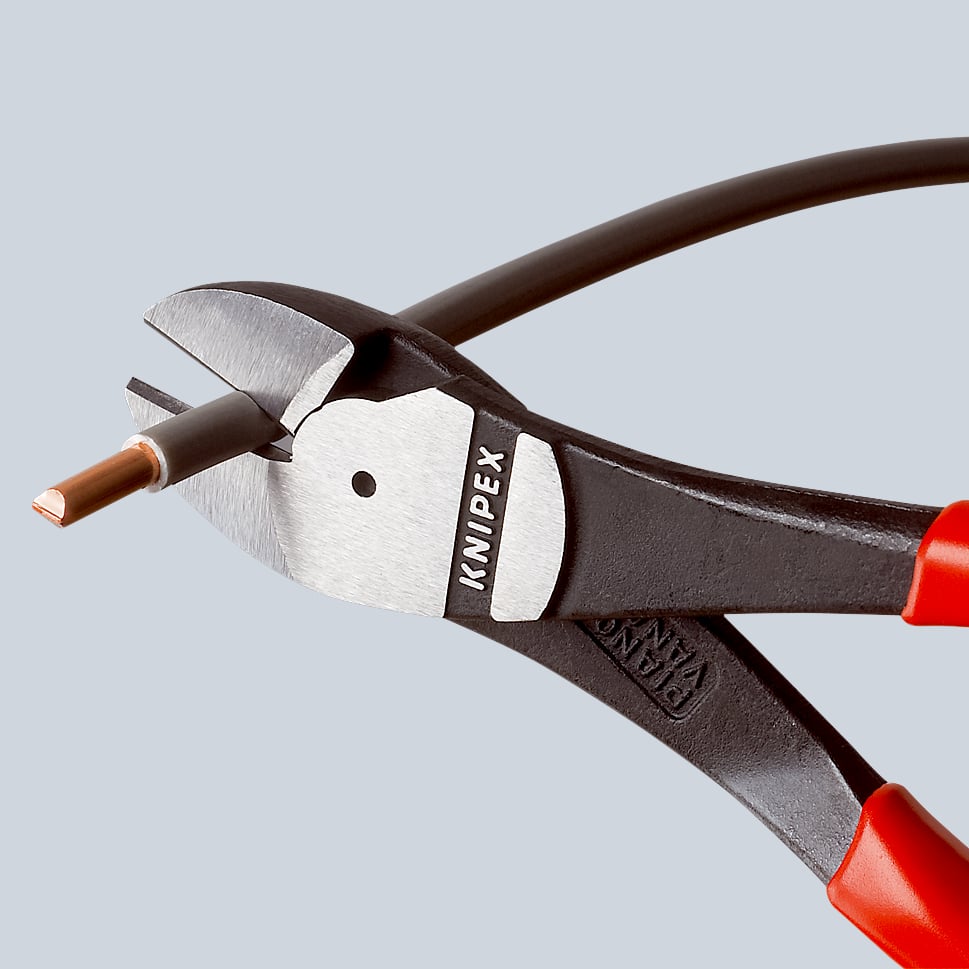

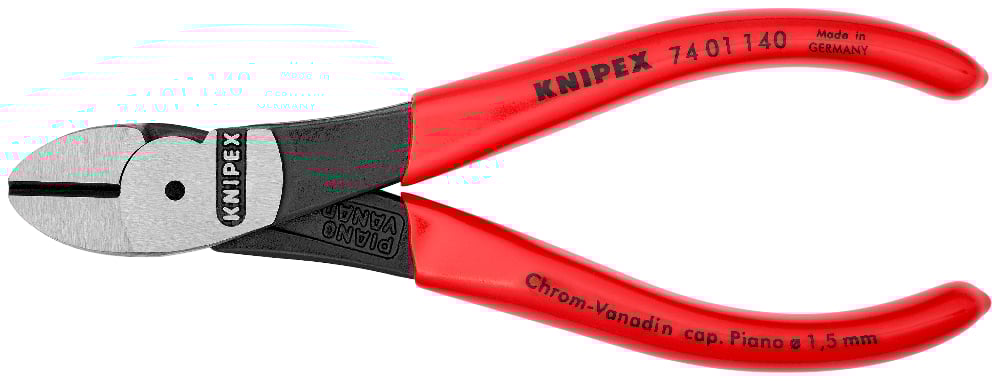

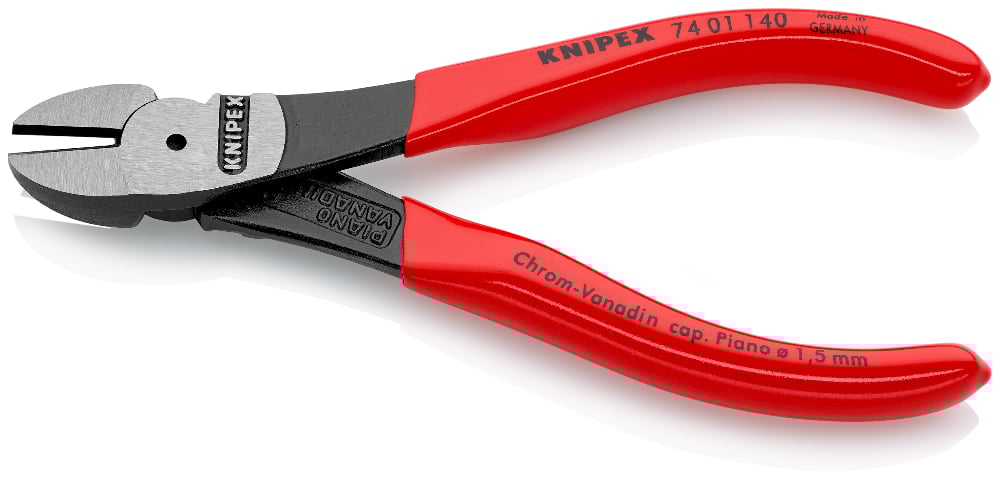

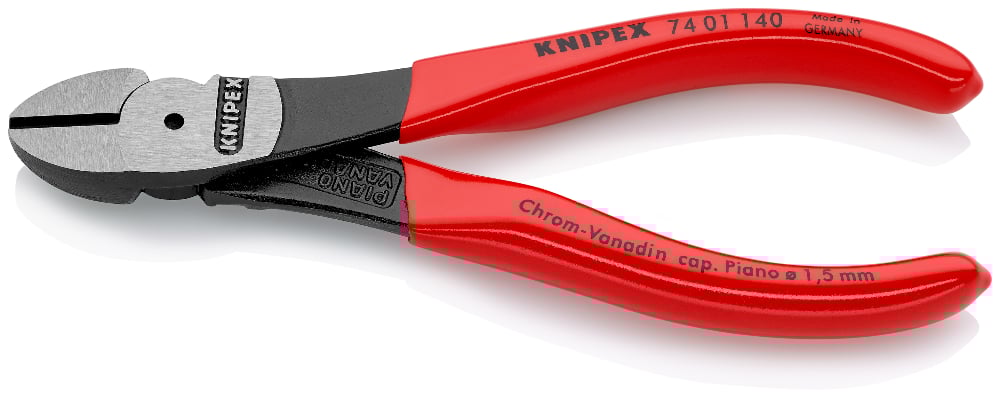

High Leverage Diagonal Cutter
• For very tough, continuous use
• High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio

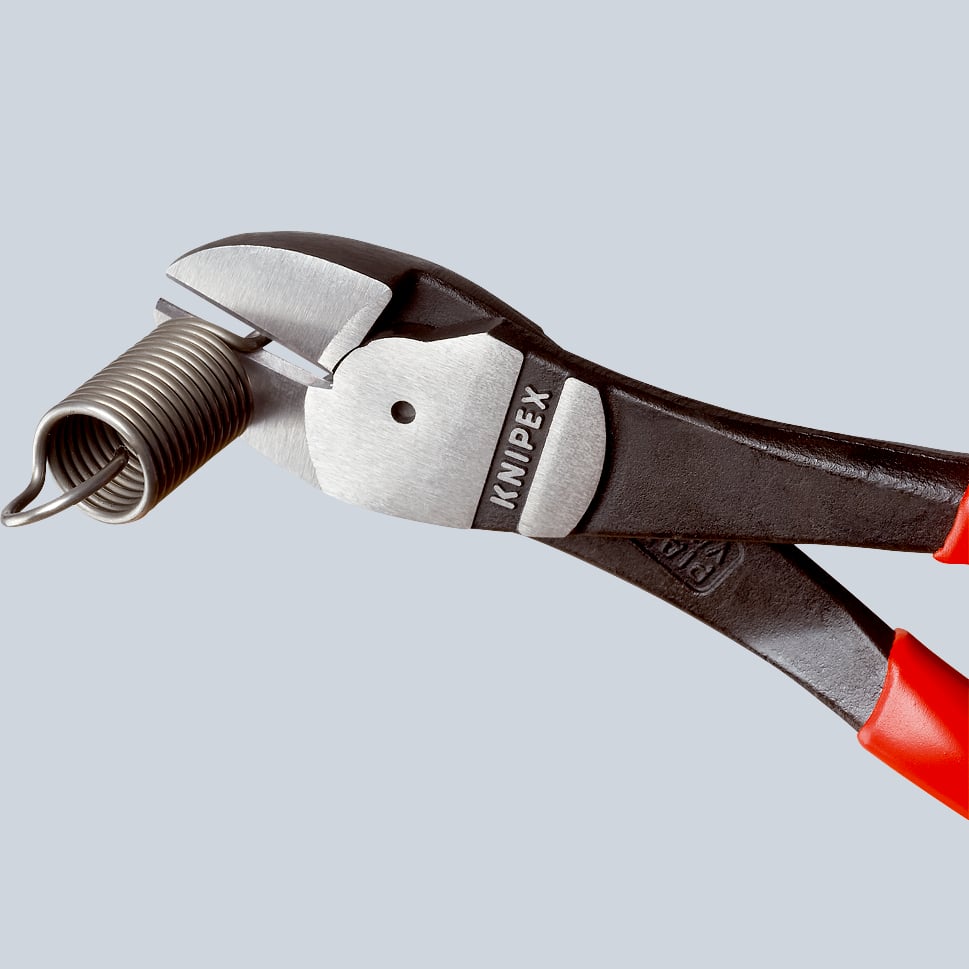

• Precision cutting edges also induction-hardened (hardness approx. 64 HRC), for all wire types including piano wire
Technical attributes
| Part No. | 74 01 140 |
|---|---|
| EAN | 4003773039747 |
| Pliers | black atramentized |
| Head | polished |
| Handles | with plastic coating |
| Weight | 131 g |
| Dimensions | 140 x 52 x 15 mm |
| Standard | DIN ISO 5749 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities medium hard wire (diameter) | Ø 3.1 mm |
| Cutting capacities hard wire (diameter) | Ø 2.0 mm |
| Cutting capacities piano wire (diameter) | Ø 1.5 mm |
