73 02 160 SB

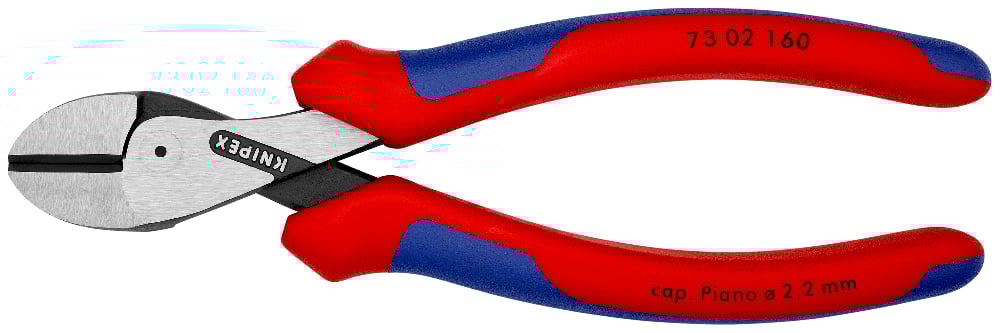

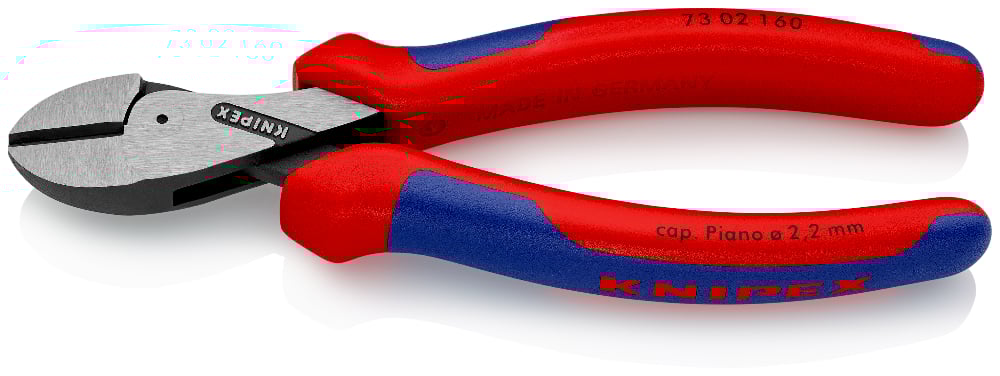

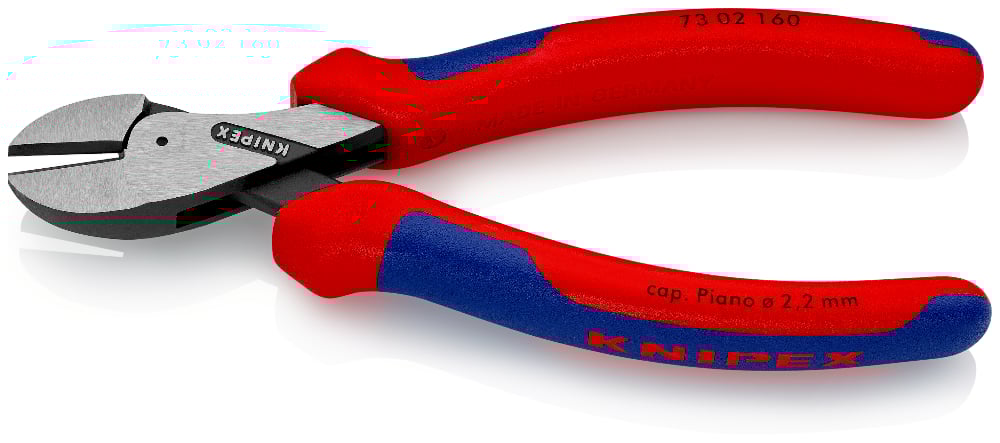

KNIPEX X-Cut®

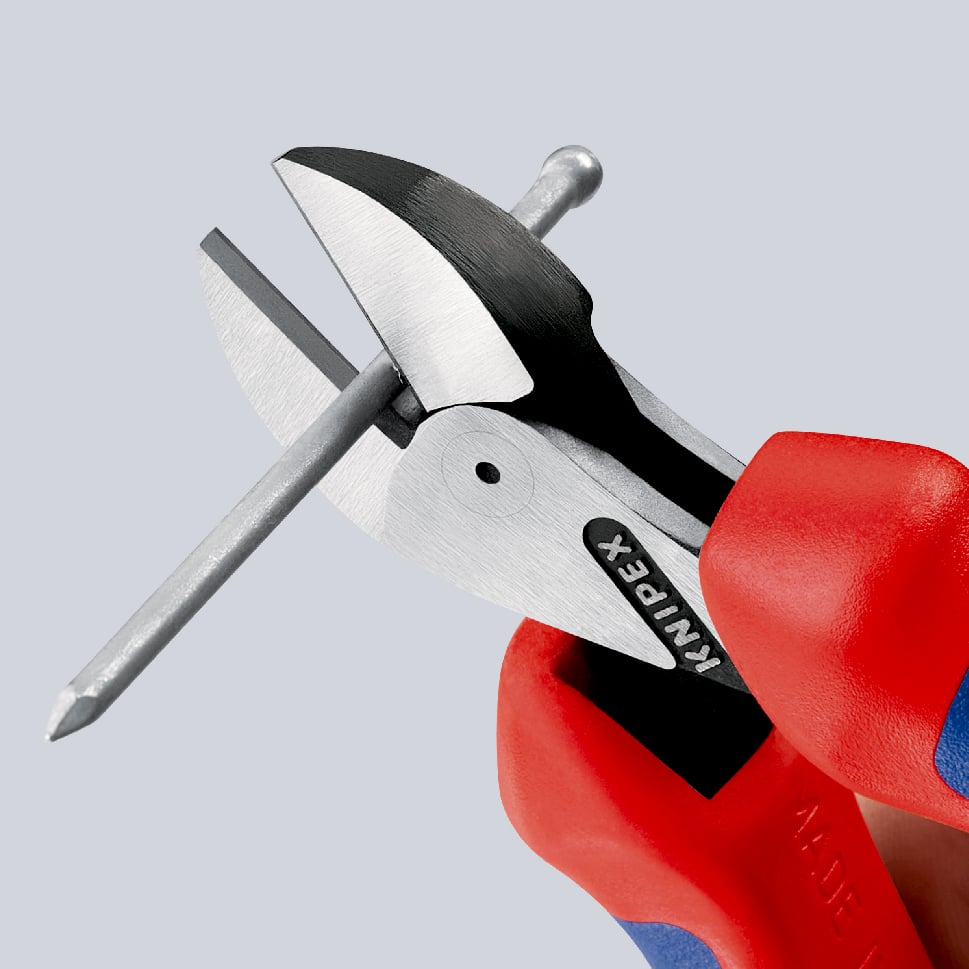

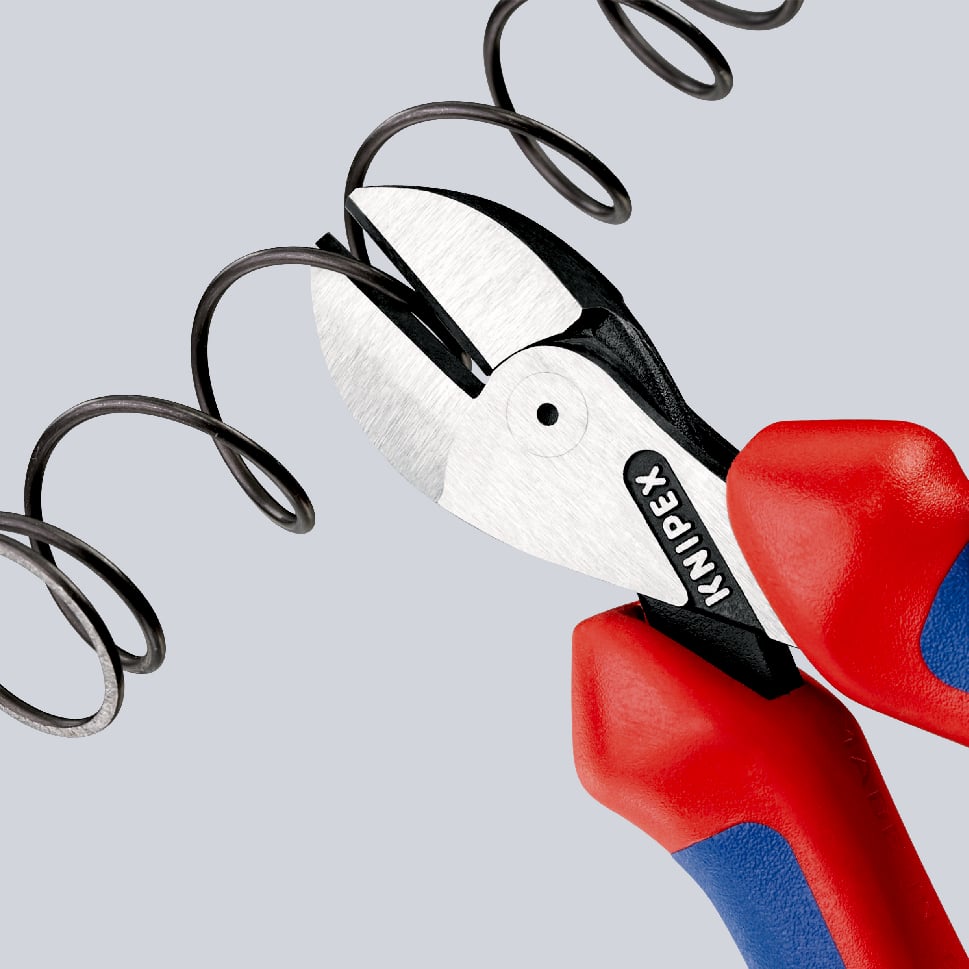

• Cuts finest strands as well as multi-core cables and piano wires
• Powerful, light and universal
• High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
• Box-joint design: highest stability with low weight
• Doubly supported joint axis for heavy duty

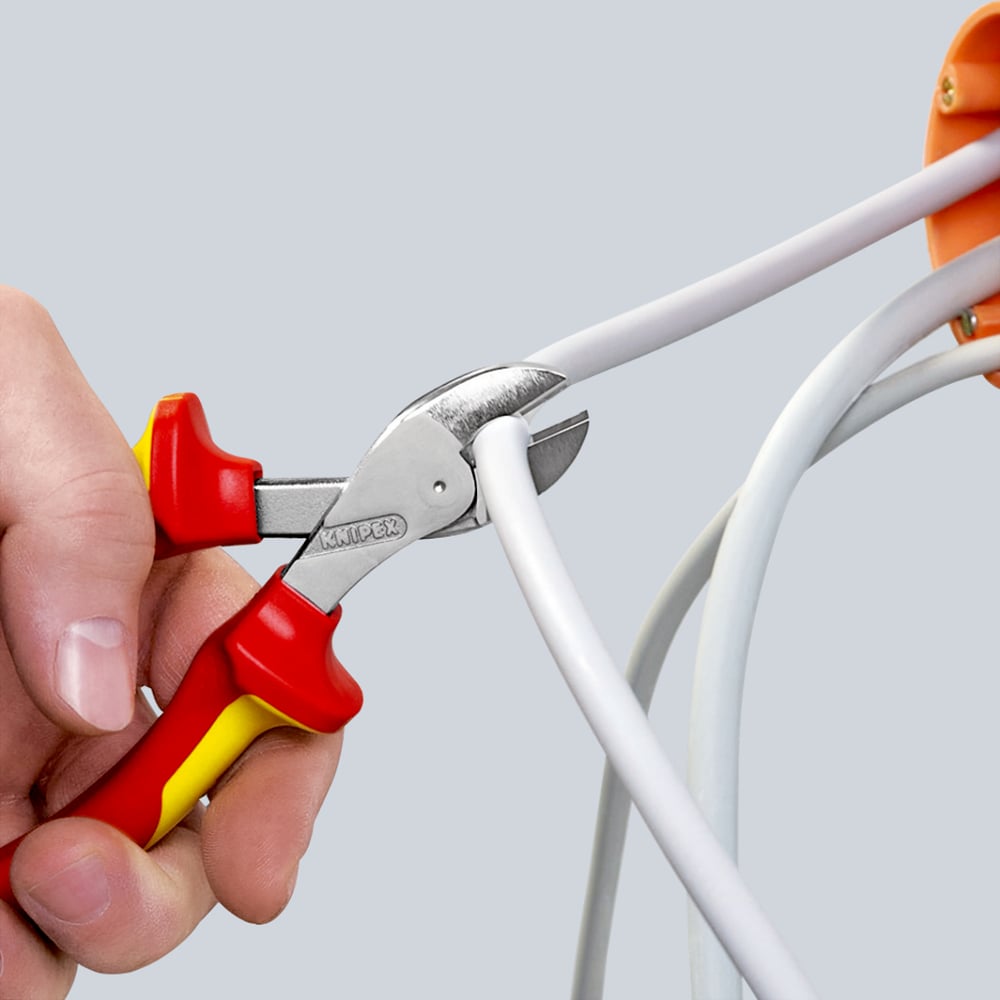

• Large opening width for thicker cables

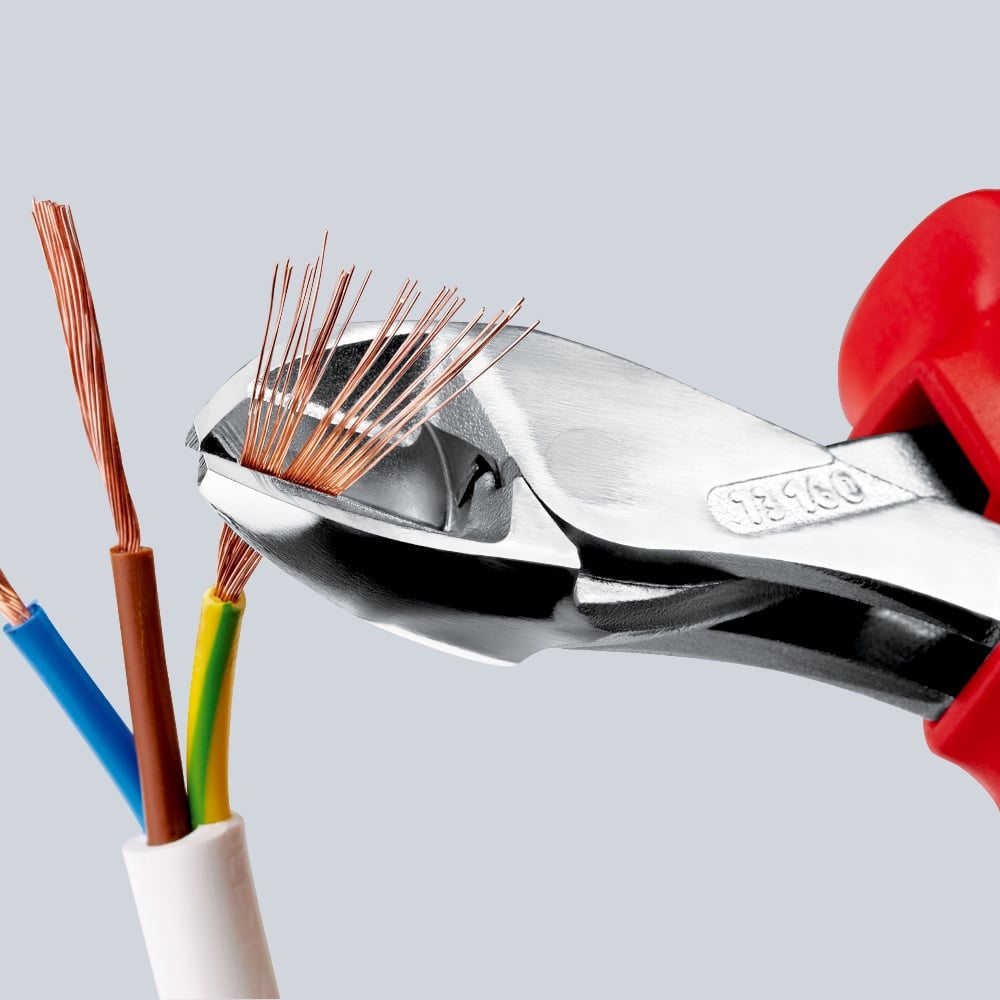

• Cuts precisely, even through fine copper wires
• Compact, low-weight construction
• Universally usable, in the assembly, maintenance and production
• 40% less force required compared with standard diagonal cutters of the same length
Technical attributes
| Part No. | 73 02 160 SB |
|---|---|
| EAN | 4003773075349 |
| Pliers | black atramentized |
| Head | polished |
| Handles | with multi-component handles |
| Weight | 195 g |
| Dimensions | 160 x 85 x 20 mm |
| Standard | DIN ISO 5749 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities soft wire (diameter) | Ø 4 mm |
| Cutting capacities medium hard wire (diameter) | Ø 3.8 mm |
| Cutting capacities hard wire (diameter) | Ø 2.7 mm |
| Cutting capacities piano wire (diameter) | Ø 2.2 mm |
| Cutting capacity copper cable, multiple-stranded | Ø 12.0 mm |
