73 02 160 SB
KNIPEX X-Cut®

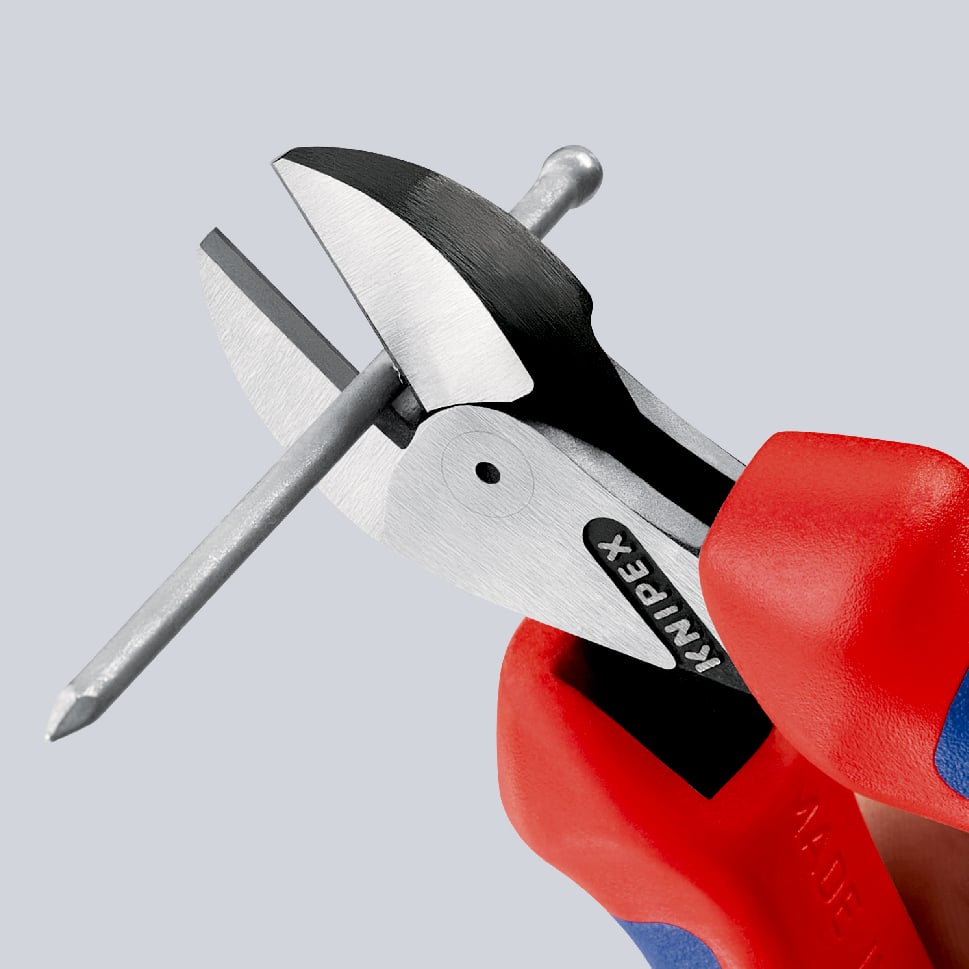

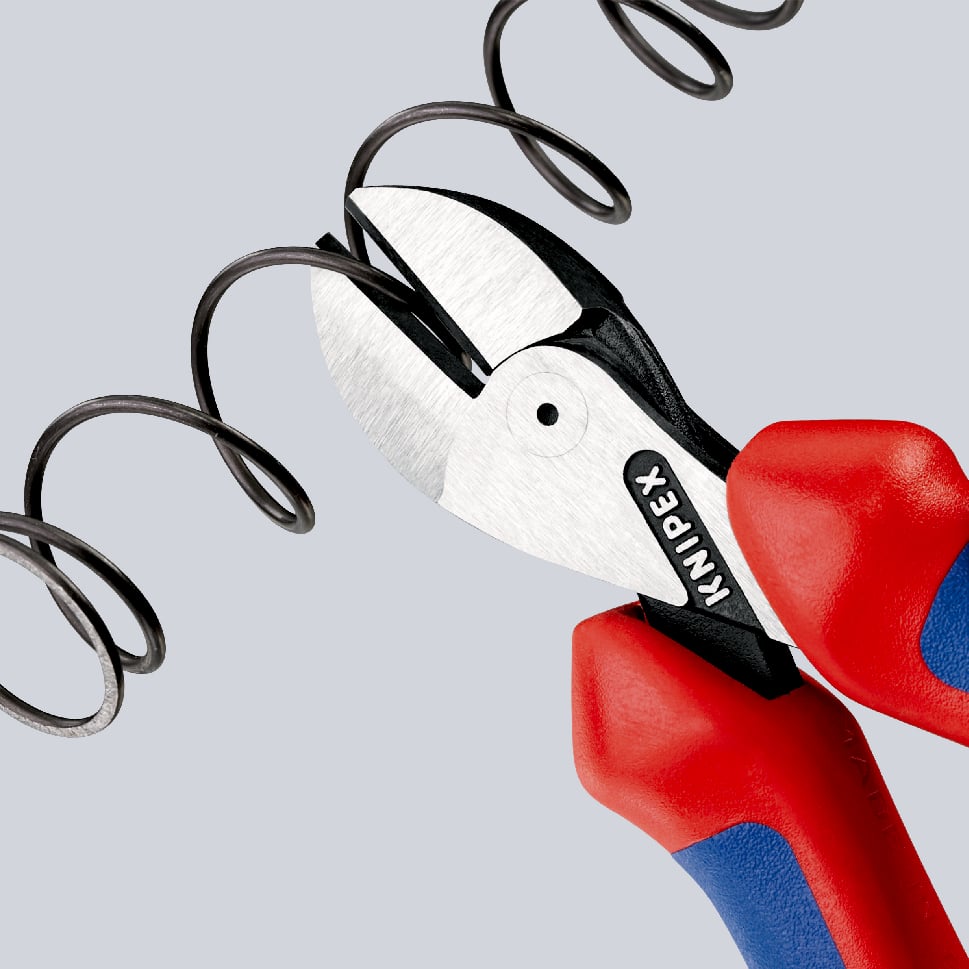

• Cuts finest strands as well as multi-core cables and piano wires
• Powerful, light and universal
• High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
• Box-joint design: highest stability with low weight
• Doubly supported joint axis for heavy duty
• Large opening width for thicker cables

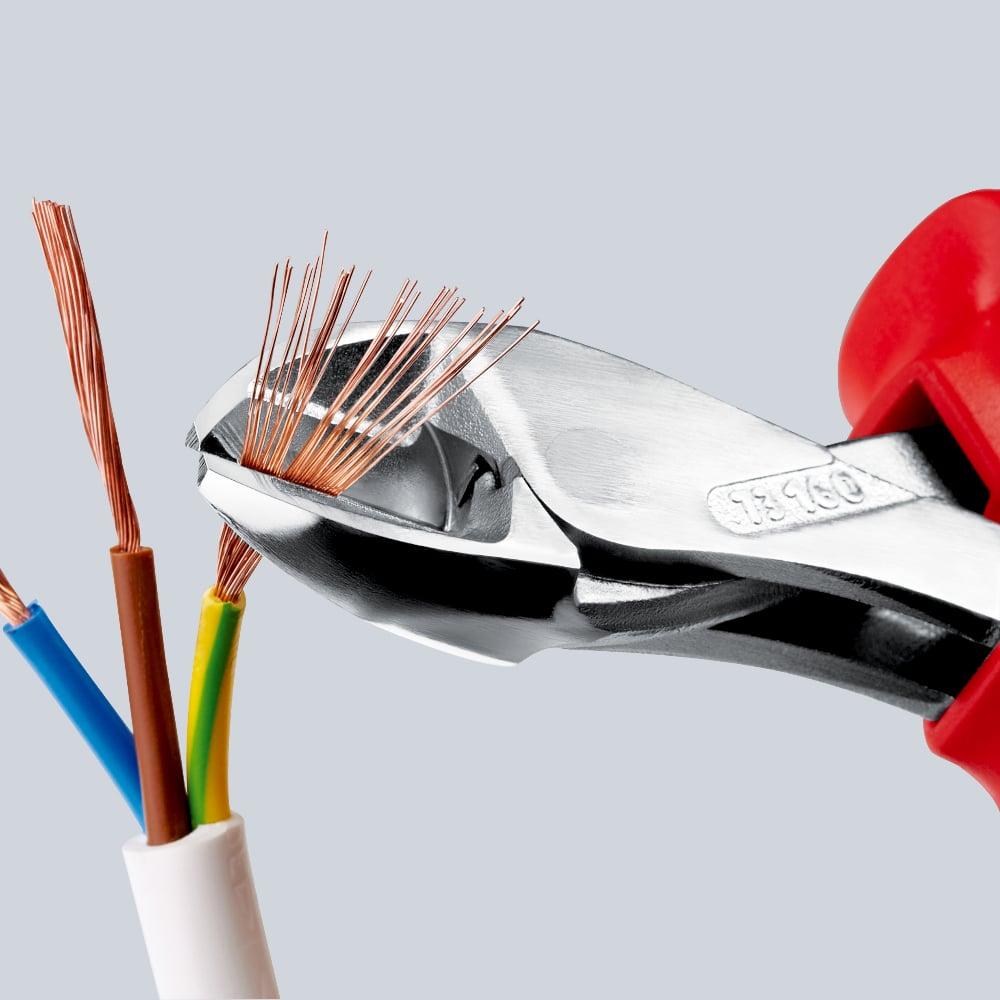

• Cuts precisely, even through fine copper wires
• Compact, low-weight construction
• Universally usable, in the assembly, maintenance and production
• 40% less force required compared with standard diagonal cutters of the same length

Technical attributes

Part No. 73 02 160 SB
EAN 4003773075349
Pliers black atramentized
Head polished
Handles with multi-component handles
Weight 195 g
Dimensions 160 x 85 x 20 mm
Standard DIN ISO 5749
REACH compliant does not contain SVHC
RoHS compliant not applicable
Cutting capacities soft wire (diameter) Ø 4 mm
Cutting capacities medium hard wire (diameter) Ø 3.8 mm
Cutting capacities hard wire (diameter) Ø 2.7 mm
Cutting capacities piano wire (diameter) Ø 2.2 mm
Cutting capacity copper cable, multiple-stranded Ø 12.0 mm
