71 82 950

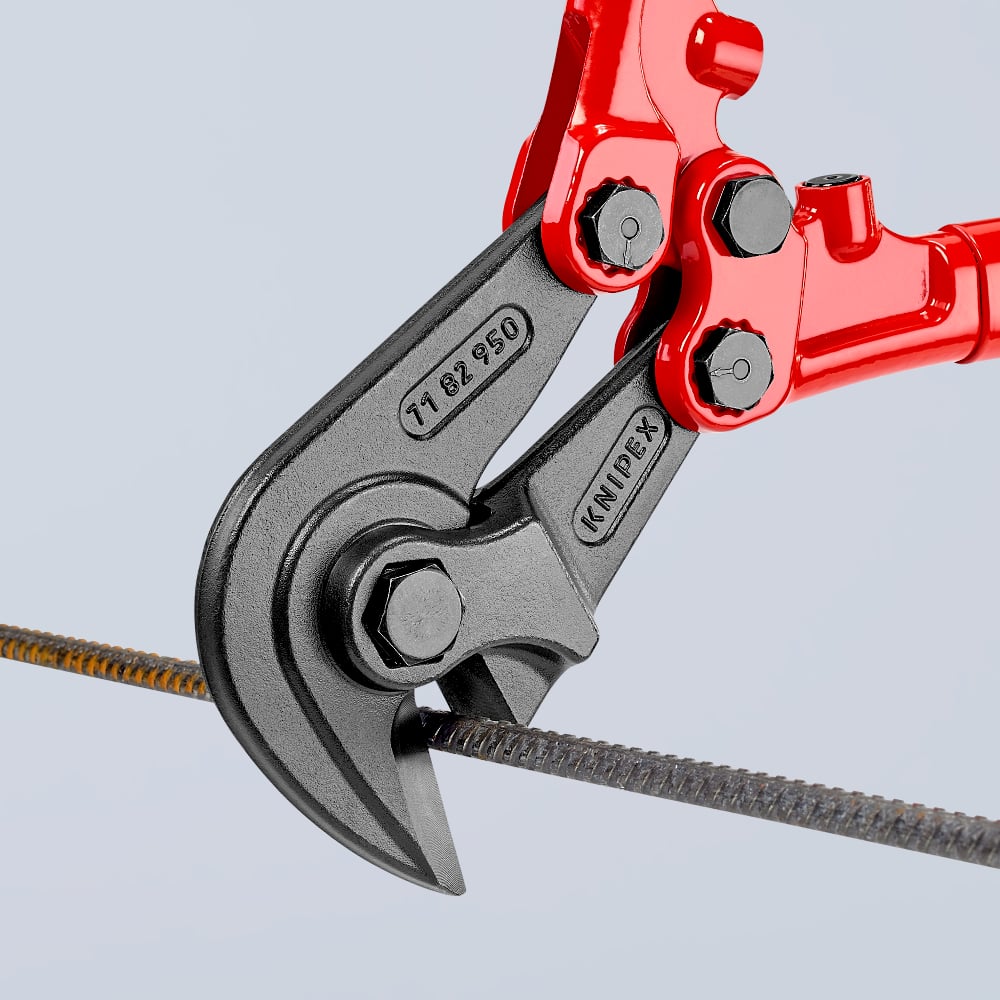

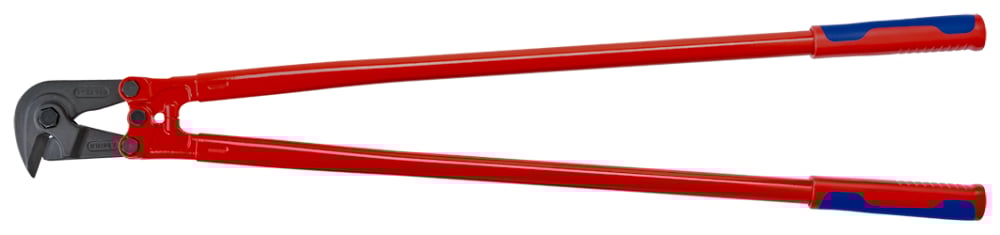

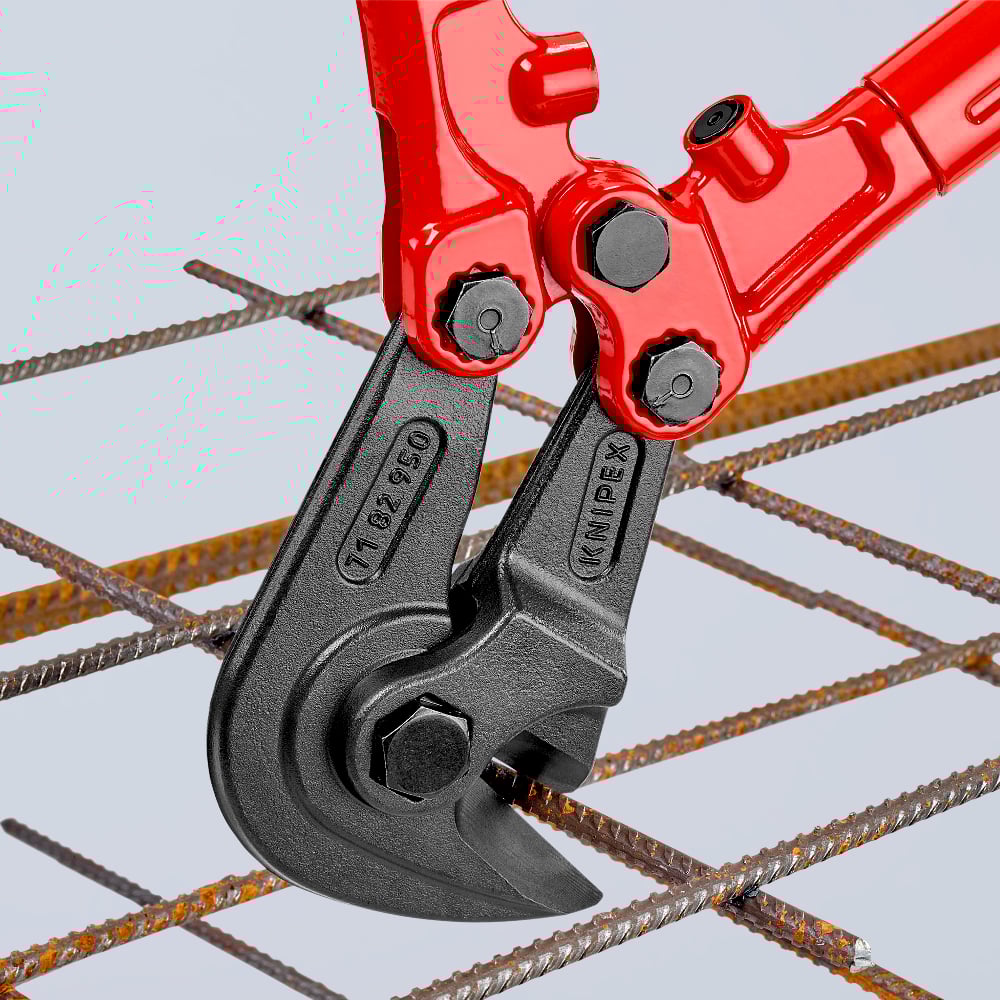

Concrete Mesh Cutter
• Cutting capacity up to 48 HRC hardness
• Robust cutting edges are additionally induction-hardened, cutting edge hardness approx. 62 HRC
• Forged-in stopper with comfortable shock- absorber
• Good access due to very flat construction of head and joint area
• Sturdy non-slip two-colour multi-component handle sleeves
• Precise adjustment (12 positions) by eccentric bolt
• High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
• Bolted cutter head, replaceable
Technical attributes
| Part No. | 71 82 950 |
|---|---|
| EAN | 4003773066798 |
| Head | grey atramentized |
| Handles | with multi-component handles |
| Weight | 4,110 g |
| Dimensions | 950 x 180 x 40 mm |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| HRC 19 | Ø 11 mm |
| HRC 40 | Ø 9 mm |
| HRC 48 | Ø 6 mm |
| Cutting edge length mm | 44 mm |
| Head thickness | 40 mm |
