71 72 610
Bolt Cutter

• Cutting capacity up to 48 HRC hardness
• Robust cutting edges are additionally induction-hardened, cutting edge hardness approx. 62 HRC
• Forged-in stopper with comfortable shock- absorber
• Good access due to very flat construction of head and joint area
• Ergonomically angled handles to minimise effort
• Sturdy non-slip two-colour multi-component handle sleeves
• Precise adjustment (12 positions) by eccentric bolt
• High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio

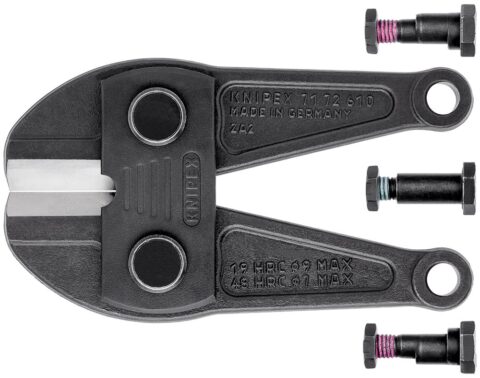

• Bolted cutter head, replaceable

Technical attributes

Part No. 71 72 610
EAN 4003773066767
Head grey atramentized
Handles with multi-component handles
Weight 2,550 g
Dimensions 610 x 122 x 34 mm
REACH compliant does not contain SVHC
RoHS compliant not applicable
HRC 19 Ø 9 mm
HRC 40 Ø 8 mm
HRC 48 Ø 7 mm
Cutting edge length mm 34 mm
Head thickness 33 mm
