64 72 120

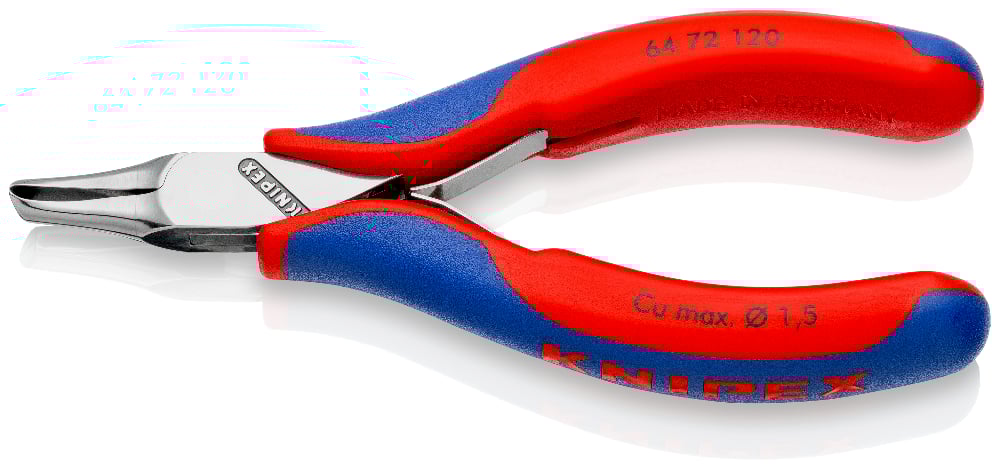

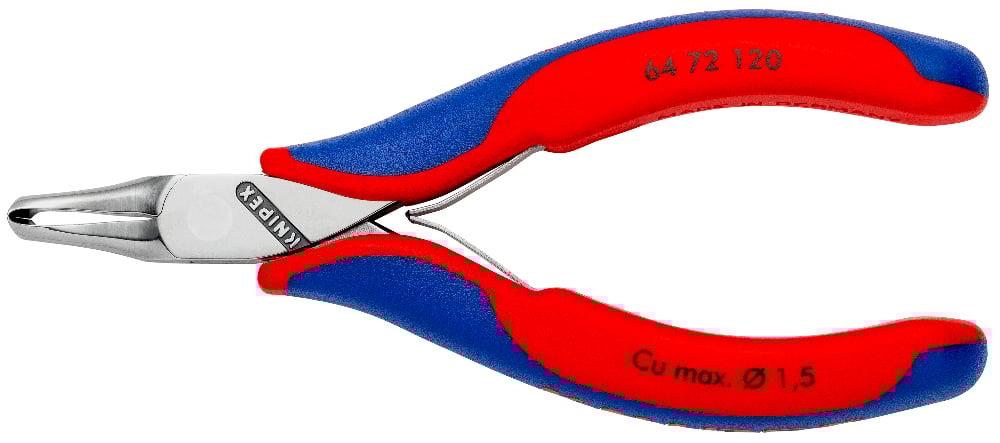

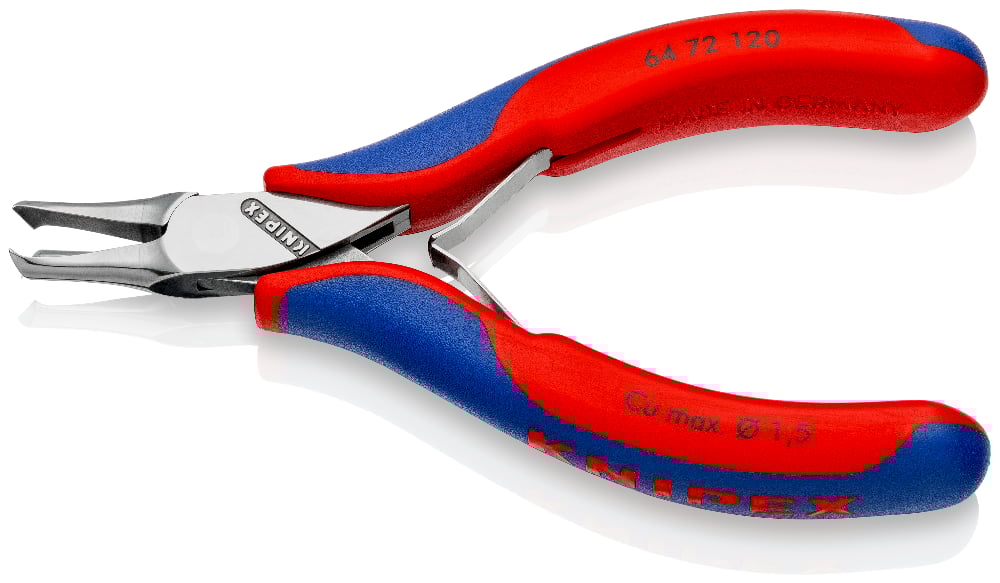

Electronics End Cutting Nipper

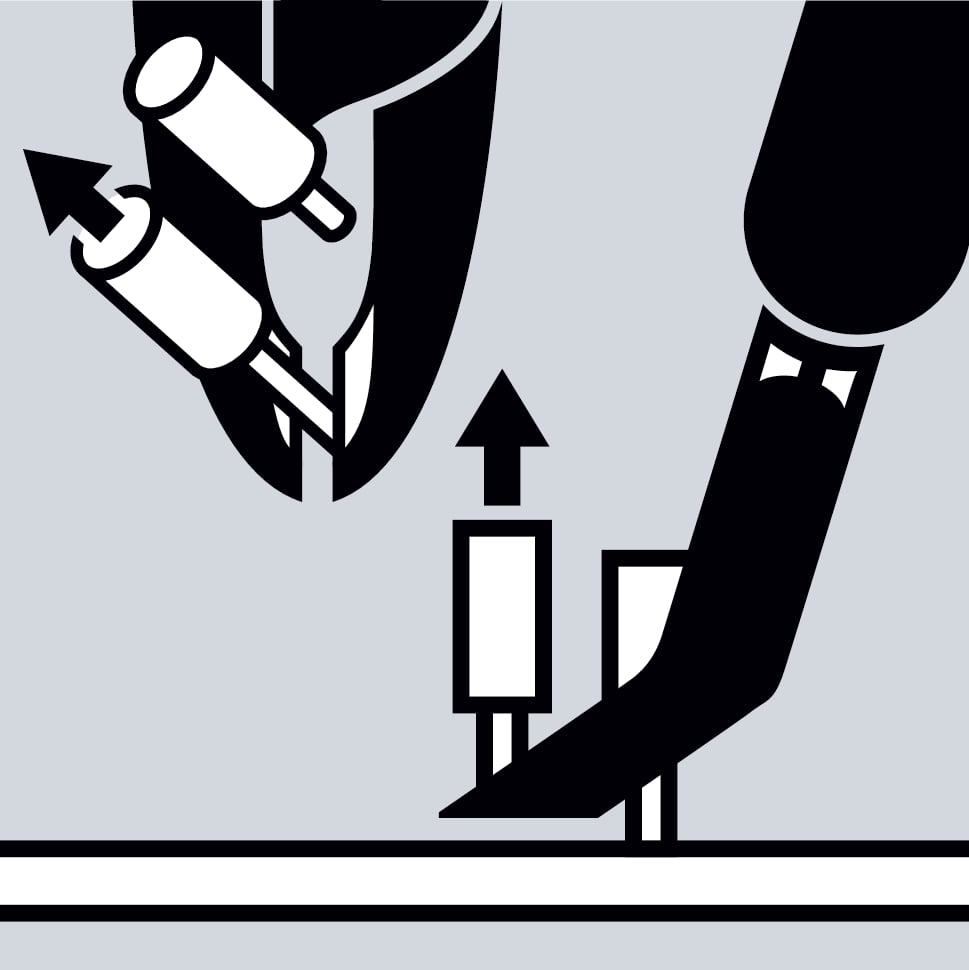

• Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
• Sturdy, zero backlash box joint
• Low-friction double spring for smooth and even opening
• The polish or mirror polish together with a fine film of oil offer effective rust protection – no circuit faults caused by peeling chrome from plated tools
• Cutting edges additionally laser-hardened, cutting edge hardness approx. 56 HRC

Technical attributes

Part No. 64 72 120
EAN 4003773017882
Head mirror polished
Handles with multi-component handles
Weight 70 g
Dimensions 120 x 67 x 17 mm
Standard DIN ISO 9654
REACH compliant does not contain SVHC
RoHS compliant not applicable
Head width (A) 11 mm
Jaw length (B) 20 mm
Jaw thickness (joint) (D) 7 mm
Cutting edge length mm (C) 6 mm
