64 22 115 ESD

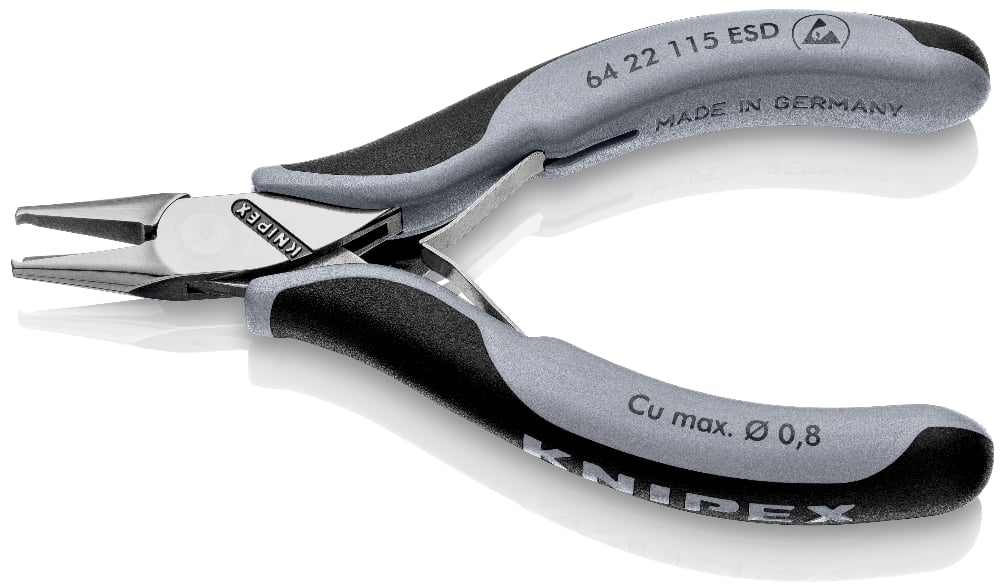

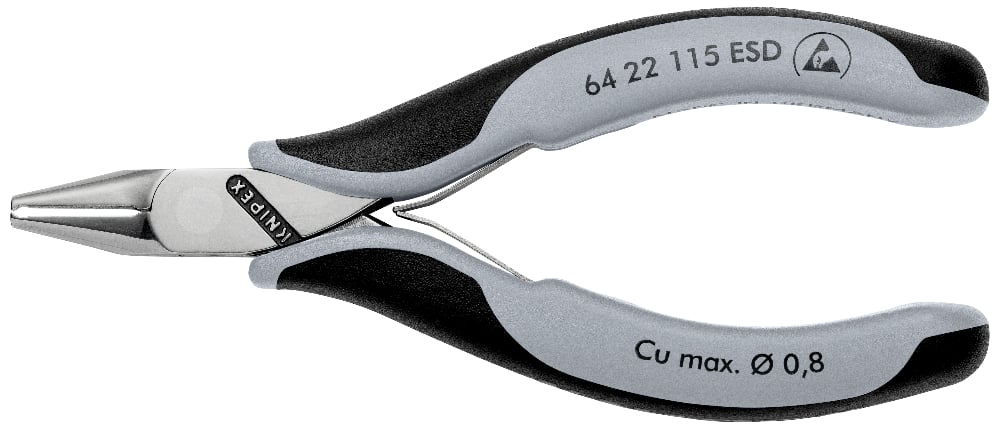

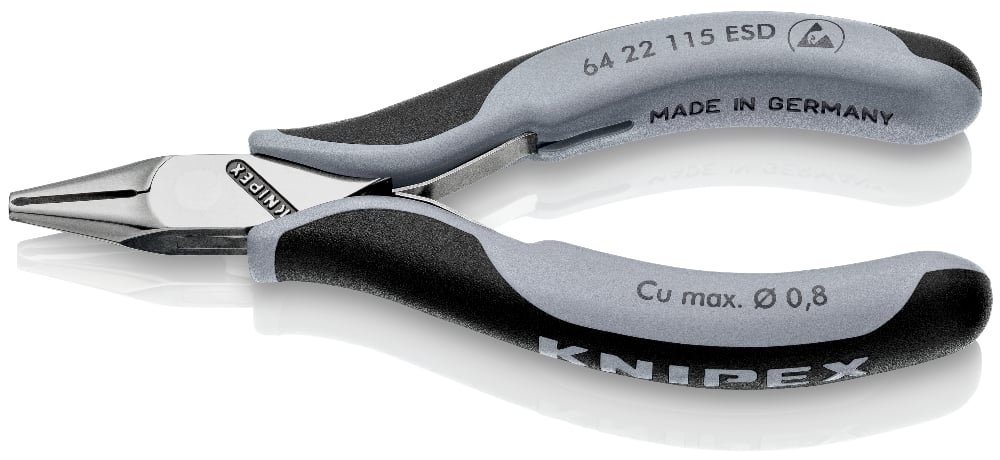

Electronics End Cutting Nippers ESD
• Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
• Electrically discharging handles – dissipative
• Sturdy, zero backlash box joint
• Low-friction double spring for smooth and even opening
• The mirror polish in combination with a fine oil film provides rust protection – no circuit faults caused by peeling chrome from plated tools
• Cutting edges additionally laser-hardened, cutting edge hardness approx. 56 HRC
• Handles with two-colour multi-component grips black/grey
Technical attributes
| Part No. | 64 22 115 ESD |
|---|---|
| EAN | 4003773025061 |
| Head | mirror polished |
| Handles | with multi-component handles |
| Weight | 70 g |
| Dimensions | 115 x 69 x 18 mm |
| Standard | DIN ISO 9654 DIN EN 61 340-5 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Head width (A) | 11 mm |
| Jaw length (B) | 20 mm |
| Jaw thickness (joint) (D) | 6 mm |
| Cutting edge length mm (C) | 3 mm |
| ESD | yes |
