62 12 120

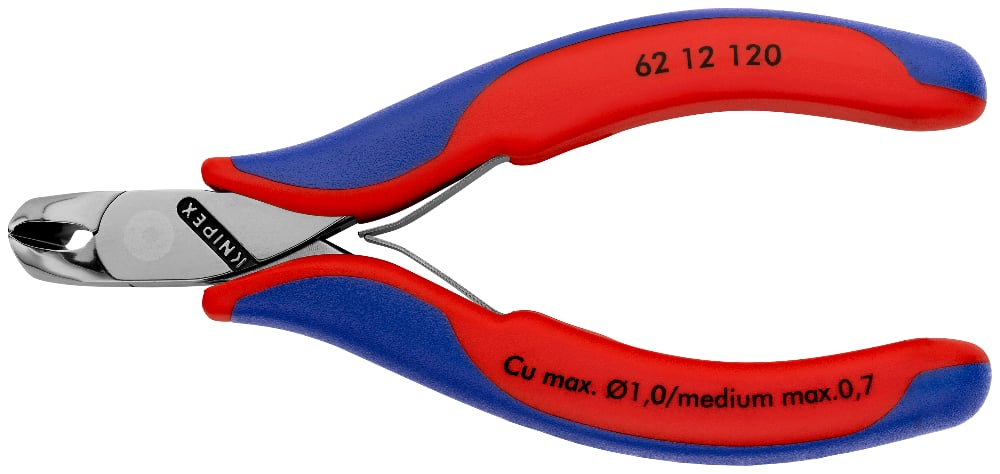

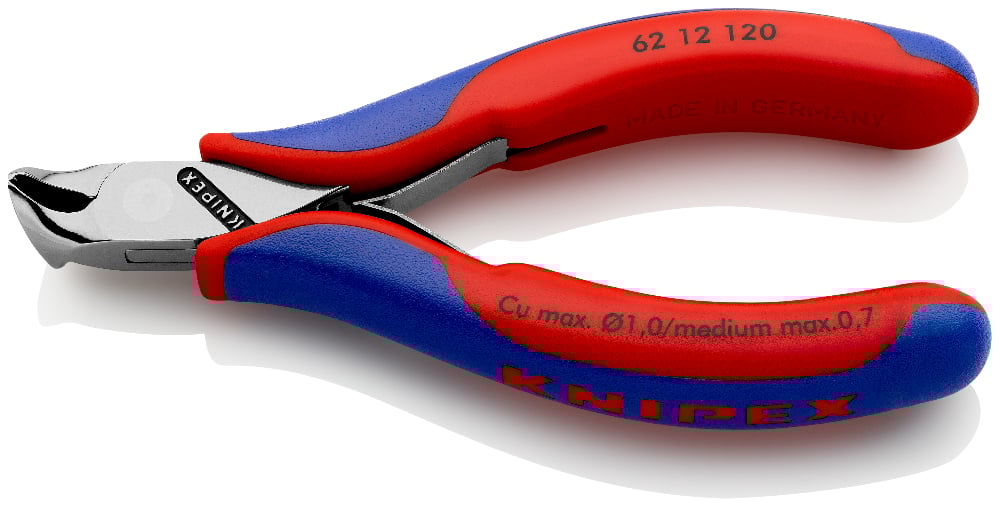

Electronics Oblique Cutting Nipper
• With cutting edges for soft and medium hard wire

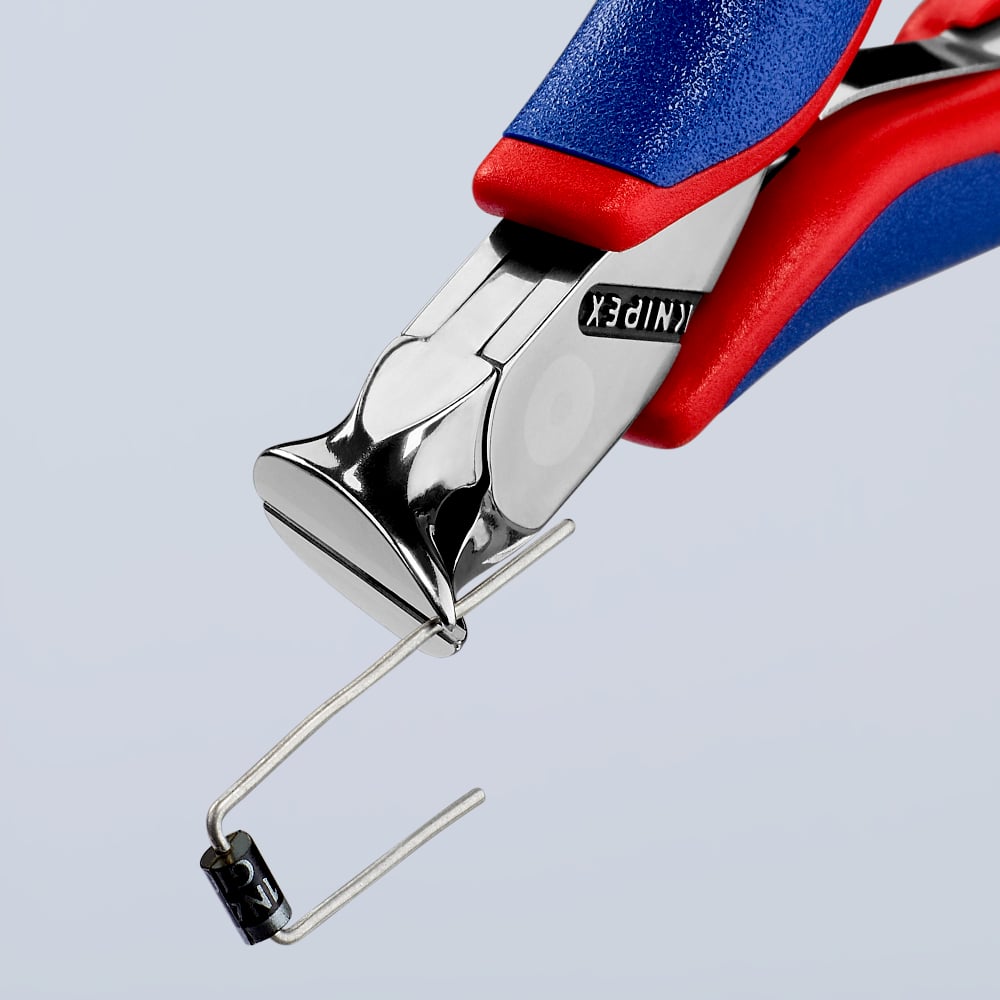

• Without bevel, for flush cutting
• Low-friction double spring for smooth and even opening
• Sturdy, zero backlash box joint
• The polish together with a fine film of oil offer effective rust protection – no circuit faults caused by peeling chrome from plated tools
• Cutting edges additionally laser-hardened, cutting edge hardness approx. 56 HRC
Technical attributes
| Part No. | 62 12 120 |
|---|---|
| EAN | 4003773048008 |
| Head | polished |
| Handles | with multi-component handles |
| Weight | 70 g |
| Dimensions | 120 x 67 x 17 mm |
| Standard | DIN ISO 9654 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities soft wire (diameter) | Ø 01 mm |
| Cutting capacities medium hard wire (diameter) | Ø 0.7 mm |

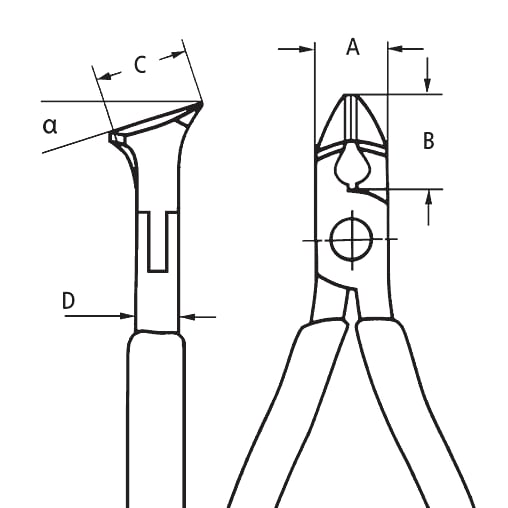

| Jaw length (B) | 10 mm |
| Jaw thickness (joint) (D) | 7.5 mm |
| Cutting edge length mm (C) | 17 mm |
| Head width (A) | 11 mm |
Documents
Spare Parts
KNIPEX Quality — Made in Germany
