38 11 200

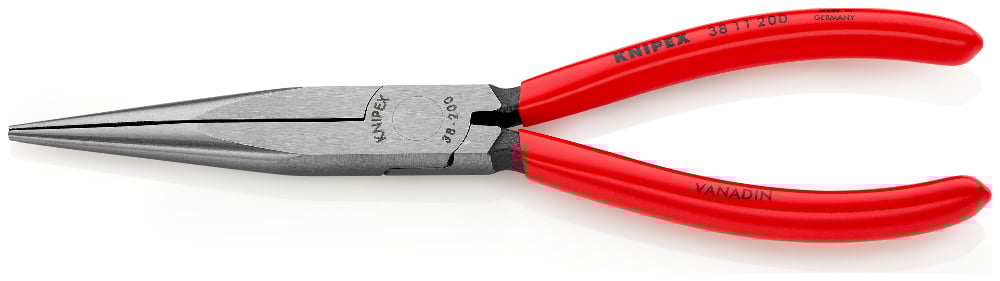

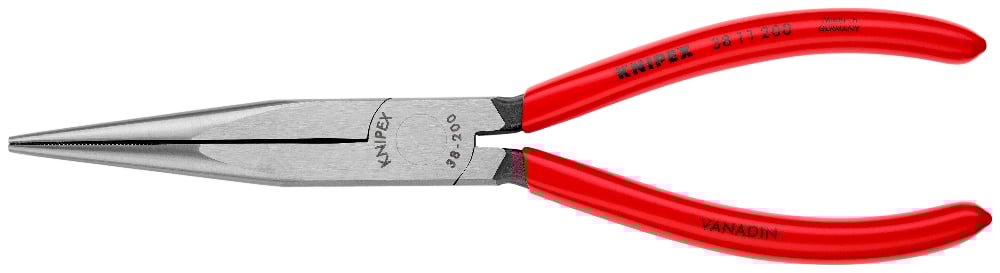

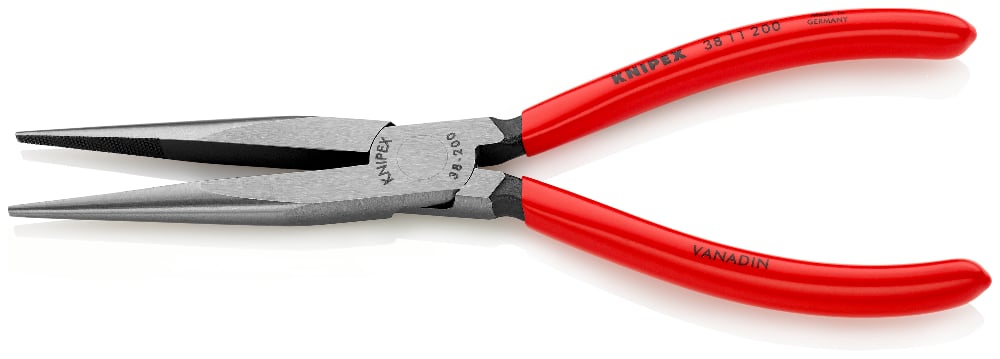

Mechanics’ Pliers
• High bending strength of the pliers tips
• Gripping surfaces cross-hatched
Technical attributes
| Part No. | 38 11 200 |
|---|---|
| EAN | 4003773035169 |
| Pliers | black atramentized |
| Head | polished |
| Handles | with plastic coating |
| Weight | 179 g |
| Dimensions | 200 x 53 x 13 mm |
| Standard | DIN ISO 5745 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |

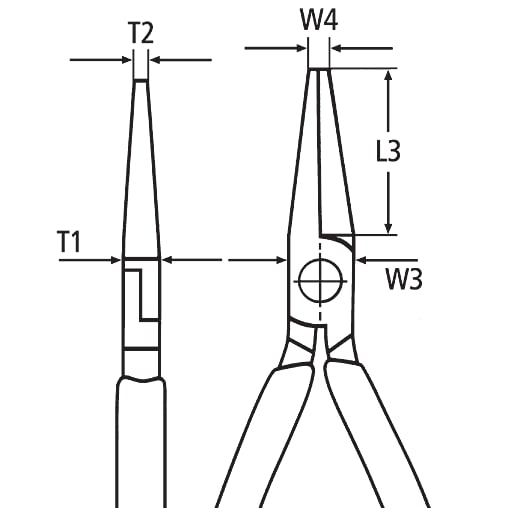

| Jaw thickness (joint) (T1) | 9.5 mm |
| Tips width (W4) | 3.0 mm |
| Tips thickness (T2) | 2.5 mm |
| Jaw length (L3) | 73.0 mm |
| Head width (W3) | 17.5 mm |
