36 12 130

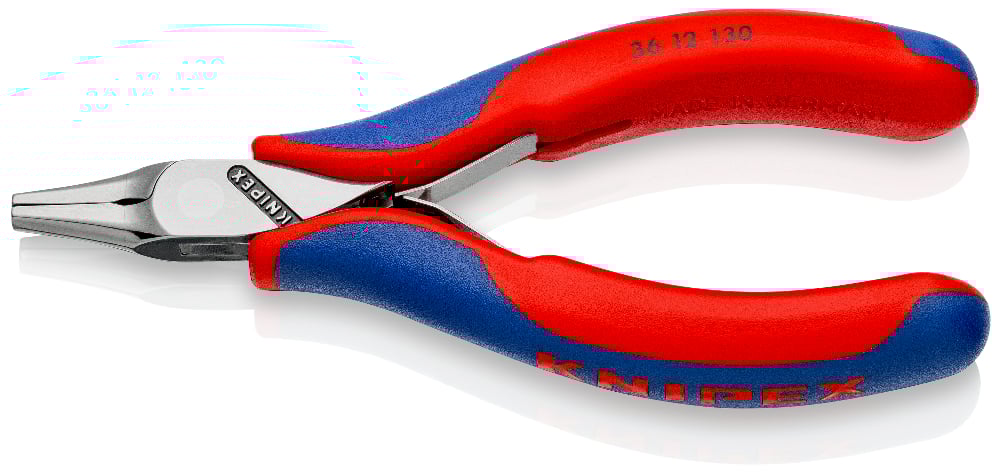

Electronics Mounting Pliers

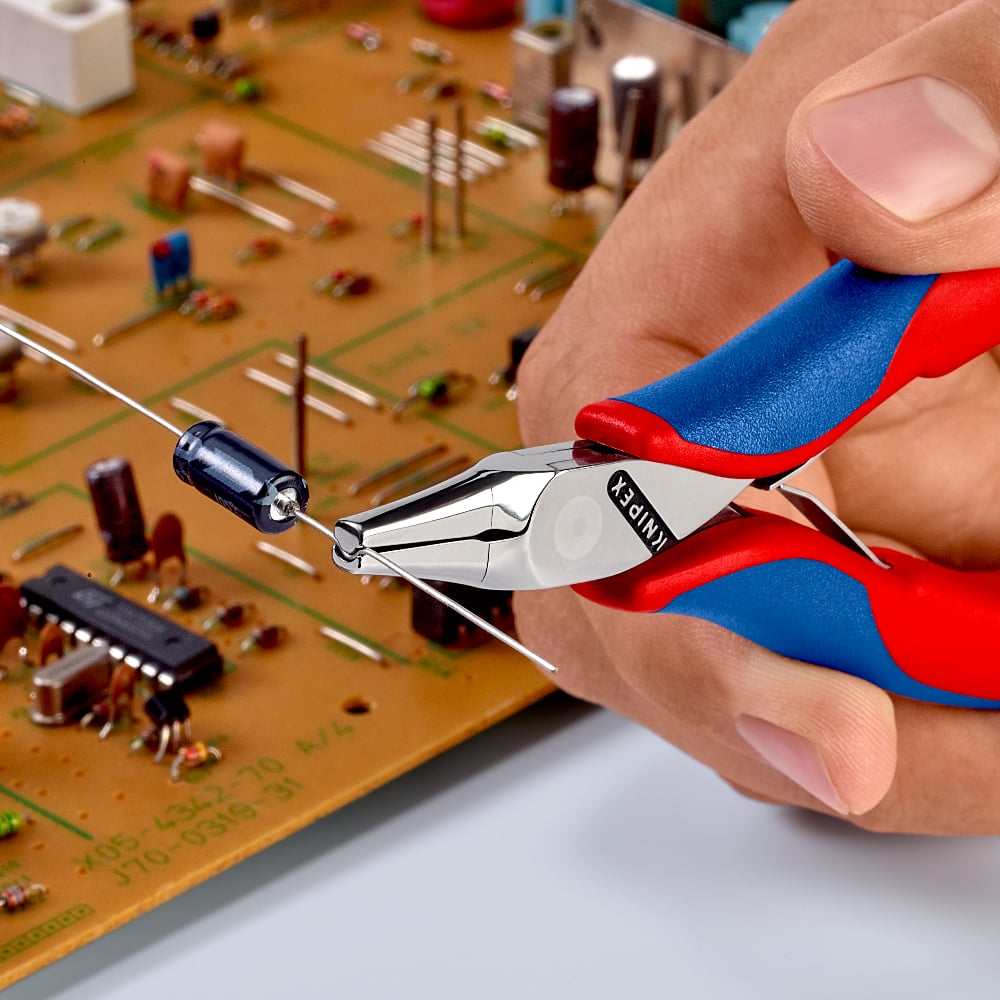

• For bending and cutting off wire ends on components
• Robust, load-optimized construction with through-pinned and backlash-free precision joint
• Side angles carefully rounded: no sharp, material-damaging edges
• High, slim sleeves for fine and comfortable gripping between thumb and index finger
• Uniform bending behavior for a more direct sense of work
• Smooth ground gripping surfaces, edges carefully deburred
• Low-friction double spring for smooth and even opening
• The mirror polish in combination with a fine oil film provides rust protection – no circuit faults caused by peeling chrome from plated tools

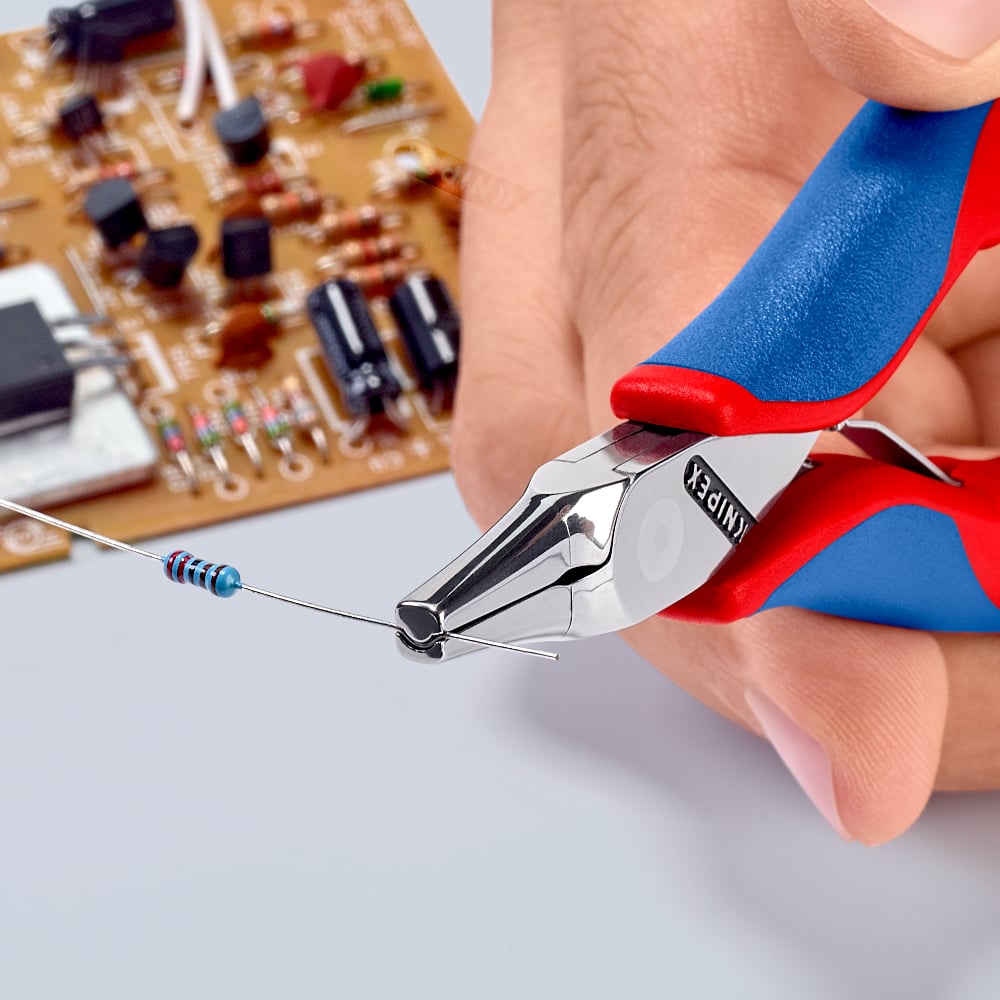

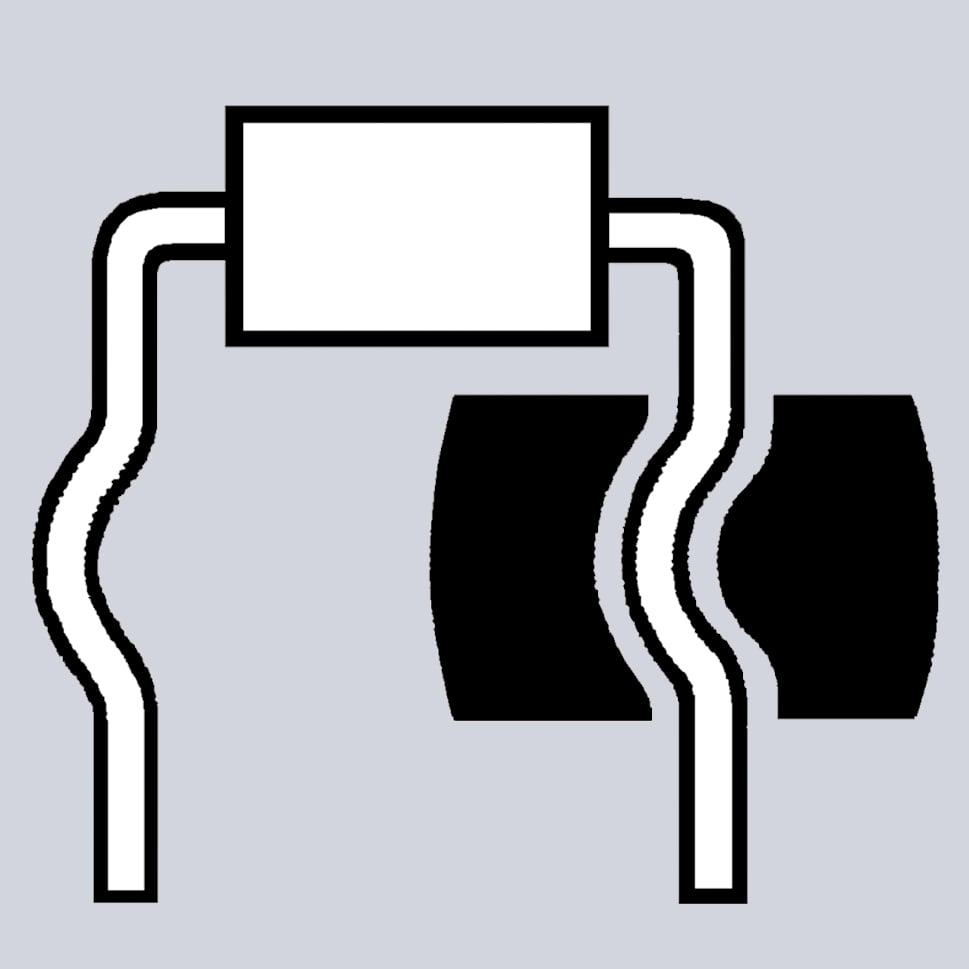

• To bend wire in shape for the distance to the board
Technical attributes
| Part No. | 36 12 130 |
|---|---|
| EAN | 4003773016861 |
| Head | mirror polished |
| Handles | with multi-component handles |
| Weight | 70 g |
| Dimensions | 130 x 68 x 17 mm |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Jaw thickness (joint) (T1) | 9.5 mm |
| Tips thickness (W4) | 6.0 mm |
| Head width (W3) | 12.0 mm |
| Handle width | 5.5 mm |
| Jaw length (L3) | 23.0 mm |
| Application | bend wire shape |
