35 82 145

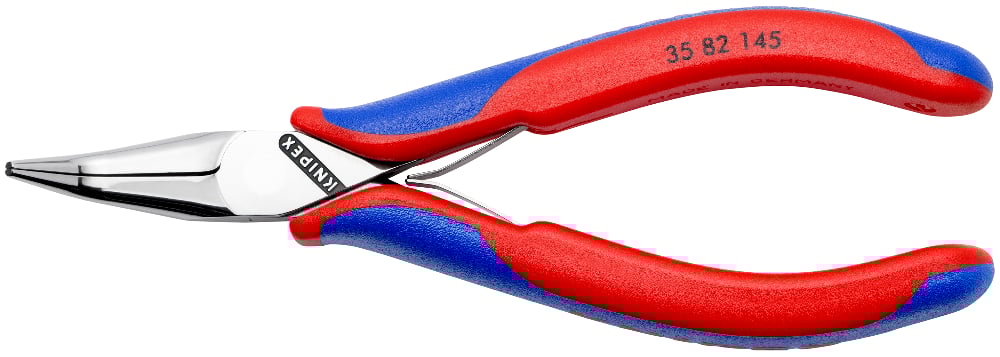

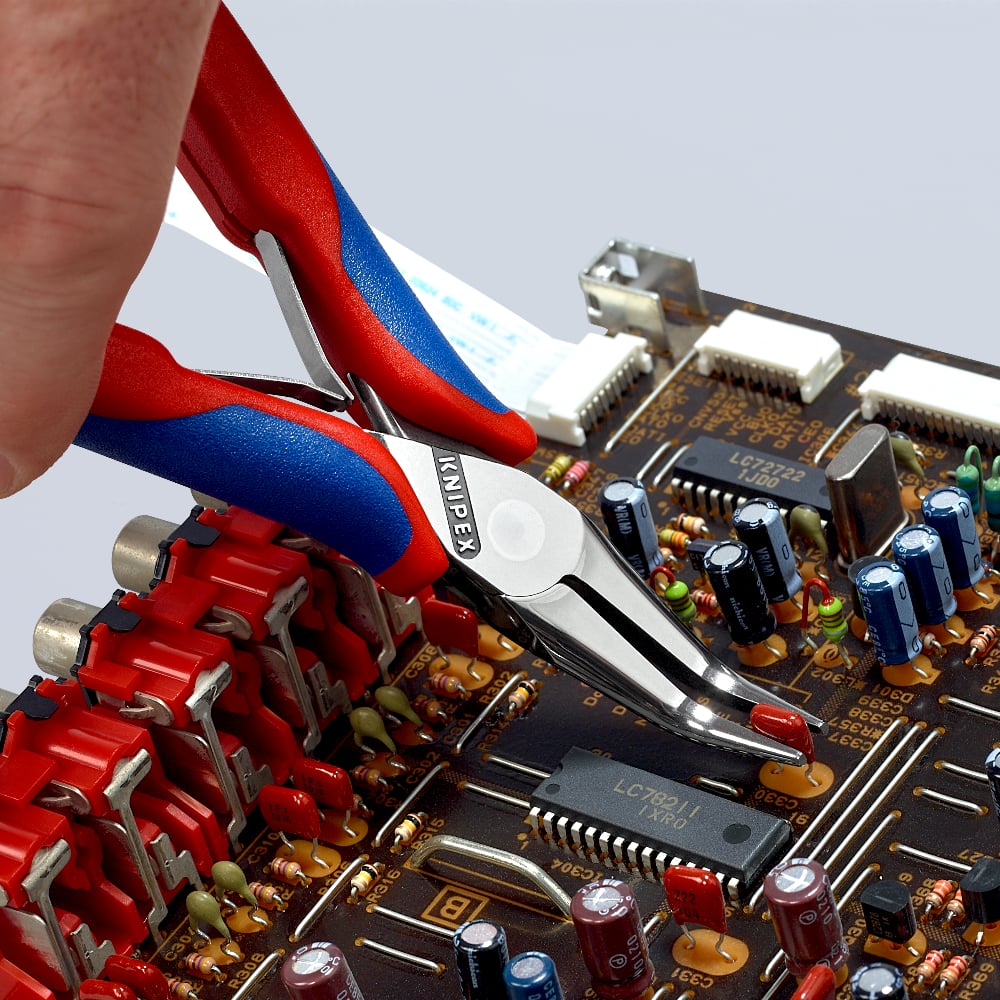

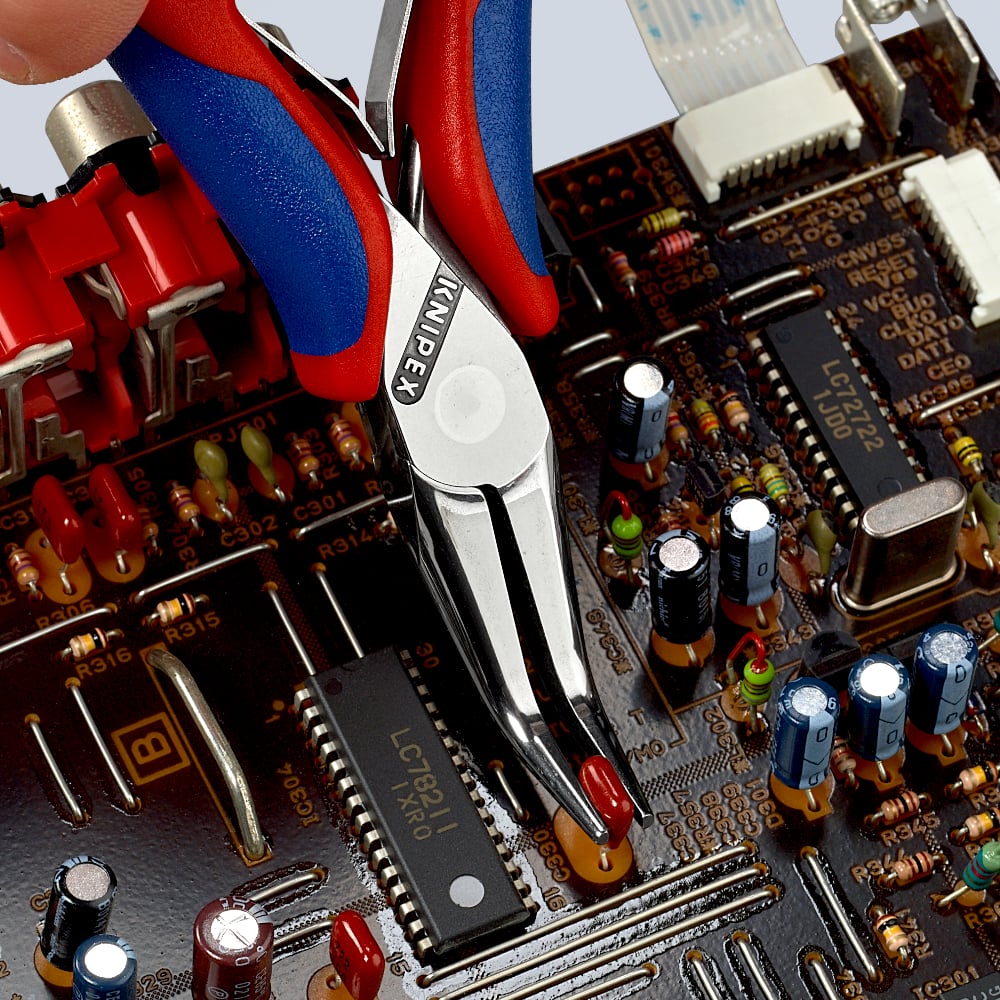

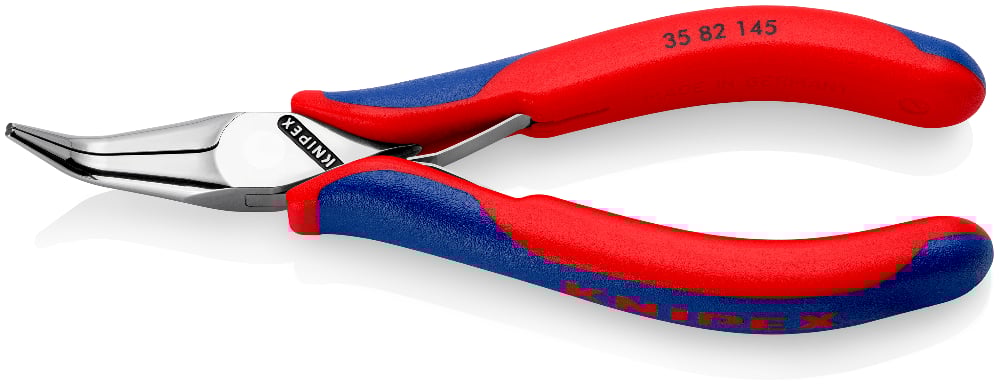

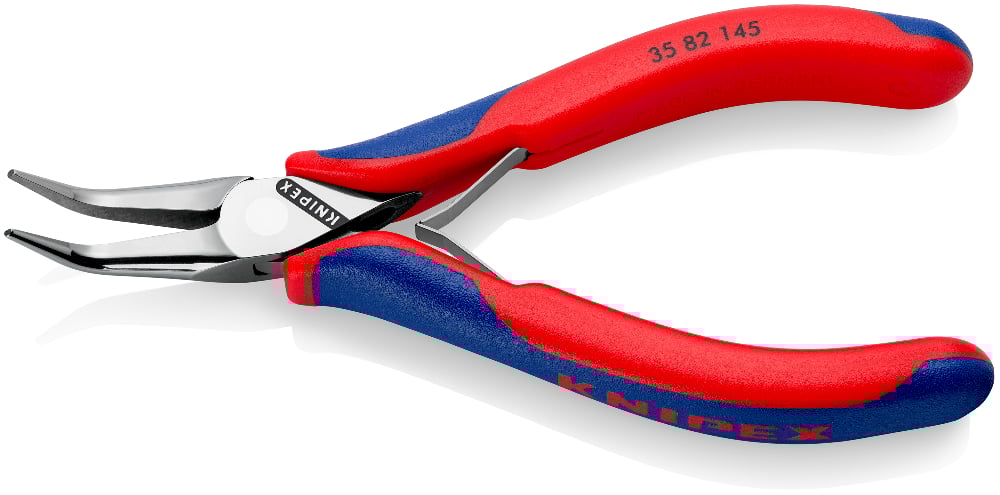

Electronics Pliers

• Durable, load-optimised design with backlash-free box joint
• Head carefully rounded: no sharp edges that could damage the material
• High, slim sleeves for fine and comfortable gripping between thumb and index finger
• Uniform bending behavior for a more direct sense of work
• Smoothly ground gripping surfaces for damage-free gripping
• Low-friction double spring for smooth and even opening
• The mirror polish in combination with a fine oil film provides rust protection – no circuit faults caused by peeling chrome from plated tools

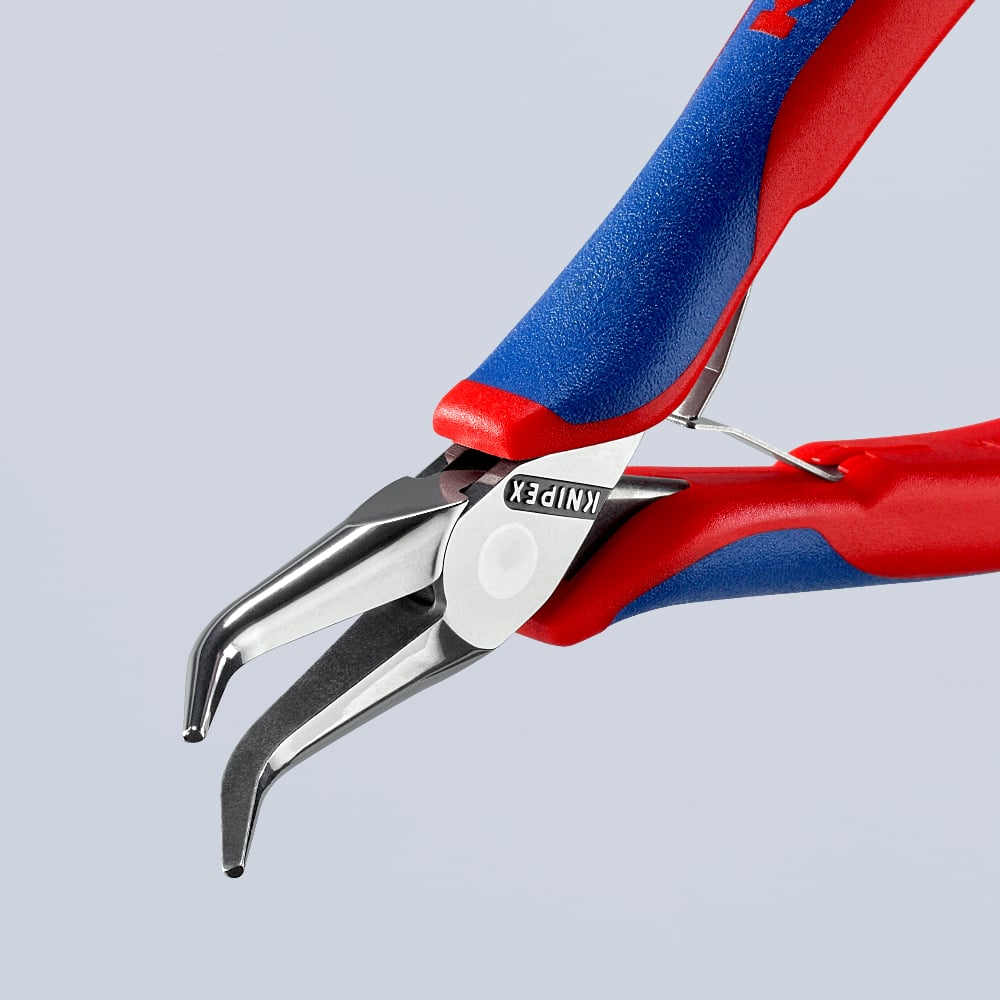

• 45° angled, half-round jaws, smoothly ground gripping surfaces

Technical attributes

Part No. 35 82 145
EAN 4003773039396
Head mirror polished
Handles with multi-component handles
Weight 86 g
Dimensions 145 x 69 x 17 mm
Standard DIN ISO 9655
REACH compliant does not contain SVHC
RoHS compliant not applicable
Jaw length (B) 31.1 mm
Jaw thickness (joint) (D) 8.5 mm
Tips width (E) 2.5 mm
Tips thickness (F) 1.8 mm
Head width (A) 13.0 mm
