35 52 145

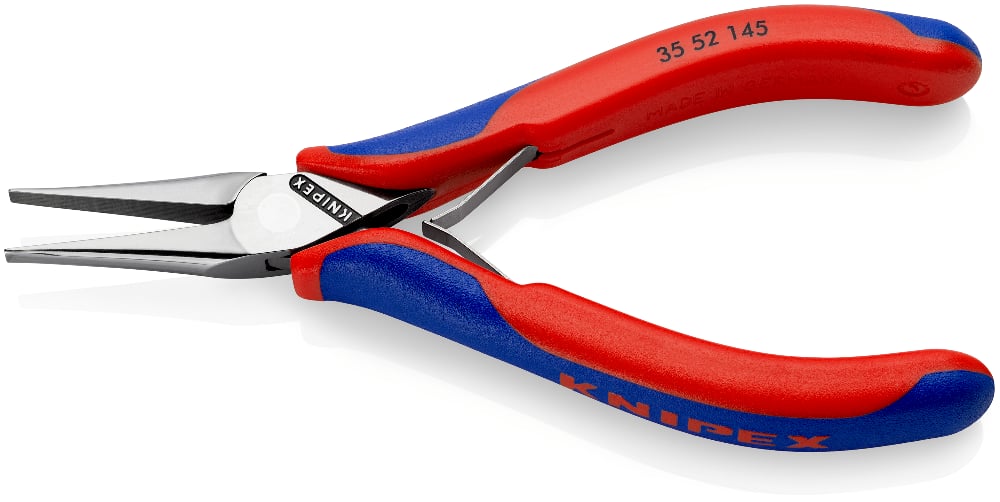

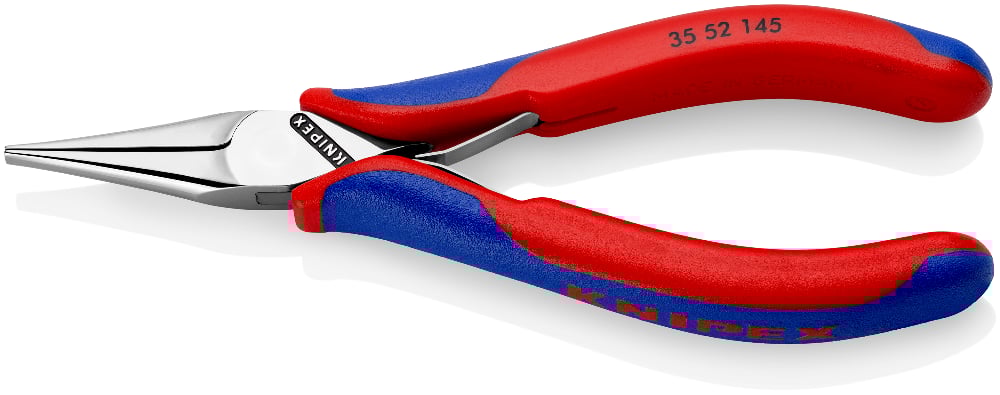

Electronics Pliers
• Durable, load-optimised design with backlash-free box joint
• Head carefully rounded: no sharp edges that could damage the material

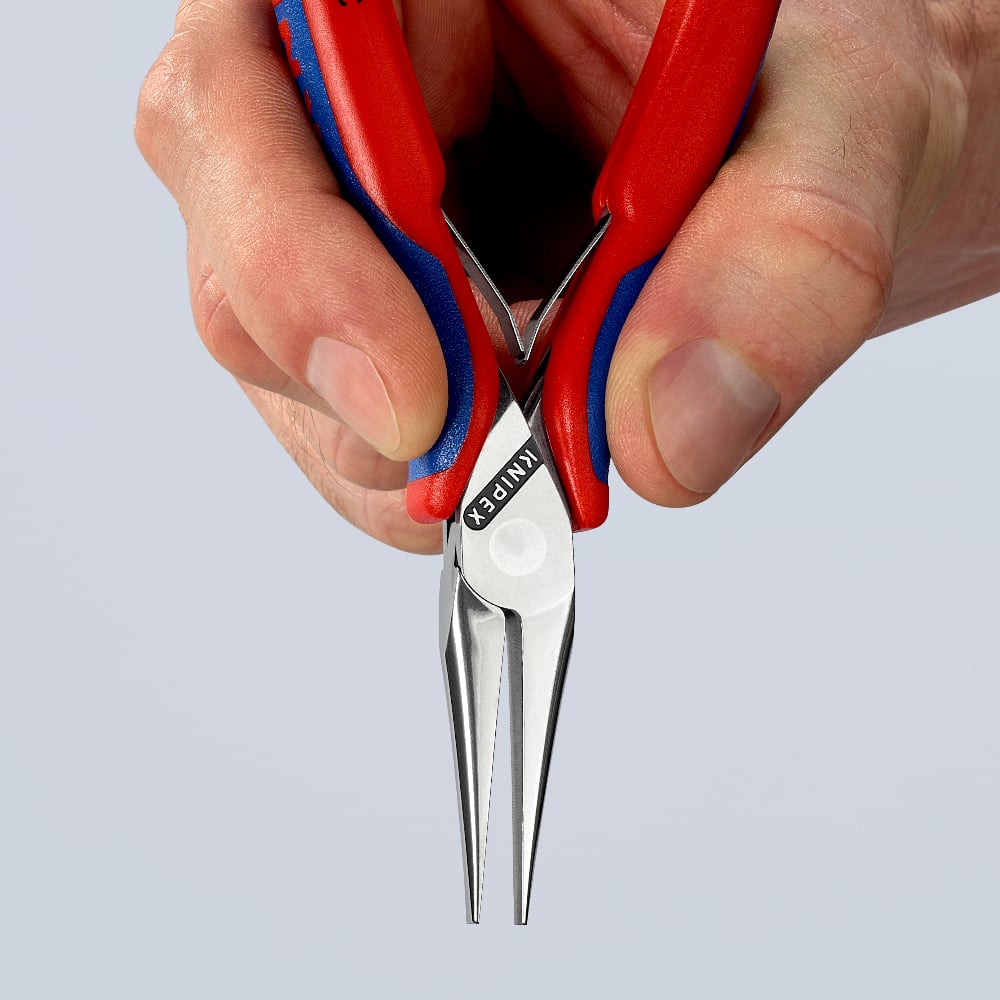

• High, slim sleeves for fine and comfortable gripping between thumb and index finger
• Uniform bending behavior for a more direct sense of work
• Smoothly ground gripping surfaces for damage-free gripping
• Low-friction double spring for smooth and even opening
• The mirror polish in combination with a fine oil film provides rust protection – no circuit faults caused by peeling chrome from plated tools

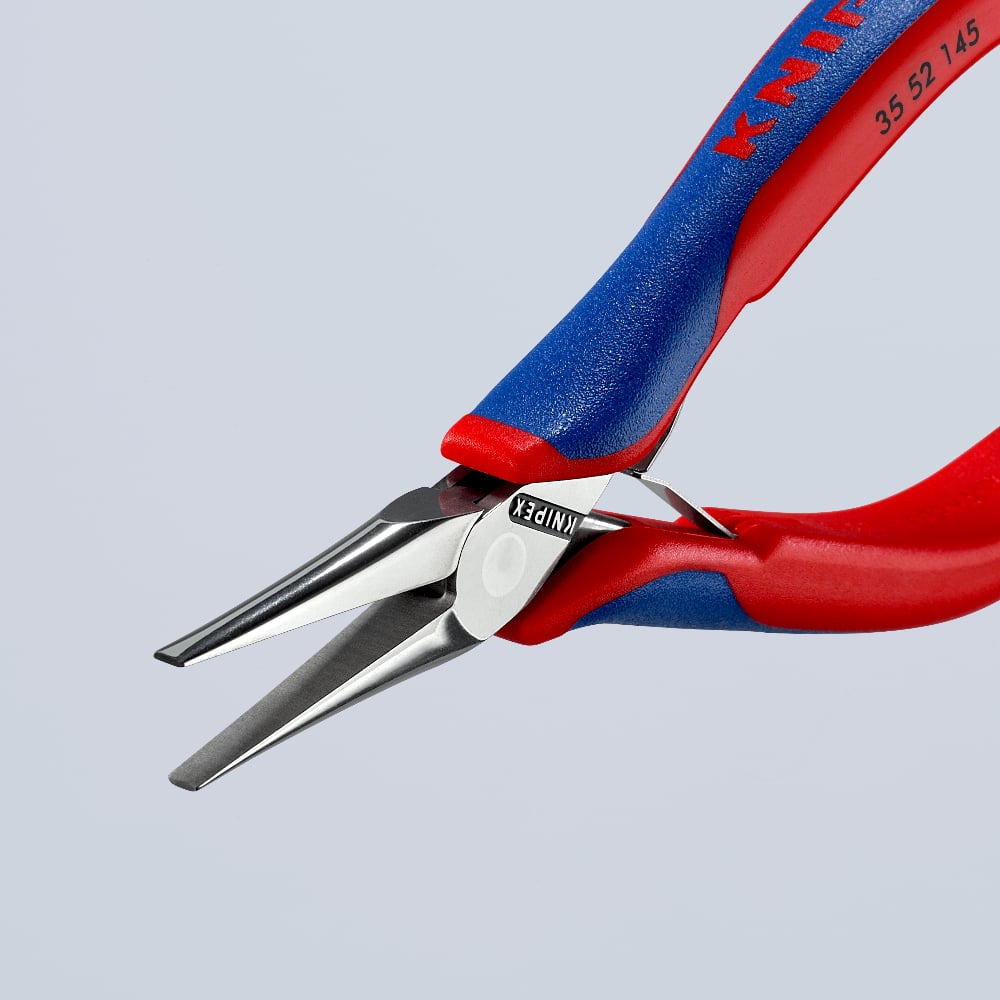

• Flat, wide jaws, smoothly ground gripping surfaces
Technical attributes
| Part No. | 35 52 145 |
|---|---|
| EAN | 4003773039389 |
| Head | mirror polished |
| Handles | with multi-component handles |
| Weight | 86 g |
| Dimensions | 145 x 53 x 17 mm |
| Standard | DIN ISO 9655 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Jaw length (B) | 34.1 mm |
| Jaw thickness (joint) (D) | 8.5 mm |
| Tips width (E) | 2.5 mm |
| Tips thickness (F) | 1.8 mm |
| Head width (A) | 13.0 mm |
