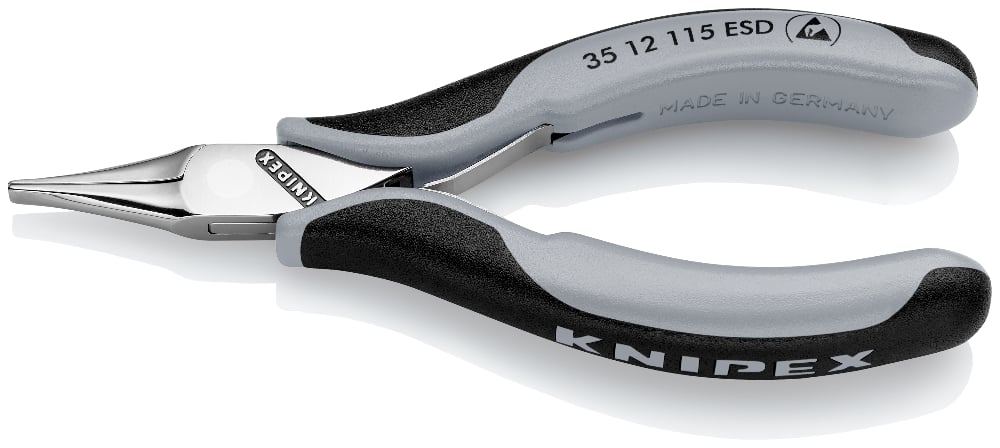

35 12 115 ESD
Electronics Pliers ESD
• Robust, load-optimized construction with through-pinned and backlash-free precision joint
• Head carefully rounded: no sharp edges that could damage the material
• Electrically discharging handles – dissipative
• High, slim sleeves for fine and comfortable gripping between thumb and index finger
• Uniform bending behavior for a more direct sense of work
• Smoothly ground gripping surfaces for damage-free gripping
• Low-friction double spring for smooth and even opening
• The mirror polish in combination with a fine oil film provides rust protection – no circuit faults caused by peeling chrome from plated tools
• Flat, wide jaws, smoothly ground gripping surfaces
Technical attributes
| Part No. | 35 12 115 ESD |
|---|---|
| EAN | 4003773024835 |
| Head | mirror polished |
| Handles | with multi-component handles |
| Weight | 70 g |
| Dimensions | 115 x 51 x 17 mm |
| Standard | DIN ISO 9655 DIN EN 61 340-5 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Jaw length (B) | 22.5 mm |
| Jaw thickness (joint) (D) | 6.5 mm |
| Tips width (E) | 2.0 mm |
| Tips thickness (F) | 4.0 mm |
| Head width (A) | 11.0 mm |
| ESD | yes |
